The JTV PTO series is one of the most versatile hydrovac truck and jetter machines on the market today.

Find A Dealer Request More Info

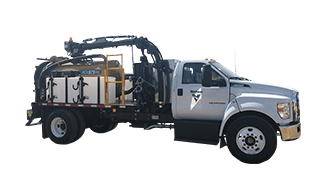

The jetter truck vac (JTV) 873 series is a PTO truck-driven system available on Ford chassis. This full line of JTV is available with an 800-gal (3,028.3-L) debris tank and 400 gal (1,514 L) of water. The PTO of the truck drives positive displacement vacuum blowers that produce 1,000 cfm (1,699 m3/hr) along with high-pressure jetter capabilities putting this truck in a league of its own.

The JTV PTO series is one of the most versatile hydrovac truck and jetter machines on the market today.

The jetter truck vac (JTV) 873 series is a PTO truck-driven system available on Ford chassis. This full line of JTV is available with an 800-gal (3,028.3-L) debris tank and 400 gal (1,514 L) of water. The PTO of the truck drives positive displacement vacuum blowers that produce 1,000 cfm (1,699 m3/hr) along with high-pressure jetter capabilities putting this truck in a league of its own. Find A Dealer Request More Info

Features & Benefits

Cyclone four-way valve silencer (CVS) filtration system

The CVS filter housing has a .5 micron filtration that contains the four-way valve for reverse pressure and an oversized silencer for quiet operation. The silencer is located inside the 28-in (71-cm) diameter cyclone.

Rear hydraulic claw door

Rear hydraulic claw door has an over-center locking mechanism for a no-fuss positive lock and unlock.

Jetter package

The 15-gpm (57-L/min) at 3,000 psi water pump with 425-ft x .5-in (129.5-m x 12.7-mm) jetter hose comes with an electric self-retracting hose reel.

Strong arm (option)

With 270-degree rotation, the strong arm supports the weight of the vacuum hose, and the roller head allows for ease of handling by allowing smooth, fluid movements and adjustments.

Hydraulic boom (option)

The hydraulic boom offers a full six-way function, wireless remote with vacuum valve operation, 330-degree rotation, remote water jet for ease of cleanout and a 5-in (12.7-cm) hose with quick connect to 4-in (10.2-cm) tooling.

PTO driven

All components are controlled from the truck, eliminating the extra weight, space and cost of the pony motor.

Specifications

Compare Models
  • Truck

    • Length 345 in (876.3 cm)
    • Width 102 in (259 cm)
    • Empty weight 16500 lb (7451.6 kg)
    • Height 120 in (305 cm) without boom
    • Gross Vehicle Weight Rating (GVWR) 26000 lb (11,793 kg)
    • Truck model Ford F-650
    • Engine model PTO driven
  • Truck - Option two

    • Length 345 in (876.3 cm)
    • Width 102 in (259 cm)
    • Empty weight 18000 lb (8165 kg)
    • Height 120 in (305 cm) without boom
    • Gross Vehicle Weight Rating (GVWR) 33000 lb (14969 kg)
    • Truck model Ford F-750
    • Engine model PTO driven
  • Water Tank Option

    • Water capacity 400 gal (1514 L)
    • Number of Tanks 2
    • High pressure pump flow rate 15 gpm (57 L/min)
    • High Pressure Pump 3000 psi (206.8 bar)
    • High pressure hose length 425 ft (130 m)
    • Low Water Shutoff Electric
  • Spoil Tank

    • Spoil tank capacity 800 gal (3028.3 L)
    • Door type Hydraulic
    • Tank Lift Type Scissor lift
  • Vacuum Option

    • Type of Filters Cartridge filter 0.5 microns
    • Hose length 30 ft (9 m)
    • Hose width/diameter 4 in (10.2 cm)
    • Vacuum 1000 cfm (28 cubic m/min)
    • Vacuum blower type PD blower
    • Vacuum Mercury 16 inHg (0.6 bar)
  • Control Panel Option

    • Controls Curbside
  • Boom option

    • Availability Optional
    • Weight 400 lb (181 kg)
    • Reach 15 ft (4.6 m)
    • Movement 330 deg
    • Remote Control Wireless
  • Jetter Pump

    • Water flow 15 gpm (57 L/min)
    • Water pressure 3000 psi (206.8 bar)
    • Jetter hose length 425 ft 129.5 m
    • Jetter hose diameter .5 in 1.3 cm
  • Options

    • Hot box Optional
    • Strong arm Optional
    • Recirculation kit Optional
    • Reverse Pressure Standard

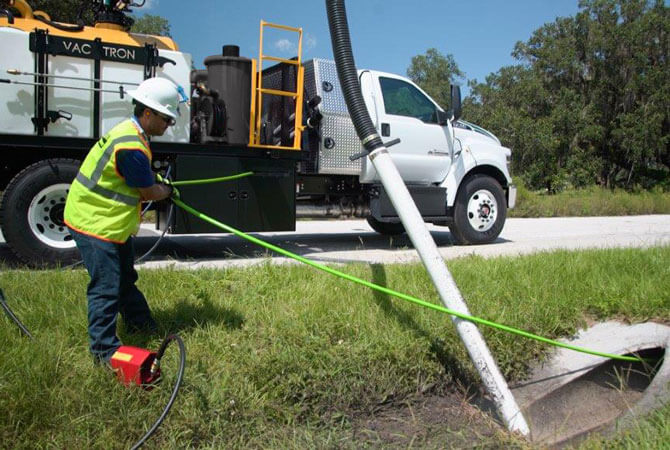

See it in action
