This powerful and productive third-generation vac has a modular design that allows for quick trailer or truck mounting.

Find A Dealer Request More Info
The ECO50 series is a powerful and productive vacuum excavator, equipped with a 4-in (10.2-cm) suction hose and 1,025-cfm (29-m³/min) blower. It is extremely useful for production pothole applications and drill fluid management. This third-generation Vermeer vacuum excavator features a 49-hp (36.5-kW) Tier 4 Final Kubota diesel engine and has a modular design allowing it to be skid- or truck-mounted.

This powerful and productive third-generation vac has a modular design that allows for quick trailer or truck mounting.

The ECO50 series is a powerful and productive vacuum excavator, equipped with a 4-in (10.2-cm) suction hose and 1,025-cfm (29-m³/min) blower. It is extremely useful for production pothole applications and drill fluid management. This third-generation Vermeer vacuum excavator features a 49-hp (36.5-kW) Tier 4 Final Kubota diesel engine and has a modular design allowing it to be skid- or truck-mounted. Find A Dealer Request More Info

Features & Benefits

Economical operation

Delivers fuel savings and has minimized maintenance costs compared to truck engine services. Offers the versatility to mount on new or used truck chassis or on off-road crawler carriers.

Cam-over rear door

Provides a 360-degree positive seal, even under reverse pressure without additional clamping requirements. The highly reliable cam-over door has no in-tank moving parts, so all maintenance is external.

Three-stage cyclonic filtration

Engineered to help prolong filter and blower life, the system is suitable for wet and dry applications. The cyclones use a tuned vortex system in which the outer vortex spiral forces small particles to fall into a separate canister. The filtered stream then passes up through the inner cyclone tube and is carried to the final poly filter.

In-tank washdown

Delivers a high-pressure water spray to the tank interior, helping to simultaneously dump material and clean the inside of the tank. Minimizes cleanup time and helps remove difficult debris.

Auto-belt tensioners

Keeps proper belt tensions at all times and helps extend belt life.

Hydraulic boom (option)

Exclusive telescoping boom maintains hose length during extension and incorporates a remote-controlled hydraulic valve for vacuum shutoff. Available with manual or hydraulic rotation.

Specifications

Compare Models
Show Metric
  • Skid

    • Compatibility 500-gal (1892.7-L) spoil tank option
    • Length 175 in (444.5 cm)
    • Width 97 in (246.4 cm)
    • Height 66 in (167.6 cm)
    • Empty weight 5450 lbs (2472.1 kg)
  • Skid - Option two

    • Compatibility 800-gal (3028.3-L) spoil tank option
    • Length 203 in (516.6 cm)
    • Width 97 in (246.4 cm)
    • Height 68 in (167.6 cm)
    • Empty weight 6085 lbs (2760.1 kg)
  • Engine

    • Make and Model Kubota Tier 4 Final
    • Horsepower 49 hp (37 kW)
    • Fuel tank capacity or type 22 gal (83.3 L)
    • Enclosure Yes
  • Water tank

    • Compatibility 500-gal (1892.7-L) spoil tank option
    • Water capacity 250 gal (946 L)
    • Number of Tanks 2
    • High pressure pump flow rate 5.6 gpm (21.2 L/min)
    • High Pressure Pump 3000 psi (206.8 bar)
    • High pressure hose length 50 ft (15 m)
    • Low Water Shutoff Electric
  • Water tank - Option two

    • Compatibility 800-gal (3028.3-L) spoil tank option
    • Water capacity 410 gal (1552 L)
    • Number of Tanks 2
    • High pressure pump flow rate 5.6 gpm (21.2 L/min)
    • High Pressure Pump 3000 psi (206.8 bar)
    • High pressure hose length 50 ft (15 m)
    • Low Water Shutoff Electric
  • Spoil Tank

    • Compatibility 500-gal (1892.7-L) spoil tank option
    • Spoil tank capacity 500 gal (1892.7 L)
    • Door type Cam-over hydraulic
    • Tank Lift Type Dual cylinder
  • Spoil tank - Option two

    • Compatibility 800-gal (3028.3-L) spoil tank option
    • Spoil tank capacity 800 gal (3028.3 L)
    • Door type Cam-over hydraulic
    • Tank Lift Type Dual cylinder
  • Vacuum

    • Type of Filters 2 micron washable
    • Hose length (2) 15 ft (4.6 m)
    • Hose width/diameter 4 in 10.2 cm
    • Air flow 1025 cfm (29 cubic m/min)
    • Vacuum blower type PD blower
    • Vacuum Mercury 15 inHg (0.5 bar)
  • Control panel

    • Controls Curbside
    • Gauges Analog
  • Boom

    • Availability Optional
    • Weight 1200 lbs (544.3 kg)
    • Reach 14 ft (4.3 m)
    • Movement 270 deg on 14-in turret bearings
    • Remote Control Wireless
  • Options

    • Hot box Optional
    • Strong arm Optional
    • Recirculation kit Optional
    • Reverse Pressure Standard

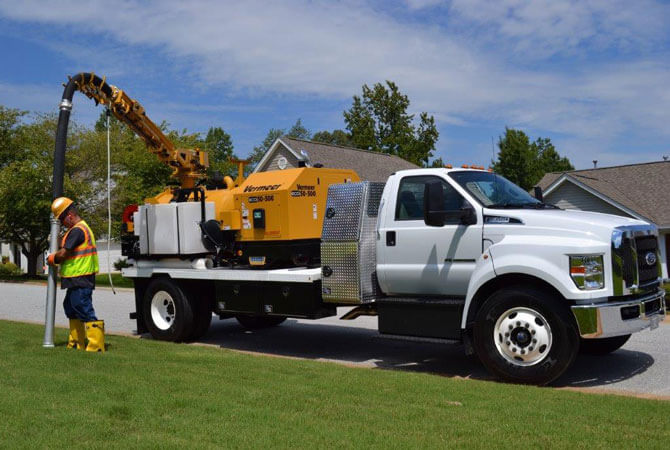

See it in action

Image 1
