The ECO 25-100G series offers contractors an economical solution for a variety of jobsite cleanup applications and fluid management tasks such as HDD support.

Find A Dealer Request More Info

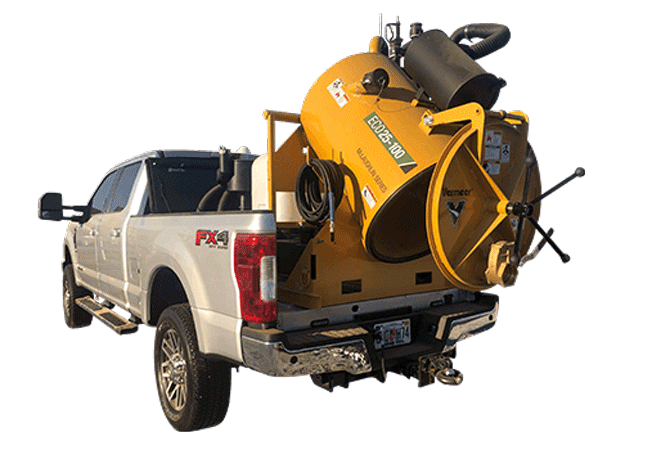

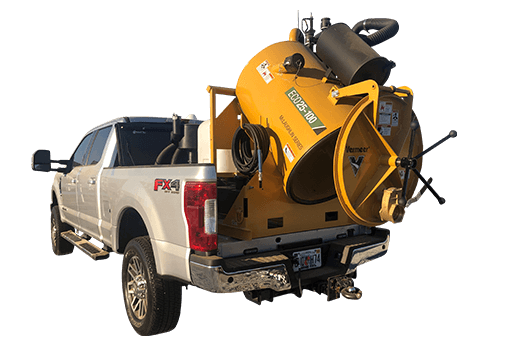

The ECO25-100G skid economic vacuum excavation units come equipped with a 4-gpm (15.1-L/min) water system at 3,000 psi (207 bar) and fresh water tanks for potholing and cleanup on your next jobsite.

The ECO 25-100G series offers contractors an economical solution for a variety of jobsite cleanup applications and fluid management tasks such as HDD support.

The ECO25-100G skid economic vacuum excavation units come equipped with a 4-gpm (15.1-L/min) water system at 3,000 psi (207 bar) and fresh water tanks for potholing and cleanup on your next jobsite. Find A Dealer Request More Info

Features & Benefits

Three-stage cyclonic filtration

Engineered to help prolong filter and blower life, the system is suitable for wet and dry applications. The cyclones use a tuned vortex system in which the outer vortex spiral forces small particles to fall into a separate canister. The filtered stream then passes up through the inner cyclone tube and is carried to the final poly filter.

Compact design

With a 24-hp (17.9-kW) gas engine, combined with a compact design, the ECO25 is ideal for small jobs in the gas, water and fiberoptic construction markets along with valve box cleanout projects.

Economical solution

Ideal for jobsite cleanup and fluid management, the ECO25 gas series provides an economical solution for managing drill fluids onsite.

Tilt tank

Efficiently offload debris.

Specifications

Compare Models
Show Metric
  • Skid

    • Length 98 in (248.9 cm)
    • Width 54 in (137.2 cm)
    • Height 80 in (203.2 cm0
    • Empty weight 1480 lbs (671.3 kg)
  • Engine

    • Make and Model Honda gas
    • Horsepower 24 hp (17.9 kW)
    • Fuel tank capacity or type 14 gal (52.9 L)
  • Water tank

    • Water capacity 50 gal (189.3 L)
    • Number of Tanks 1
    • High pressure pump flow rate 4 gpm (15.1 L/min)
    • High Pressure Pump 3000 psi (206.8 bar)
    • High pressure hose length 50 ft (15 m)
    • Low Water Shutoff Electric
  • Spoil Tank

    • Spoil tank capacity 100 gal (378 L)
    • Door type Manual
    • Tank Lift Type Standard
  • Vacuum

    • Type of Filters 2 micron washable
    • Hose length (1) 16 ft (4.9 m)
    • Hose width/diameter 3 in 7.6 cm
    • Vacuum 575 cfm (16.3 cubic m/min)
    • Vacuum Mercury 10 inHg (0.3 bar)
  • Control panel

    • Controls Curbside
    • Gauges Analog

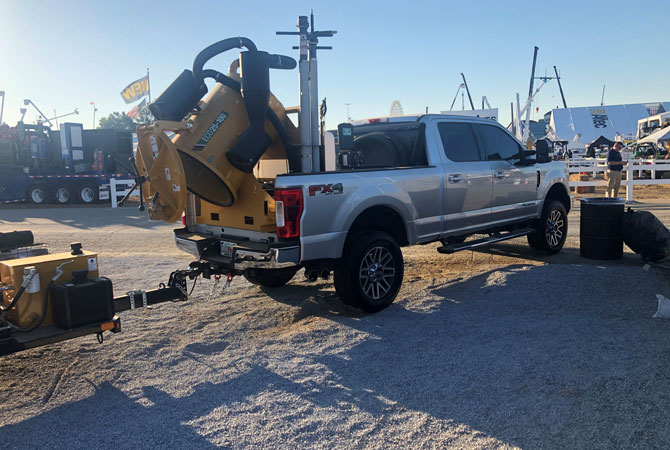

See it in action
