The ECO200 6-in (15.2-cm) series was designed after listening to customers who said they wanted a vacuum excavator for their potholing jobs and fluid management needs that fills a gap between smaller trailer-mounted vacuum excavators and the largest truck-mounted units.

Find A Dealer Request More Info

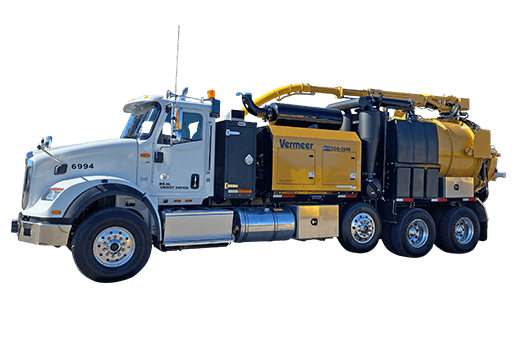

The ECO200 is a truck-mounted vacuum excavator that features a 215-hp (160-kW) Volvo diesel engine, a three-stage cyclonic filtration system and spoil tank capacity of 1,600 gal (6,056.7 L) with the standard option of 600 gal (2,270 L) of fresh water. It has a 6-in (15.2-cm) hose diameter and a 3,500-cfm (29.1-m³/min) “free air” blower capable of 18 in Hg (.6 bar). The tank, power pack and water system all have a modular design — versatility that allows a contractor to mount the unit on either new or used truck chassis.

The ECO200 6-in (15.2-cm) series was designed after listening to customers who said they wanted a vacuum excavator for their potholing jobs and fluid management needs that fills a gap between smaller trailer-mounted vacuum excavators and the largest truck-mounted units.

The ECO200 is a truck-mounted vacuum excavator that features a 215-hp (160-kW) Volvo diesel engine, a three-stage cyclonic filtration system and spoil tank capacity of 1,600 gal (6,056.7 L) with the standard option of 600 gal (2,270 L) of fresh water. It has a 6-in (15.2-cm) hose diameter and a 3,500-cfm (29.1-m³/min) “free air” blower capable of 18 in Hg (.6 bar). The tank, power pack and water system all have a modular design — versatility that allows a contractor to mount the unit on either new or used truck chassis. Find A Dealer Request More Info

Features & Benefits

Three-stage cyclonic filtration

Designed specifically for 3,500-cfm (99.1-m³/min) “free air" blower systems, it allows for wet and dry vacuum excavation while helping to prolong filter life and minimize maintenance costs.

Cam-over rear door

The highly reliable cam-over design provides a 360-degree positive seal, with no additional clamping and no in-tank moving parts.

Full-function, wireless can bus controls

The radio remote monitors and controls all machine functions and vital information. Remote straps to the operator and features a machine stop.

Large hose diameter

Featuring a 6-in (15.2-cm) hose diameter with a 3,500-cfm (99.1-m³/min) “free air” blower and 18 in Hg (.6 bar) to get more work done and take on big jobs.

Vacuum neutral mode

Air is able to run and circulate through the blower without suction or vacuum in the tank, allowing the engine and blower to unload or free-run when not in use to help prolong the blower and engine life.

Modular design

Mount on a new or used double-frame truck chassis, on- or off-road crawler carriers or hook truck bodies for access to difficult projects.

Specifications

Compare Models
  • Skid

    • Length 288 in (731.5 cm)
    • Width 100 in (254 cm)
    • Height 111 in (280 cm)
    • Empty weight 18320 lbs (8310 kg)
  • Engine

    • Make and Model Volvo Penta TAD572VE Tier 4 Final diesel
    • Horsepower 215 hp (160 kW)
    • Fuel tank capacity or type Connected to truck fuel supply
    • Enclosure Yes
  • Water Tank Option

    • Water capacity 600 gal (2270 L)
    • Number of Tanks 3
    • High pressure pump flow rate 10 gpm (37.9 L/min)
    • High Pressure Pump 3000 psi (206.8 bar)
    • High pressure hose length 75 ft (22.9 m)
    • Low Water Shutoff Electric
  • Spoil Tank

    • Spoil tank capacity 1600 gal (6057 L)
    • Door type Cam-over hydraulic
    • Tank Lift Type Dual cylinder
  • Vacuum Option

    • Type of Filters 2 micron washable
    • Hose length 3-5 ft (0.9-1.5 m)
    • Hose width/diameter 6 in 15.2 cm
    • Vacuum 3500 "free air" cfm (99 cubic m/min)
    • Vacuum blower type PD blower
    • Vacuum Mercury 18 inHg (0.6 bar)
  • Control Panel Option

    • Controls Curbside
    • Gauges Electronic display with 7-in (17.8-cm) LCD screen
  • Boom option

    • Availability Standard
    • Weight 893.7 lbs (405.4 kg)
    • Reach 14-19 ft (4.3-5.8 m)
    • Movement 270 deg rotation
    • Remote Control Wireless
  • Options

    • Hot box Optional
