Verifier G1 Utility Locator CE Certified

Features and Benefits

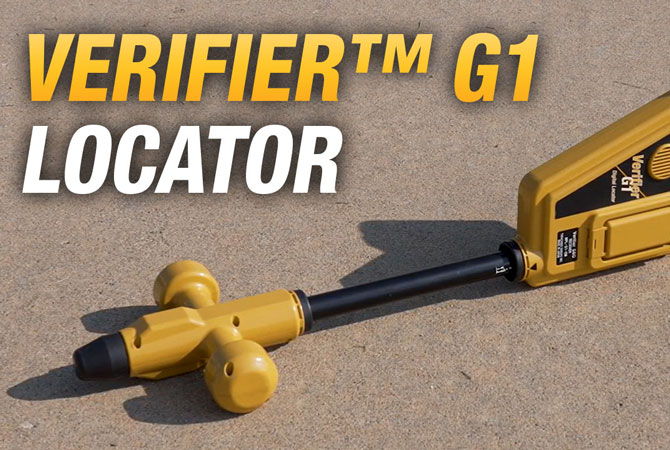

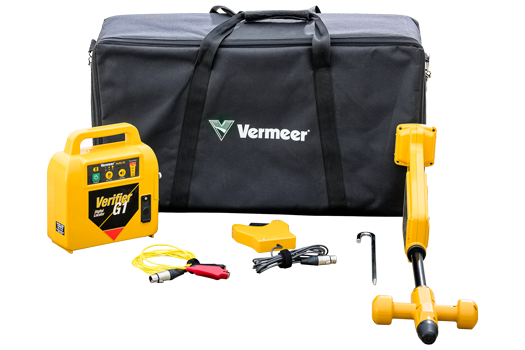

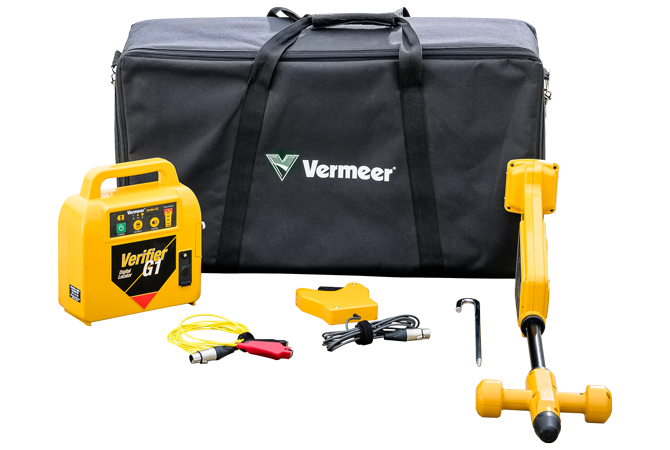

Verifier G1 utility locator
3-year service coverage including water damage that you come to know and expect from Vermeer Verifier™ series locators.

Specifications

Compare Models
Show Metric
  • Receiver (RX)

    • Active frequencies 82.2 kHz +/- 20 Hz
    • Battery Type Four alkaline LR6 AA
    • Battery life 30 hours
    • Battery status Continuous indication
    • Power save function Automatic power off after 6 minutes of inactivity
    • Visual indication LCD: bar graph, digital number and character
    • Depth display High precision depth measurement
    • Range Line: 0 ft - 16 ft (0 m - 5 m)
    • Depth readout unit Feet, meter and inch
    • Depth accuracy 6.5 ft (2 m): ±2.5%, 10 ft (3 m): ±5%, 16.5 ft (5 m): ±10%
    • Current value Current value showing on the conductor is displayed for line identity in millilamps (mA)
    • Audio output Internal speaker with volume adjustor
    • Interface 6-pin output connector
    • Operating temperature 4°F to 122°F (-20°C to 50°C)
    • Dimensions 26 in x 8.9 in x 7.68 in (66 cm x 22.8 cm x 19 cm)
    • Weight 2.4 lbs (1 kg) including four batteries
  • Transmitter (TX)

PRO TIPS FOR THIS MACHINE
