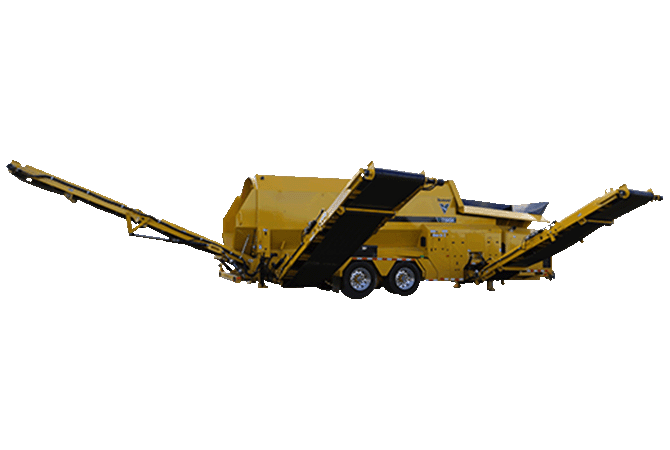

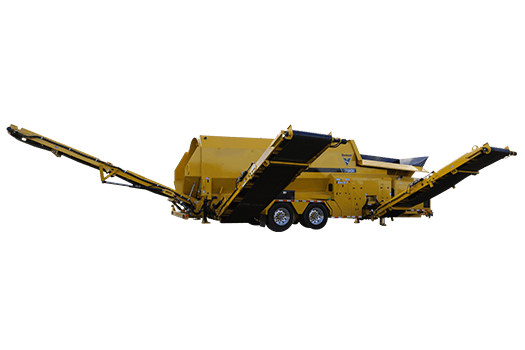

Introducing the all-new TR6450 trommel screen from Vermeer. Keep your business moving with a three-cut, single drum mobile unit, fully customizable to fit your needs. Providing a one-pass solution to produce multiple fractions, quick screen changeability and multiple conveyor configurations to conquer your opportunities.

Dominate the divide with three cuts and maximum mobility.

Introducing the all-new TR6450 trommel screen from Vermeer. Keep your business moving with a three-cut, single drum mobile unit, fully customizable to fit your needs. Providing a one-pass solution to produce multiple fractions, quick screen changeability and multiple conveyor configurations to conquer your opportunities. Find A Dealer Request More Info

Features & Benefits

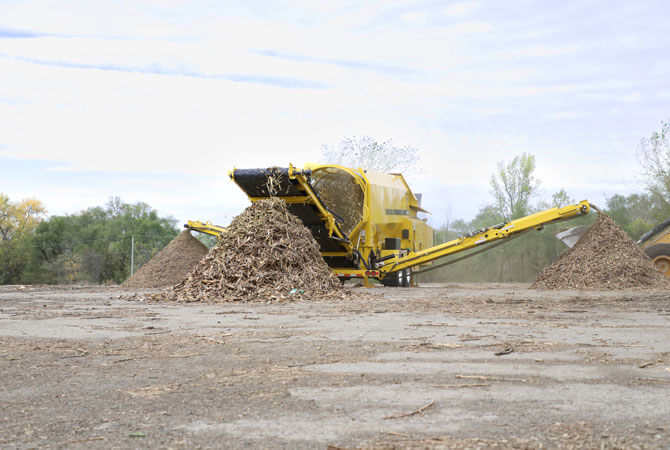

3-product production

The optional third product conveyor allows the single drum, TR6450 trommel screen, to produce three unique products in one pass.

Tensioned screen drum

Tensioning the screens allows for maximum strength with a finer wire gauge, optimizing production through improved open area. In high moisture applications, the use of stainless steel screens can be very useful.

Jobsite flexibility

The auxiliary hydraulic system grants the TR6450 trommel screen the ability to run the third fraction conveyor or other attachments.

Full-function remote

The ability to adjust the working trommel from the loader is made possible by the standard full-function remote control. The remote allows you to adjust screening functions, raise and lower conveyors, pause the hopper, reverse the engine fan and more.

Drum drive

The hydraulic-driven chain drive system provides positive drum drive and also allows the drum to lift off of the cog for service and maintenance. The drum drive is monitored so the hopper belt will stop when the drum is reaching capacity, in order to prevent over feeding.

Low hopper height

With a hopper height of 9.5 ft (2.9 m), the operator can load material without having to build a ramp to the machine, decreasing loading cycle times.

Specifications

Compare Models
Show Metric
  • General Dimensions and Weights

    • Weight 39000 lbs 17690.1 kg
    • Hitch Weight 5300 lbs 2404 kg
    • Transport Length 39.5 ft 12 m
    • Transport Width 119.5 in 303.5 cm
    • Transport Height 13.2 ft 4 m
    • Operation Length 54.2 ft 16.5 m
    • Operation width 43.3 ft 13.2 m
    • Operation Height 16.7 ft 5.1 m
    • Capacity 180 yd³ (137.6 m³) per hour with 0.5-in (1.3-cm) screens installed and material with moisture less than 40%
  • Engine - Option one

    • Make and Model CAT 3.6L Tier 4F (Stage V)
    • Number of Cylinders 4
    • Engine Rating 120 hp (90 kW)
    • Fuel Tank Capacity 50 gal 189.3 L
    • Fuel Consumption 3 gph (11.4 L/hr)
    • Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles) 35 deg
    • Battery 950 CCA
    • Oil Filter Spin-on
    • Recommended Oil Mobil 15W40
    • Oil Volume with Filter 11.2 qt 10.6 L
    • System Voltage 12-V, 120-amp alternator
    • Air Cleaner Dual element
    • Radiator Fan Suction
  • Hydraulic System

    • Tank capacity 80 gal 302.8 L
  • Chassis

    • Frame Description Four independent hydraulic jacklegs
    • Axle/Suspension Leaf spring
    • Tires - Option One 445/50 R22.5
  • Hopper and Apron Conveyor

    • Hopper Capacity 6.5 cu yd 5 cu m
    • Hopper Bottom Width 37.5 in 95.3 cm
    • Apron Conveyor Speed 0-15 ft/min
    • Apron Opening Height 45 in 114.3 cm
    • Apron Opening Width 37.5 in 95.3 cm
    • Hopper Height 9.5 ft (2.9 m) from ground level at operating incline
    • Hopper Opening 11.7 ft x 5.3 ft (3.6 m x 1.6 m)
    • Apron Conveyor Length 12.4 ft 3.8 m
    • Apron Conveyor Belt Width 42 in 106.7 cm
    • Apron Conveyor Rollers 5 in (12.7 cm) CEMA "D" x 17
  • Screen Drum

    • Drum Operation 0-35.9 gpm (0-135.9 L/min)
    • Drum Motor 35.5 in³ (630 cm³) displacement
    • Drum Diameter 6.5 ft 2 m
    • Drum Support Description 8 polyurethane trunnion wheels on pivoting bogeys 8 in x 4 in (20.3 cm x 10.2 cm) wide
    • Drum Length 20 ft 6.1 m
    • Thrust Bearing Diameter 4 in 10.2 cm
    • Thrust Bearing Face 2 in 5.1 cm
    • Drum Speed 0-25 rpm
    • Drum Drive Chain 140 extended pin/extended width
    • Drum Angle Adjustability 0-5 deg
    • Maximum Screen Panels 8
  • Screen Brushes

    • Brush Diameter 14 in 35.6 cm
    • Bristle Material Polyethylene
    • Brush Assembly Support (2) 1.25 in (3.2 cm) sealed ball bearings/brush
  • Collecting Conveyor

    • Conveyor Motor Displacement 16.7 cu-in 273.7 cu-cm
    • Collecting Conveyor Length 16 ft 4.9 m
    • Collecting Belt Speed 360 ft/min 109.7 m/min
    • Conveyor Belt Width 36 in 91.4 cm
    • Conveyor Belt Type 220 lb (99.8 kg), 2-ply, 2/16-in x 1/16-in (3.2-mm x 1.6-mm)
    • Head/Tail Pulley Type 8-in (20.3-cm) crowned
    • Head Pulley Bearing 1.75-in (4.4-cm) double roller
    • Rubber Flashing Adjustable corded rubber
    • Idler Type 4 in (10.2 cm) CEMA "B" straight
    • Tail Pulley Takeup 6 in 15.2 cm
    • Self-Cleaning Return Idlers (3) 4-in (10.2-cm) rubber disc
    • Collecting conveyor frame Part of trailer frame
  • Optional Third Product Conveyor

    • Conveyor Motor Displacement 14.2 cu-in 232.7 cu-cm
    • Fines Conveyor Length 24.5 ft 7.5 m
    • Fines Belt Speed 500 ft/min 152.4 m/min
    • Conveyor Belt Width 30 in 76.2 cm
    • Conveyor Belt Type 220 lb (99.8 kg), 2-ply, 2/16-in x 1/16-in (3.2-mm x 1.6-mm) smooth
    • Conveyor Belt Stacking Height 12.5 ft (3.8 m) (conveyor @ 30 deg)
    • Head Pulley Type 8-in (20.3-cm) crowned
    • Head Pulley Bearing 1.5-in (3.8-cm) pillow block
    • Troughing Idler Type 20 deg CEMA "B" with permanently sealed bearings spaced at 40-in centers
    • Self-Cleaning Tail Pulley Dimensions 8-in (20.3-cm) diameter, 32-in (81.3-cm) wide, crowned wing pully, 1.75-in (4.4-cm) shaft
    • Head Pulley Takeup 8 in 20.3 cm
    • Self-Cleaning Return Idlers (5) 4-in (10.2-cm) diameter
    • Fines Conveyor Frame Engineered structural frame
  • Fines Conveyor

    • Conveyor Motor Displacement 14.2 cu-in 232.7 cu-cm
    • Fines Conveyor Length 23.5 ft 7.2 m
    • Fines Belt Speed 400 ft/min 121.9 m/min
    • Conveyor Belt Width 36 in 91.4 cm
    • Conveyor Belt Type 220 lb (99.8 kg), 2-ply, 2/16-in x 1/16-in (3.2-mm x 1.6-mm) smooth
    • Conveyor Belt Stacking Height 10.5 ft (3.2 m) (conveyor @ 30 deg)
    • Head Pulley Type 8-in (20.3-cm) crowned
    • Head Pulley Bearing 1.5-in (3.8-cm) pillow block
    • Troughing Idler Type 20 deg CEMA "B" with permanently sealed bearings spaced at 40-in (101.6-cm) centers
    • Self-Cleaning Tail Pulley Dimensions 8-in (20.3-cm) diameter, 38-in (96.5-cm) wide, crowned wing pulley, 1.75-in (4.4-cm) shaft
    • Head Pulley Takeup 8 in 20.3 cm
    • Self-Cleaning Return Idlers (3) 4-in (10.2-cm) diameter
    • Fines Conveyor Frame Engineered structural frame
  • Overs Conveyor - Option 1

    • Overs Conveyor Length 19.2 ft 5.9 m
    • Maximum Variable Overs Belt Speed 360 ft/min 109.7 m/min
    • Conveyor Belt Size 42 in (106.7 cm)
    • Conveyor Belt Type 220 lb (99.8 kg), 2-ply, 2/16-in x 1/16-in (3.2-mm x 1.6-mm) cleated
    • Conveyor Belt Stacking Height 9 ft (2.74 m) (conveyor @ 25 deg)
    • Head Pulley Type 8-in (20.3-cm) crowned
    • Head Pulley Bearing 1.5-in (3.8-cm) pillow block
    • Self-Cleaning Tail Pulley Dimensions 8-in (20.3-cm) diameter, 44-in (111.8-cm) wide, crowned wing pulley, 1.75-in (4.4-cm) shaft
    • Head Pulley Takeup 8 in 20.3 cm
    • Self-Cleaning Return Idlers (2) 4-in (10.2-cm) diameter, (1) 5-in (12.7-cm) "rattle roller"
    • Overs Conveyor Frame Engineered structural frame
    • Troughing Idler Type 20 degrees CEMA "B" with permanently sealed bearings spaced at 32-in (81.3-cm) centers
