Ready to go to the field.

Find A Dealer Request More Info

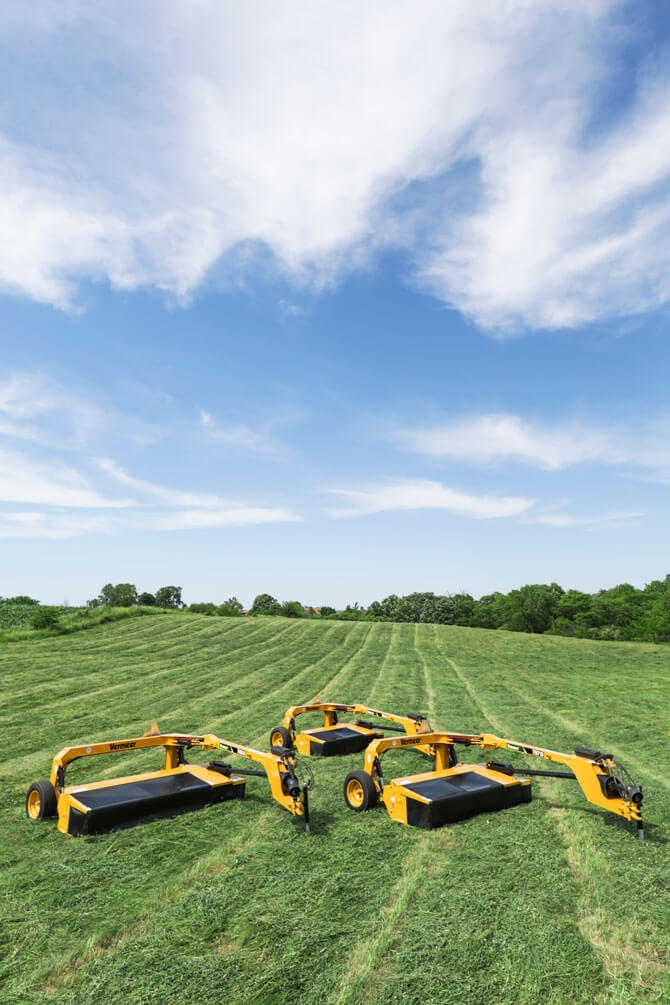

The TM710 pull-behind mowers offer simplicity. The hookup procedure is straightforward; after the hitch, PTO and hydraulics are connected it’s ready to go to the field. Toolless adjustments allow users to set the suspension between fields. The Quick-Clip® blade retention system lives up to its name. Horsepower requirements (TM610: 50 hp [37.3 kW]) are an average 20 percent lower than comparable 3-pt disc mowers. Plus, narrow transport widths help you mow and go. The trail to better mowing starts here.

Ready to go to the field.

The TM710 pull-behind mowers offer simplicity. The hookup procedure is straightforward; after the hitch, PTO and hydraulics are connected it’s ready to go to the field. Toolless adjustments allow users to set the suspension between fields. The Quick-Clip® blade retention system lives up to its name. Horsepower requirements (TM610: 50 hp [37.3 kW]) are an average 20 percent lower than comparable 3-pt disc mowers. Plus, narrow transport widths help you mow and go. The trail to better mowing starts here.

Find A Dealer Request More Info

Features & Benefits

Easy hitch hookup

Hitch up easily. The hookup procedure is straightforward; after the hitch, PTO and hydraulics are connected it’s ready to go to the field.

Low horsepower requirements

Goes easy on horsepower, only requiring a 55 hp (41 kW) tractor for a 9.2 ft (2.8 m) cut.

Patented rubber torsion design

Absorbs shock loads with a patented rubber torsion design that keeps the weight of the cutter bar on the ground until it needs to float over field obstacles.

Hydraulic swing cylinder

Maneuvers around obstacles with ease, thanks to the hydraulic swing cylinder.

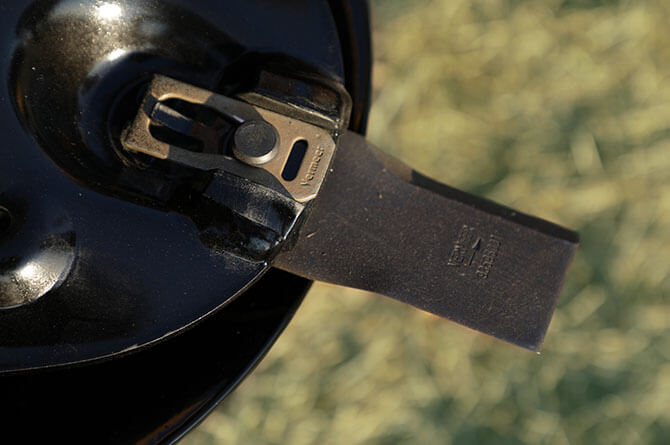

Quick-Clip blade retention system

Replace blades in seconds using the exclusive Quick-Clip™ blade retention system.

Specifications

Compare Models
Show Metric
  • Dimensions and Weights

    • Transport Height 46 in 116.8 cm
    • Transport width - standard 9.4 ft 2.9 m
    • Transport Length 15.3 ft 4.7 m
    • Cutting Width 9.2 ft 2.8 m
    • Working Height 46 in 116.8 cm
    • Working Width 13.6 ft 4.1 m
    • Working Length 14.3 ft 4.4 m
    • Total Weight 2200 lbs 997.9 kg
    • Tongue Weight 630 lbs 285.8 kg
    • Suspension Rubber torsion
    • Torque Protection Driveline: friction disc clutch
    • Tires 27x9.5-15
  • Tractor Requirements

    • Tongue/hitch Drawbar
    • Drive PTO 540 rpm
    • PTO horsepower recommended 55 hp 41 kw
    • Hydraulic Type 2 double-acting (1 double-acting with optional kit)
    • Hydraulic Pressure 1250 psi 86.2 bar
    • Hydraulic flow rate 6 gpm 22.7 L/min
  • Cutter bar

    • Cutter bar type Standard
    • Cut height 1.3 in - 3 in (3.2 cm - 7.6 cm)
    • Number of Discs 7
    • Disc Diameter 19.7 in 50 cm
    • Disc Speed 2797 rpm
    • Number of Blades 14
    • Angle Adjustment Manual turnbuckle
    • Quick Clip® blade retention system Standard
    • Curtain material 1 ply 1/8 in rubber
    • 3-year limited cutter bar warranty Standard
  • Features

    • Optional swath formation Optional swathboard
    • Skid Shoes Standard modular independent skid shoes; Optional topping wear skids

See it in action

Video 1
Image 1
Video 2
Image 2
Video 3
Image 3
Image 4
