Ready to go to the field.

Find A Dealer Request More Info

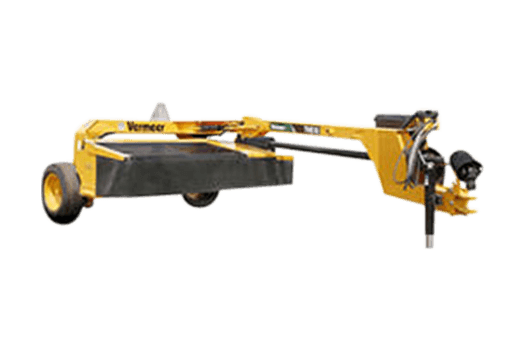

The TM610 trailed mowers offer simplicity. The hookup procedure is straightforward; after the hitch, PTO and hydraulics are connected it’s ready to go to the field. Toolless adjustments allow users to set the suspension between fields. The Quick-Clip® blade retention system lives up to its name. Horsepower requirements (TM610: 50 hp [37.3 kW]) are an average 20 percent lower than comparable 3-pt disc mowers. Plus, narrow transport widths help you mow and go. The trail to better mowing starts here.

Ready to go to the field.

The TM610 trailed mowers offer simplicity. The hookup procedure is straightforward; after the hitch, PTO and hydraulics are connected it’s ready to go to the field. Toolless adjustments allow users to set the suspension between fields. The Quick-Clip® blade retention system lives up to its name. Horsepower requirements (TM610: 50 hp [37.3 kW]) are an average 20 percent lower than comparable 3-pt disc mowers. Plus, narrow transport widths help you mow and go. The trail to better mowing starts here.

Find A Dealer Request More Info

Features & Benefits

Easy hitch hookup

Hitch up easily. The hookup procedure is straightforward; after the hitch, PTO and hydraulics are connected it’s ready to go to the field.

Low horsepower requirements

Goes easy on horsepower, only requiring a 50 hp (37.3 kW) tractor for an 8.1 ft (2.5 m) cut.

Patented rubber torsion design

Absorbs shock loads with a patented rubber torsion design that keeps the weight of the cutter bar on the ground until it needs to float over field obstacles.

Hydraulic swing cylinder

Maneuvers around obstacles with ease, thanks to the hydraulic swing cylinder.

Quick-Clip blade retention system

Replace blades in seconds using the exclusive Quick-Clip™ blade retention system.

Specifications

Compare Models
  • Dimensions and Weights - Approximate

    • Transport Height 46 in 116.8 cm
    • Transport Width 8.3 ft 2.5 m
    • Transport Length 15.3 ft 4.7 m
    • Working Height 46 in 116.8 cm
    • Working Width 12.4 ft 3.8 m
    • Working Length 14.3 ft 4.4 m
    • Total Weight 2100 lbs 952.5 kg
    • Tongue Weight 600 lbs 272.2 kg
    • Tires 27 x 9.5 - 15
  • Tractor Requirements

    • Minimum Horsepower Required 50 hp 37.3 kw
    • Hydraulic requirements 2 auxiliary remotes (1 with optional kit)
    • Flow Rate 6 gpm 22.7 L/min
    • Hydraulic Pressure 1250 psi 86.2 bar
  • Cutterbar

    • Cutting Width 8.1 ft 2.5 m
    • Number of Discs 6
    • Disc Diameter 19.7 in 50 cm
    • Disc Speed 2797
    • Number of Knives 12
    • Cutterbar Angle 0-6º
    • Angle Adjustment Manual turnbuckle
    • Disc Type Quick-Clip® blade retention system
    • Skid Shoes Modular independent skid shoes
  • Standard Features

    • Warranty One year limited warranty and three year limited cutterbar warranty
    • Safety Equipment SMV sign
    • Mower Suspension Rubber torsion
    • Torque Protection - Driveline Friction disc clutch
  • Options

    • Single Tractor Outlet Hydraulic Kit For tractors with only 1 auxillary remote

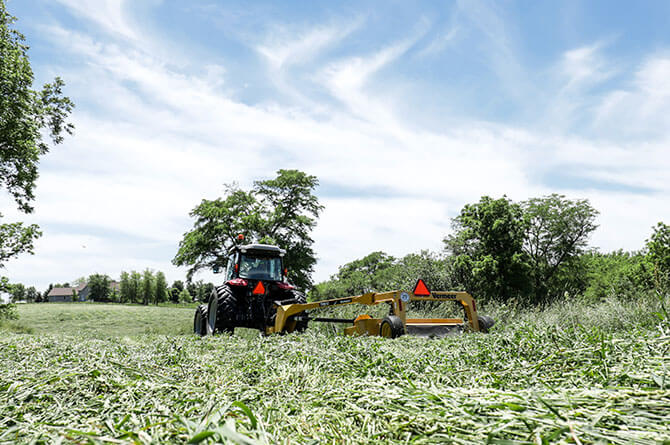

See it in action
