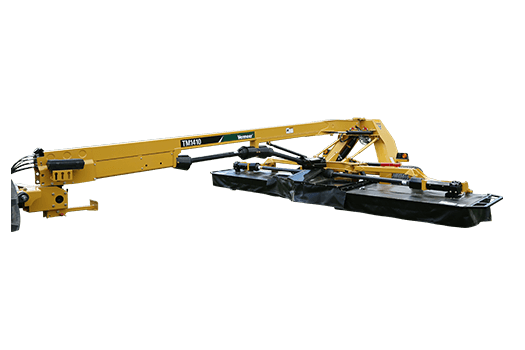

With a cutting width of 20.8 ft (6.3 m), the 10-series trailed mowers are ideal for operators who want to cut more hay in less time and want convenient features that take the stress out of operating, transporting and maintaining a large trailed mower. Features like the Q3® Cutter Bar, 2-point Quick Hitch hook up, a nitrogen charged accumulator suspension system, and the patented Quick-Clip® Blade Retention System that reduces the process of blade replacement to mere seconds. Big time productivity, big time convenience and a narrow 9-ft transport width. Plus, a 3-year cutter bar warranty on parts and labor.

Mow like you mean it.

With a cutting width of 20.8 ft (6.3 m), the 10-series trailed mowers are ideal for operators who want to cut more hay in less time and want convenient features that take the stress out of operating, transporting and maintaining a large trailed mower. Features like the Q3® Cutter Bar, 2-point Quick Hitch hook up, a nitrogen charged accumulator suspension system, and the patented Quick-Clip® Blade Retention System that reduces the process of blade replacement to mere seconds. Big time productivity, big time convenience and a narrow 9-ft transport width. Plus, a 3-year cutter bar warranty on parts and labor.

Find A Dealer Request More Info

Features & Benefits

Q3 Cutter Bar

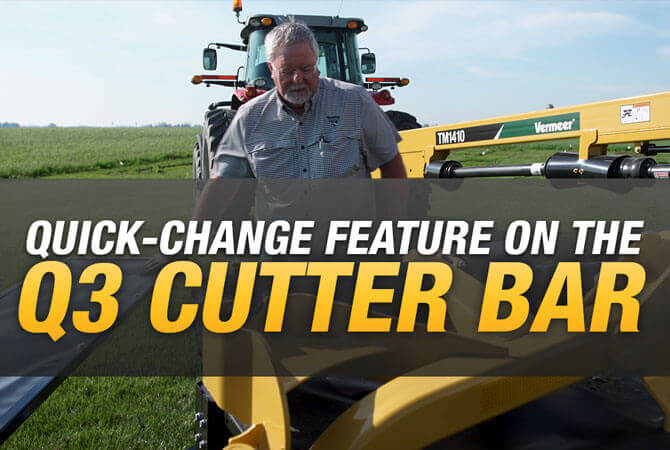

The Q3® Cutter Bar is a modular shaft-driven cutter bar that helps to maximize productivity and make the mower more fuel-efficient with minimal gear-to gear interface which can require less horsepower than gear bed style cutter bars. Key features such as the Quick-Clip® Blade Retention System and Quick-Change™ Shear Ring are designed for productivity, functionality and to allow for quick and easy replacement in the field. Access on top of each cutter unit lets the operator check and replace oil quickly.

Nitrogen-charged accumulator suspension system

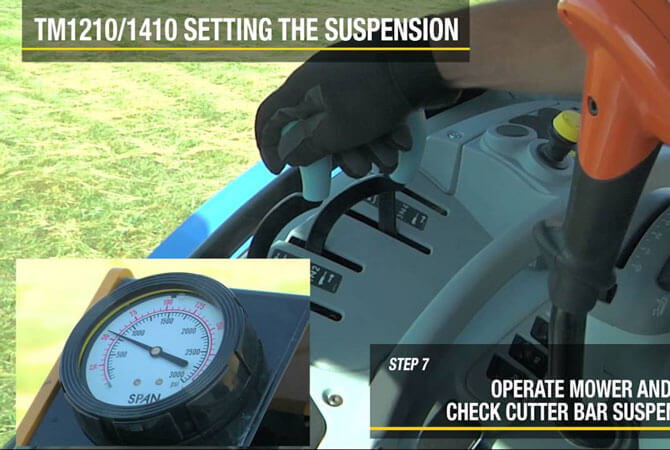

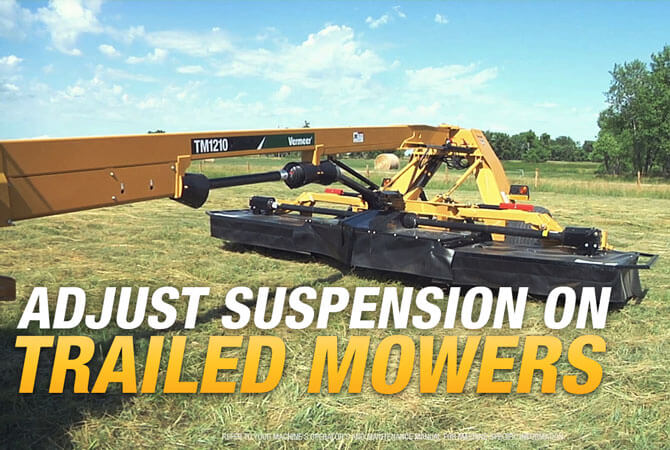

A simple, convenient nitrogen-charged accumulator suspension system makes it easy to adjust for various crops and conditions, and provides better ground following cutter bar balance and a more consistent pitch. The system allows you to establish a setting and charge to that setting every time.

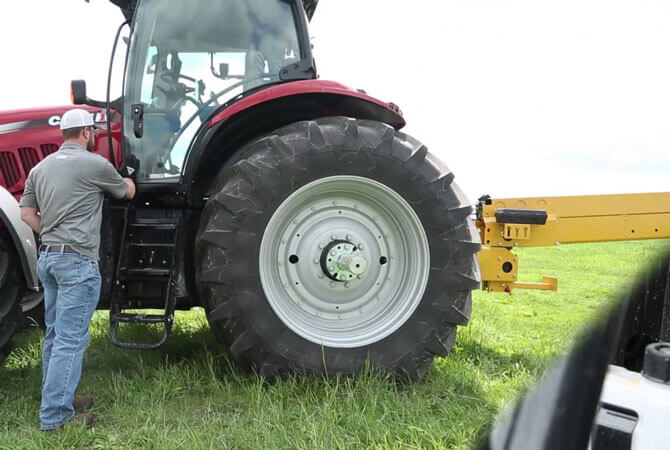

2-point Quick Hitch

A patent-pending, newly designed 2-point Quick Hitch allows for an easy, one-person hook up. It also provides more ground clearance to avoid crop obstructions while in the field. Quick. Simple. Durable.

Hydraulic fold for transport

Just because the 10-series trailed mowers offer wide cutting widths, it doesn't mean they have to be a hassle to deal with. The TM1410 hydraulically folds down to a 9 ft (2.7 m) transport width.

Optional large float tires

Optional 480/45 x 17 large float tires are available for both the TM1210/TM1410 trailed mowers.

Two independent cutter bar units

Two independent cutter bar units work with the suspension system to allow the mower to flex in uneven ground contour.

Specifications

Compare Models
  • Cutterbar

    • Cutting Width 20.8 ft 6.3 m
    • Cutting Height - maximum 3 in 7.6 cm
    • Cutting Height - minimum 1 in 2.5 cm
    • Number of Discs 14
    • Disc Diameter 23 in 58.4 cm
    • Disc Speed 2690 rpm
    • Number of Knives 28
    • Cutterbar Angle 0-6
    • Angle Adjustment Hydraulic pitch control
    • Disc Type Quick-Clip® Blade Retention System
    • Skid Shoes Single skid shoe or modular independent skid shoe
  • Dimensions and Weights - Approximate

    • Transport Height 76 in 193 cm
    • Transport Width 9.1 ft 2.8 m
    • Transport Length 25.2 ft 7.7 m
    • Working Height 76 in 193 cm
    • Working Width 27.1 ft 8.3 m
    • Working Length 19.8 ft 6 m
    • Total Weight 6660 lbs 3020.9 kg
    • Tongue Weight 1940 lbs 880 kg
  • Options

    • Safety Chain Yes
    • Skid Shoes Yes
    • Swathboard Yes
    • Swathwheel Yes
    • Single Tractor Outlet Hydraulic Kit 2 remote kit
  • Tractor Requirements

    • Hitch 3-Point, category II or III N
    • Drive - PTO 1000 rpm
    • Minimum Horsepower Required 105 hp 78.3 kw
    • Hydraulic requirements 3- Double Acting (2- Double acting with optional kit)
    • Flow Rate 6 gpm 22.7 L/min
    • Hydraulic Pressure 1850 psi 127.6 bar
  • Standard Features

    • Warranty 3-year limited cutter bar warranty
    • Safety Equipment SMV sign, Highway lights, Safety chain
    • Mower Suspension Hydraulic
    • Torque Protection - Driveline Friction disc clutch

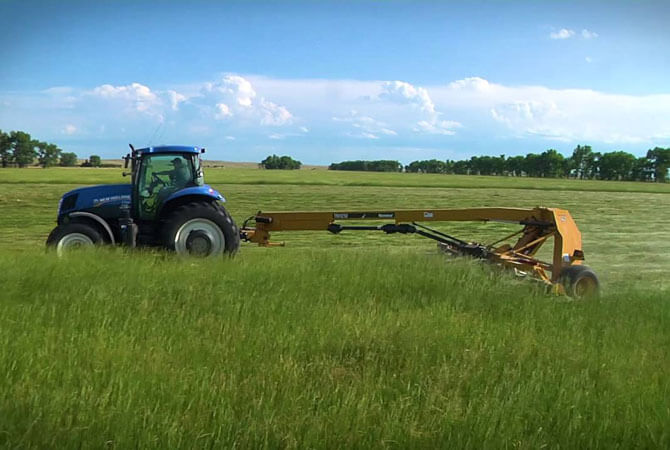

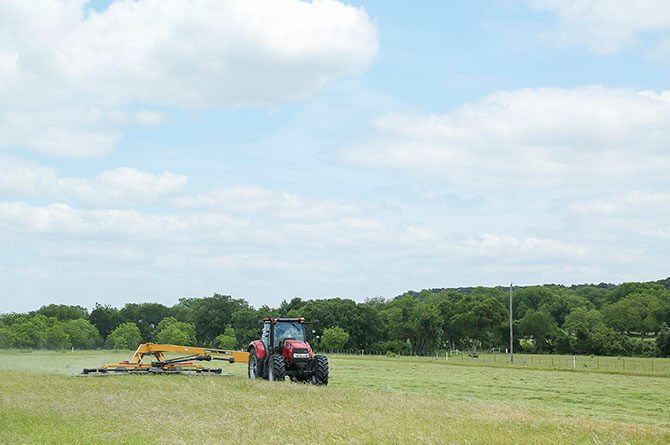

See it in action

Talk to a Vermeer Dealer Today

From helping you select the right equipment, to training operators, to providing the parts and service you need on a jobsite or in the field, Vermeer dealers will give you the localized support you're looking for.

* Required Field
*
*
*
*
*
*
*
*
I have read and agree to this notice of personal information processing. *
I am 18 years or older. *
I confirm I have read and agree to the Vermeer Privacy Policy, terms and conditions. *
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Current Special Offers

<span>0% financing up to 48 months</span> or cash back on select models

0% financing up to 48 months or cash back on select models

Now, through April 30, 2020 qualified buyers can receive 0% interest for up to 48 months or cash back on the purchase of select new Vermeer forage equipment.
See the offer

More about Vermeer trailed mowers

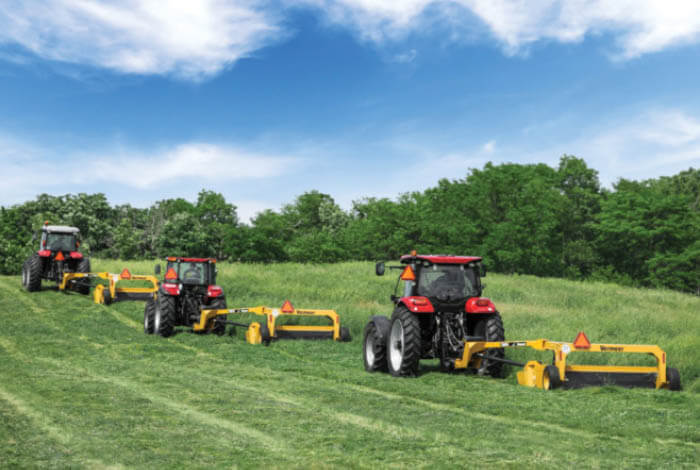

10-series small trailed mowers get the job done
