The Vermeer TM135 is a mid-sized option — 13.5 ft (4.1 m) cutting width — for operators who need more capacity but aren’t quite ready for a large trailed mower. A Q3® cutter bar and greaseless vertical driveline are designed to maximize efficiency by minimizing maintenance time. A nitrogen-charged hydraulic suspension system delivers a consistent, clean cut in various crops and ground conditions. Plus, options like a 2-point quick hitch or drawbar hitch, and 540 RPM or 1,000 RPM, you can customize your mower to meet your operation’s needs. This is how you finish fields quickly and efficiently.

Convenient. Consistent. Clean cut.

The Vermeer TM135 is a mid-sized option — 13.5 ft (4.1 m) cutting width — for operators who need more capacity but aren’t quite ready for a large trailed mower. A Q3® cutter bar and greaseless vertical driveline are designed to maximize efficiency by minimizing maintenance time. A nitrogen-charged hydraulic suspension system delivers a consistent, clean cut in various crops and ground conditions. Plus, options like a 2-point quick hitch or drawbar hitch, and 540 RPM or 1,000 RPM, you can customize your mower to meet your operation’s needs. This is how you finish fields quickly and efficiently. Find A Dealer Request More Info

Features & Benefits

Q3® cutter bar

Maximize productivity and minimize maintenance time with a heavy-duty, modular, shaft-driven cutter bar. Not only is it backed by the Vermeer 3-year cutter bar coverage, but two features make it quick and convenient to replace key components — the Quick-Clip® blade retention system and Quick-Change™ shear ring. Get back up and mowing in the field.

Nitrogen-charged hydraulic suspension system

Suspension largely dictates your ability to get a consistent cut. This system ensures optimal suspension to minimize ground pressure for a clean cut across the field. For varying field conditions, you can make quick and toolless suspension adjustments. Now you control how you cut.

Swivel gearbox and hydraulic pitch adjustment

Mow around tight corners with the swivel gearbox on the drawbar. With a pivoting header gearbox and a CV joint, the mower can operate on the side of or directly behind the tractor. Plus, if you ever need to mow above an obstacle in the field, simply bump a lever to raise the pitch using the tractor hydraulics. Then bump the lever back down and you’re back to the original cut height. All while the mower never leaves the ground. Full control comes with this mid-sized trailed mower.

Heavy-duty frame and large tires

The frame is the backbone of any trailed mower, and this mower is equipped with one of the most robust frames in the field. Durable components like a heavy-duty frame and large tires are ready to withstand varying field conditions for years to come.

Drawbar swivel hitch or 2-point Quick Hitch

There are two hitch options to choose from but either provide a convenient, one-person hookup — the drawbar swivel hitch or patented 2-point Quick Hitch. Both have a balanced pivoting drawbar connection to make hitching-up a hassle-free, one-person job. Hitch up and mow.

Greaseless vertical driveline and greaseless tongue pivot

Get back to mowing. The greaseless vertical driveline and greaseless tongue pivot features helps to optimize routine maintenance to get you back in the field.

Cutter bar access

Routine maintenance is unavoidable, but with the large fold-up curtain providing access to each cutter unit, it’s convenient. This cutter bar is an open book when it comes to changing blades or checking and replacing oil.

Specifications

Compare Models
Show Metric
  • Dimensions and Weights

    • Transport Height 61 in 154.9 cm
    • Transport Width - ends up 13.6 ft 4.1 m
    • Transport Width - ends down 14.3 ft 4.4 m
    • Transport Length 18.2 ft 5.5 m
    • Cutting Width 13.5 ft 4.1 m
    • Working Height 61 in 154.9 cm
    • Working Width 14.3 ft 4.4 m
    • Working Length 17.2 ft 5.2 m
    • Mower swung out offset 50 in 127 cm
    • Cutter bar lift height clearance 16 in 40.6 cm
    • Total Weight 3600 lbs 1632.9 kg
    • Tongue Weight 1200 lbs 544.3 kg
    • Suspension Hydraulic
    • Torque Protection Driveline: friction disc clutch
    • Tires 31x13.5-16
  • Tractor Requirements

    • Tongue/hitch Drawbar with swivel gearbox, OR 2-point with swivel gearbox, category II or III N
    • Drive PTO 540 rpm or 1,000 rpm
    • PTO horsepower recommended 70 hp 52.2 kw
    • Hydraulic Type 2 remote, single-acting lift, double-acting swing
    • Hydraulic Pressure 1900 psi 131 bar
    • Hydraulic flow rate 6 gpm 22.7 L/min
  • Cutter bar

    • Cutter bar type Q3®
    • Cut height 1 in - 3 in (2.5 cm - 7.6 cm)
    • Number of Discs 9
    • Disc Diameter 23 in 58.4 cm
    • Disc Speed 2700 rpm
    • Number of Blades 18
    • Angle Adjustment Hydraulic pitch control
    • Quick Clip® blade retention system Standard
    • Quick-Change™ shear ring Standard
    • Curtain material 1400 g/m2 polyester woven material with flexible PVC covering
    • 3-year limited cutter bar warranty Standard
  • Features

    • Optional swath formation Optional right crop divider, standard right swath wheel
    • Skid Shoes Standard modular independent skid shoes; Optional topping shoes and wear skids
    • Highway Lights Standard

See it in action

Video 1
Image 1
Video 2

Talk to a Vermeer Dealer Today

From helping you select the right equipment, to training operators, to providing the parts and service you need on a jobsite or in the field, Vermeer dealers will give you the localized support you're looking for.

* Required field
*
*
*
*
*
*
*
*
*
I have read and agree to this notice of personal information processing. *
I am 18 years or older. *
I confirm I have read and agree to the Vermeer Privacy Policy and conditions of use. *
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Current Special Offers

0% financing for up to 48 months or cash back on select models

0% financing for up to 48 months or cash back on select models

Now through Oct. 31, 2022, qualified buyers can receive 0% interest for up to 48 months or cash back on the purchase of select new Vermeer forage equipment.
See the offer

More about Vermeer trailed mowers

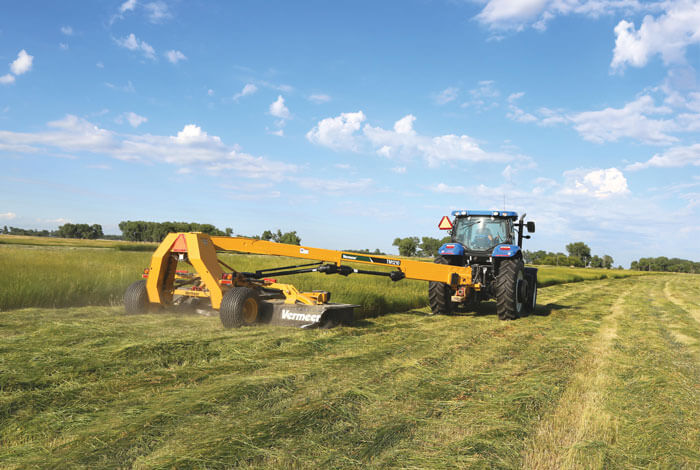

The lowdown on when and how to mow a hay field
