Big-time productivity.

Find A Dealer Request More Info

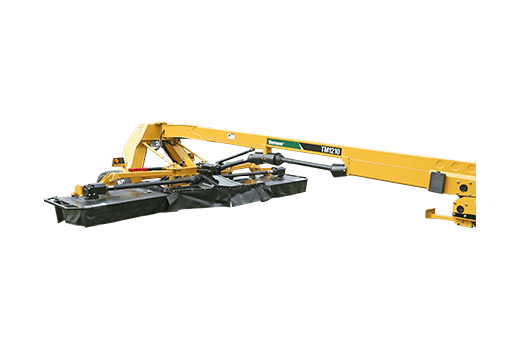

The TM1210 trailed mower is ideal for operators who want to cut more hay in less time, with a 17.7-ft (5.4-m) cutting width and a 9-ft (2.7-m) transport width. Built with convenient features, the TM1210 takes the stress out of operating, transporting and maintaining a large trailed mower. Take a peek at the features below and you’ll see what we mean. The TM1210 delivers big-time productivity with big-time convenience.

Big-time productivity.

The TM1210 trailed mower is ideal for operators who want to cut more hay in less time, with a 17.7-ft (5.4-m) cutting width and a 9-ft (2.7-m) transport width. Built with convenient features, the TM1210 takes the stress out of operating, transporting and maintaining a large trailed mower. Take a peek at the features below and you’ll see what we mean. The TM1210 delivers big-time productivity with big-time convenience.

Find A Dealer Request More Info

Features & Benefits

Q3 Cutter Bar

The Q3® Cutter Bar is a modular shaft-driven cutter bar that helps to maximize productivity and make the mower more fuel-efficient with minimal gear-to gear interface which can require less horsepower than gear bed style cutter bars. Key features such as the Quick-Clip® Blade Retention System and Quick-Change™ Shear Ring are designed for productivity, functionality and to allow for quick and easy replacement in the field. Access on top of each cutter unit lets the operator check and replace oil quickly.

Nitrogen-charged accumulator suspension system

A simple, convenient nitrogen-charged accumulator suspension system makes it easy to adjust for various crops and conditions, and provides better ground following cutter bar balance and a more consistent pitch. The system allows you to establish a setting and charge to that setting every time.

2-point Quick Hitch

A patent-pending, newly designed 2-point Quick Hitch allows for an easy, one-person hook up. It also provides more ground clearance to avoid crop obstructions while in the field. Quick. Simple. Durable.

Hydraulic fold for transport

Just because the 10-series trailed mowers offer wide cutting widths, it doesn't mean they have to be a hassle to deal with. The TM1410 hydraulically folds down to a 9 ft (2.7 m) transport width.

Optional large float tires

Optional 480/45 x 17 large float tires are available for both the TM1210/TM1410 trailed mowers.

Two independent cutter bar units

Two independent cutter bar units work with the suspension system to allow the mower to flex in uneven ground contour.

Specifications

Compare Models
Show Metric
  • Dimensions and Weights

    • Transport Height 76 in 193 cm
    • Transport width - standard 9.1 ft 2.8 m
    • Transport width with flotation tires 9.8 ft 3 m
    • Transport Length 25.2 ft 7.7 m
    • Cutting Width 17.7 ft 5.4 m
    • Working Height 76 in 193 cm
    • Working Width 23.9 ft 7.3 m
    • Working Length 19.8 ft 6 m
    • Total Weight 6275 lbs 2846.3 kg
    • Tongue Weight 1820 lbs 825.5 kg
    • Suspension Hydraulic
    • Torque Protection Driveline: friction disc clutch
    • Tires Standard 31x13.5-15; Optional 480/45x17 flotation tire
  • Tractor Requirements

  • Cutter bar

  • Features
