Mow like you mean it.

Find A Dealer Request More Info

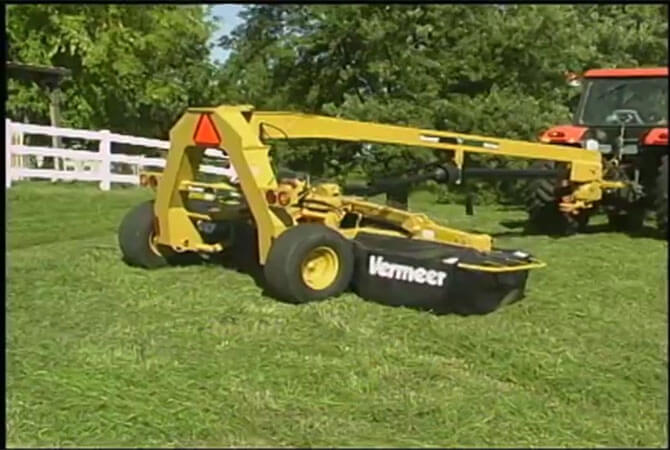

The heavy-duty, center pivot TM1200 trailed mower cuts an impressive 15 ft 6 in/4.7 m, but folds neatly in half for transporting to the next field. Cutterbars are staggered and overlapped for complete cutting action down the middle. To lower maintenance needs, each of the 12 discs is self-contained with its own set of gears, bearings and lubricants – and the gears stay in the grease, even when mowing at extreme angles.

Mow like you mean it.

The heavy-duty, center pivot TM1200 trailed mower cuts an impressive 15 ft 6 in/4.7 m, but folds neatly in half for transporting to the next field. Cutterbars are staggered and overlapped for complete cutting action down the middle. To lower maintenance needs, each of the 12 discs is self-contained with its own set of gears, bearings and lubricants – and the gears stay in the grease, even when mowing at extreme angles.

Find A Dealer Request More Info

Features & Benefits

Wide swath mower

Reduce labor and fuel by using one wide swath mower to cut more acres than multiple 3-point mowers.

Reduced working width

Maneuvers from field to field easily because the working width of 17 ft 10 in/5 m is reduced to 8 ft 5 in/2.6 m during transport.

Nitrogen-charged accumulator flotation system

Float over fields and contoured terrain with a nitrogen-charged accumulator flotation system that adjusts for varying field and crop conditions and a suspension system that complements the independent cutter bars, allowing each to operate at different levels.

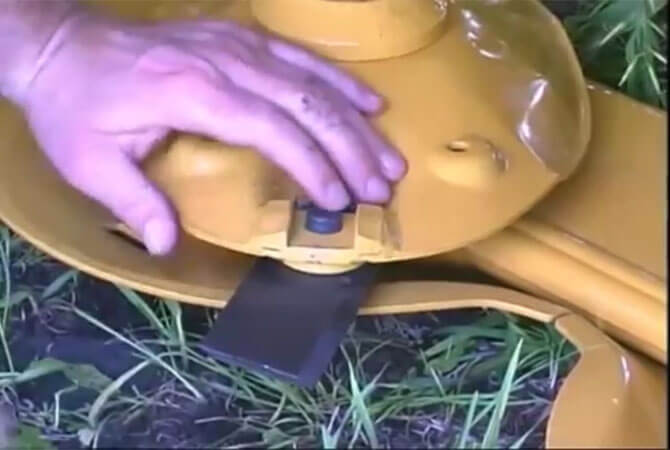

Quick-Clip blade retention system

Enjoy simplified maintenance using the exclusive Quick Clip™ Blade Retention System and flip-up curtains that give you easy access to the cutter bars.

Wide skid shoes and suspension system

Get more protection from unseen obstacles with the wide skid shoes and suspension system that help protect the cutterbars and the friction clutch, which protects the drive system.

Specifications

Compare Models
Show Metric
  • Dimensions and Weights

    • Transport Height 78 in 198.1 cm
    • Transport width - standard 8.5 ft 2.6 m
    • Transport Length 22 ft 6.7 m
    • Cutting Width 15.5 ft 4.7 m
    • Working Height 78 in 198.1 cm
    • Working Width 22 ft 6.7 m
    • Working Length 18 ft 5.5 m
    • Total Weight 5900 lbs 2676.2 kg
    • Tongue Weight 1580 lbs 716.7 kg
    • Suspension Hydraulic
    • Torque Protection Driveline: friction disc clutch
    • Tires 31x13.5-15
  • Tractor Requirements

    • Tongue/hitch 2-point with swivel gearbox, category II or III N
    • Drive PTO 540 or 1000 rpm
    • PTO horsepower recommended 85 hp 63.4 kw
    • Hydraulic Type 2 double-acting
    • Hydraulic Pressure 1500 psi 103.4 bar
    • Hydraulic flow rate 6 gpm 22.7 L/min
  • Cutter bar

    • Cutter bar type Standard
    • Cut height 1.3 in - 3 in (3.2 cm - 7.6 cm)
    • Number of Discs 12
    • Disc Diameter 19.7 in 50 cm
    • Disc Speed 2950 rpm
    • Number of Blades 24
    • Angle Adjustment Hydraulic pitch control
    • Quick Clip® blade retention system Standard
    • Curtain material 1400 g/m2 polyester woven material with flexible PVC covering
    • 3-year limited cutter bar warranty Standard
  • Features

    • Optional swath formation Optional swathwheel
    • Skid Shoes Standard modular independent skid shoes; Optional topping wear skids
    • Highway Lights Standard

See it in action

Image 1
Video 1
Image 2
Video 2
Image 3
