Convenient. Consistent. Clean cut.

Find A Dealer Request More Info

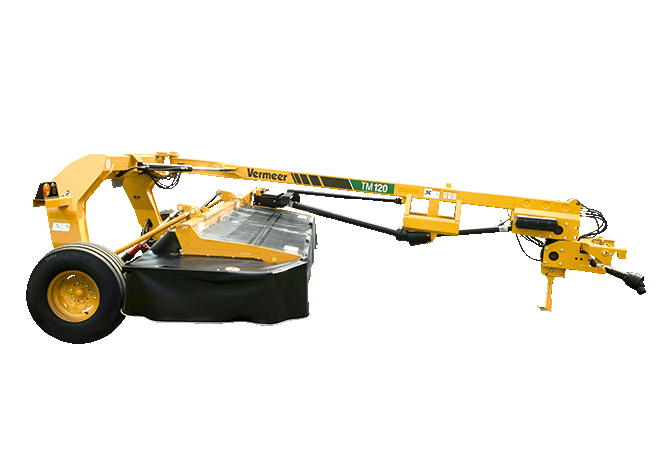

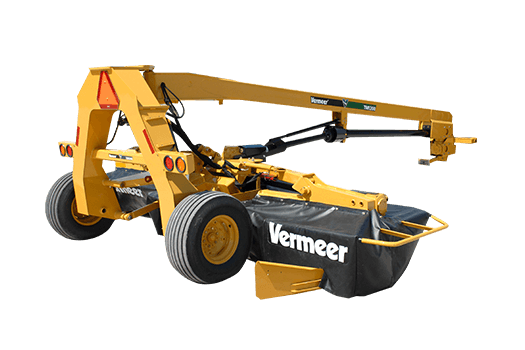

The Vermeer TM120 is a mid-sized option — 12 ft (3.6 m) cutting width — for operators who want durability and consistent cut in the field. Equipped with a Q3® cutter bar that features the Quick-Clip® blade retention system, the Quick-Change™ shear ring that helps protect the internal components of the hub if the mower encounters a potentially damaging object in the field, and a quick-check system so you know the oil levels in individual cutter units, this Vermeer trailed mower allows for quick and convenient maintenance and adjustments in the field. You can customize the mower to meet your operation’s needs with either a 2-point quick hitch or a drawbar hitch. Plus, the nitrogen-charged hydraulic suspension system optimizes ground pressure to deliver a consistent clean cut.

Convenient. Consistent. Clean cut.

The Vermeer TM120 is a mid-sized option — 12 ft (3.6 m) cutting width — for operators who want durability and consistent cut in the field. Equipped with a Q3® cutter bar that features the Quick-Clip® blade retention system, the Quick-Change™ shear ring that helps protect the internal components of the hub if the mower encounters a potentially damaging object in the field, and a quick-check system so you know the oil levels in individual cutter units, this Vermeer trailed mower allows for quick and convenient maintenance and adjustments in the field. You can customize the mower to meet your operation’s needs with either a 2-point quick hitch or a drawbar hitch. Plus, the nitrogen-charged hydraulic suspension system optimizes ground pressure to deliver a consistent clean cut. Find A Dealer Request More Info

Features & Benefits

Q3® cutter bar

Maximize productivity and minimize maintenance time with a heavy-duty, modular, shaft-driven cutter bar. Not only is it backed by the Vermeer 3-year cutter bar coverage, but two features make it quick and convenient to replace key components — the Quick-Clip® blade retention system and Quick-Change™ shear ring. Get back up and mowing in the field.

Nitrogen-charged hydraulic suspension system

Suspension largely dictates your ability to get a consistent cut. This system ensures optimal suspension to minimize ground pressure for a clean cut across the field. For varying field conditions, you can make quick and toolless suspension adjustments. Now you control how you cut.

Swivel gearbox and hydraulic pitch adjustment

Mow around tight corners with the swivel gearbox on the drawbar. With a pivoting header gearbox and a CV joint, the mower can operate on the side of or directly behind the tractor. Plus, if you ever need to mow above an obstacle in the field, simply bump a lever to raise the pitch using the tractor hydraulics. Then bump the lever back down and you’re back to the original cut height. All while the mower never leaves the ground. Full control comes with this mid-sized trailed mower.

Heavy-duty frame and large tires

The frame is the backbone of any trailed mower, and this mower is equipped with one of the most robust frames in the field. Durable components like a heavy-duty frame and large tires are ready to withstand varying field conditions for years to come.

Drawbar swivel hitch or 2-point Quick Hitch

There are two hitch options to choose from but either provide a convenient, one-person hookup — the drawbar swivel hitch or patented 2-point Quick Hitch. Both have a balanced pivoting drawbar connection to make hitching-up a hassle-free, one-person job. Hitch up and mow.

Greaseless vertical driveline and greaseless tongue pivot

Get back to mowing. The greaseless vertical driveline and greaseless tongue pivot features helps to optimize routine maintenance to get you back in the field.

Cutter bar access

Routine maintenance is unavoidable, but with the large fold-up curtain providing access to each cutter unit, it’s convenient. This cutter bar is an open book when it comes to changing blades or checking and replacing oil.

Specifications

Compare Models
Show Metric
  • Dimensions and Weights

    • Transport Height 61 in 154.9 cm
    • Transport Width - ends up 12 ft 3.7 m
    • Transport Width - ends down 12.7 ft 3.9 m
    • Transport Length 18.2 ft 5.5 m
    • Cutting Width 12 ft 3.7 m
    • Working Height 61 in 154.9 cm
    • Working Width 12.8 ft 3.9 m
    • Working Length 17.2 ft 5.2 m
    • Mower swung out offset 50 in 127 cm
    • Cutter bar lift height clearance 16 in 40.6 cm
    • Total Weight 3500 lbs 1587.6 kg
    • Tongue Weight 1200 lbs 544.3 kg
    • Suspension Hydraulic
    • Torque Protection Driveline: friction disc clutch
    • Tires 31x13.5-15
  • Tractor Requirements

    • Tongue/hitch Drawbar with swivel gearbox, OR 2-point with swivel gearbox, category II or III N
    • Drive PTO 540 rpm
    • PTO horsepower recommended 65 hp 48.5 kw
    • Hydraulic Type 2 remote, single-acting lift, double-acting swing
    • Hydraulic Pressure 1900 psi 131 bar
    • Hydraulic flow rate 6 gpm 22.7 L/min
  • Cutter bar

    • Cutter bar type Q3®
    • Cut height 1 in - 3 in (2.5 cm - 7.6 cm)
    • Number of Discs 8
    • Disc Diameter 23 in 58.4 cm
    • Disc Speed 2700 rpm
    • Number of Blades 16
    • Angle Adjustment Hydraulic pitch control
    • Quick Clip® blade retention system Standard
    • Quick-Change™ shear ring Standard
    • Curtain material 1400 g/m2 polyester woven material with flexible PVC covering
    • 3-year limited cutter bar warranty Standard
  • Features

    • Optional swath formation Optional right crop divider, standard right swath wheel
    • Skid Shoes Standard modular independent skid shoes; Optional topping shoes and wear skids
    • Highway Lights Standard

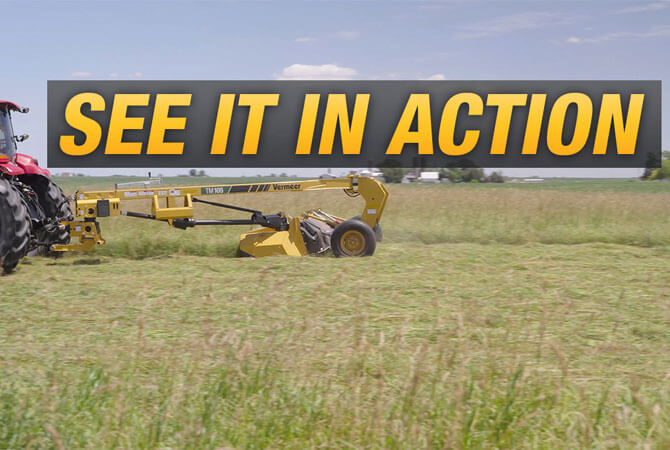

See it in action
