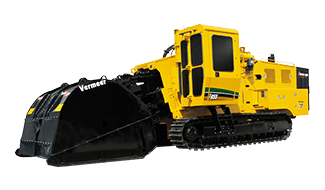

The T855III Terrain Leveler® SEM bullies through most surfaces with a powerful ATAAC Caterpillar C9 ACERT Tier 3 electronic engine. With a Terrain Leveler SEM attachment, the T855III makes short work of surface mining, construction site preparation, road demolition or soil remediation.

Make short work of surface mining and construction site preparation.

The T855III Terrain Leveler® SEM bullies through most surfaces with a powerful ATAAC Caterpillar C9 ACERT Tier 3 electronic engine. With a Terrain Leveler SEM attachment, the T855III makes short work of surface mining, construction site preparation, road demolition or soil remediation.

Find A Dealer Request More Info

Features & Benefits

TEC Plus computer-aided control system

Improve projects or construction site preparation with monitoring using the exclusive Vermeer TEC® Plus computer-aided control system.

Climate-controlled cab

Stay productive on the site with the climate-controlled cab.

Optional heavy equipment warranty

Vermeer Vantage Track Extended Care Service Program offers an optional 3-year/3000-hour or 5-year/5000-hour heavy equipment warranty on the components of the closed-loop hydrostatic system.

Specifications

Compare Models
Show Metric
  • Transport Dimensions

    • Approach Angle 20 deg
    • Height Range 131 - 143" (332.7 - 363.2 cm)(143"/363.2 cm represents the RW)
    • Length with 40" (101.6 cm) End Idler and 6 ft (1.83 m) Boom 32.8 ft 10 m
    • Length with 40" (101.6 cm) End Idler and 8 ft (2.44 m) Boom 35.3 ft 10.8 m
    • Length with 40" (101.6 cm) End Idler and 10 ft (3.05 m) Boom 37.8 ft 11.5 m
    • Length with 40" (101.6 cm) End Idler and 12 ft (3.66 m) Boom 40.3 ft 12.3 m
    • Weight Range 65,500 lb - 94,000 lb (29,483.5 kg - 42,637.7 kg)
    • Width Ranges 101"-104" (256.5 cm - 264.2 cm)
  • Engine - Option one

    • Make and Model Caterpillar C9 ACERT Tier 3
    • Gross Horsepower 350 hp 261 kw
    • Rated Engine RPM 2200
    • Number of Cylinders 6
    • Fuel Tank Capacity 172 gal 651.1 L
    • Operating Range 9.4 hours
    • Fuel Consumption at Full Load 18.3 gph 69.3 lph
    • Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles) 40 deg
    • Air Cleaner Dry-type exhaust aspirated
    • Aspiration Turbocharged and air-to-air aftercooled
    • Cooling Medium Liquid
    • Electrical System 24 Volt DC
    • Oil Filter Full flow
  • Engine - Option two

    • Make and Model Caterpillar C9 ACERT Tier 4 Final
    • Gross Horsepower 350 hp 261 kw
    • Rated Engine RPM 2200
    • Number of Cylinders 6
    • Fuel Tank Capacity 172 gal 651.1 L
    • Operating Range 9.4 hours
    • Fuel Consumption at Full Load 18.3 gph 69.3 lph
    • Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles) 40 deg
    • Air Cleaner Dry-type with precleaner
    • Aspiration Turbocharged and air-to-air aftercooled
    • Cooling Medium Liquid
    • Electrical System 24 Volt DC
    • Oil Filter Full flow
  • Tracks

    • Auto Self Level Yes
    • Ground Pressure Minimum 11 psi 75.8 kPa
    • Ground Pressure Maximum 16.4 psi 113.1 kPa
    • Tilt Track Available Yes
    • Tilt Track Max Angle +/- 9 degrees or +/- 12 degrees
    • Track Drive Type Dual path hydrostatic with planetary transmission
    • Track Length 147 in 373.4 cm
    • Track Pad Type Single, double or triple grouser
    • Track Pad Width Ranges 20" or 24" (50.8 or 61 cm)
    • Track Size D6
    • Maximum Ground Speed - Low 106.3 ft/min 32.4 m/min
    • Maximum Ground Speed - High 213 ft/min 64.9 m/min
    • Parking and Emergency Brake spring-applied, hydraulic release, wet disc brake
    • Service Brakes Hydrostatic
  • Conveyor

    • Belt Width 30 in 76.2 cm
    • Conveyor Belt Speed Range 0-917 fpm (0-279.5 m/min )
    • Conveyor Belt Style Cleat or finger type
    • Conveyor Length 96" or 156" (243.8 cm or 396.2 cm)
    • Conveyor Shift Available Yes
    • Conveyor Shift Distance Range 1.5" and 61.5" (3.8 cm and 156.2 cm)
    • Conveyor Style Curved
    • Discharge Direction Right or left
    • Discharge Height Range 72.5" (184.2 cm)
  • Attachments

    • Trencher Yes
    • Terrain Leveler Yes
    • Terrain Leveler cutting width 102 in 259.1 cm
    • Rockwheel Yes
    • Bucket Wheel No
  • Cab

    • Cab Yes
    • Control System TEC Plus with SmartTEC
    • Air Conditioner/Heater Yes
    • Air Suspension Seat No
    • AM/FM Stereo with Weather Band Yes
    • Elevating Yes
    • Pressurized/Filtered Air Yes
    • Rollover Protective Structure (ROPM) Yes
  • Hydraulic System

    • Oil Tank Capacity 145 gal 548.9 L
    • Oil Type Vermeer HyPower 68 or Vermeer HyPower 100
    • Pressure Setting 2500 psi 172.4 bar
    • Pump Flow at Maximum RPM 30.2 gpm 114.3 L/min
    • Pump Type pressure-and-flow-compensated (load-sensing)
