TE485 Tedder

Features and Benefits

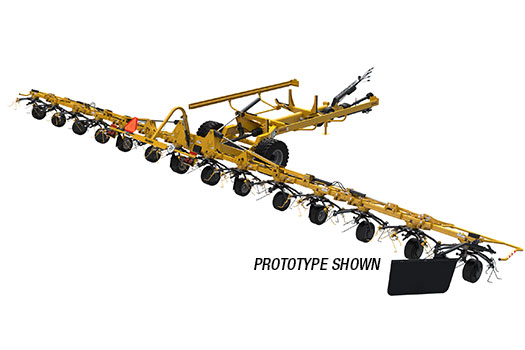

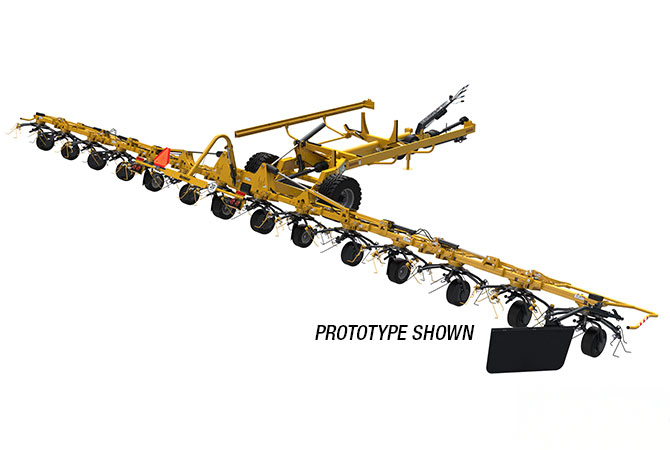

TE485 tedder

Specifications

Compare Models
Show Metric
  • Dimensions and Weights

    • Tedding width 48.6 ft 14.8 m
    • Transport Height 8.2 ft 2.5 m
    • Transport Width 9.8 ft 3 m
    • Transport Length 20.5 ft 6.2 m
    • Total Weight 7430 lbs 3370.2 kg
    • Tongue Weight 2580 lbs 1170.3 kg
    • Tire size 16x6.50-8 (outer), 16x9.50-8 (center)
    • Transport tire size 380/55-17
    • Basket tilt and adjustment Standard hydraulic adjustment
    • Number of Baskets 14
    • Tine Arms per Basket 6
    • Type of Tine Hook tine
    • Torque protection driveline Cut-out clutch and over-running clutch
  • Tractor Requirements

  • Features
