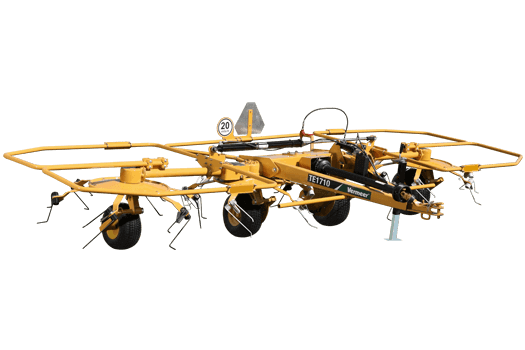

Forget the sit-and-wait method. Speed up dry-down time by 20 to 30 percent* with the 17 ft (5.2 m) Vermeer TE1710 tedder.

Find A Dealer Request More Info

A unique hook tine design allows the tedder to pick up and spread large amounts of crop by creating a “bottoms-up” motion for even distribution and quick crop aeration.

The large, durable basket wheels with 5-bolt hubs offer ground contouring and flotation in the field and a smooth ride on the road. Plus, it includes the convenient maintenance and durability you’ve come to expect in Vermeer equipment. Vermeer TE1710: spread the word.

*Tim Schnakenberg, University of Missouri, Makin Hay Minute: Tedders: Why and When to Use Them. See the video.

Forget the sit-and-wait method. Speed up dry-down time by 20 to 30 percent* with the 17 ft (5.2 m) Vermeer TE1710 tedder.

A unique hook tine design allows the tedder to pick up and spread large amounts of crop by creating a “bottoms-up” motion for even distribution and quick crop aeration.

The large, durable basket wheels with 5-bolt hubs offer ground contouring and flotation in the field and a smooth ride on the road. Plus, it includes the convenient maintenance and durability you’ve come to expect in Vermeer equipment. Vermeer TE1710: spread the word.

*Tim Schnakenberg, University of Missouri, Makin Hay Minute: Tedders: Why and When to Use Them. See the video.

Find A Dealer Request More Info

Features & Benefits

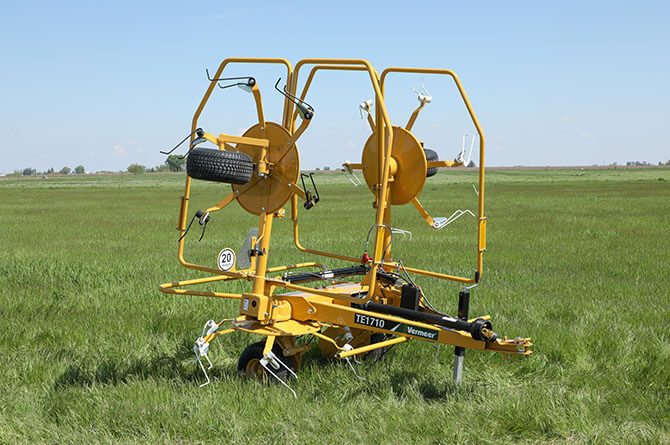

Hook tines

Hook tines staggered in length are designed to help wet crop on bottom be gently placed on top for a quick, consistent dry down.

Heavy-duty, solid-frame construction

Designed and built in North America for farmers and ranchers in North America. Heavy-duty, solid-frame construction provides stability and durability, while the radial pin clutch protects the drive components and center gearbox. The reinforced tongue offers longevity to help 10-series tedders perform year after year.

Large, durable tires

Large, durable tires supported by strong spindles allow for ground contouring and flotation with quiet and convenient transport from field to field.

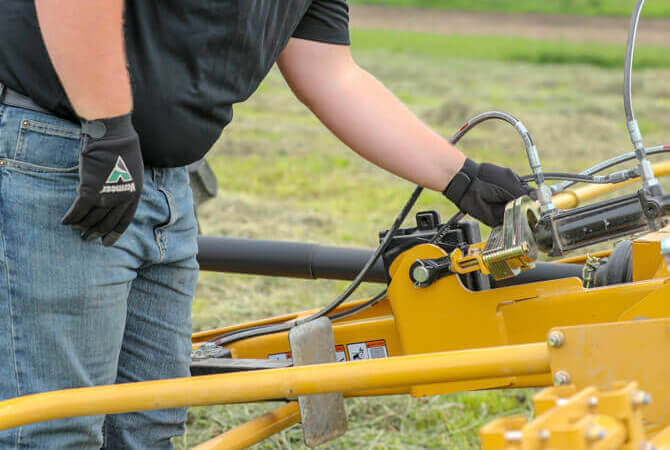

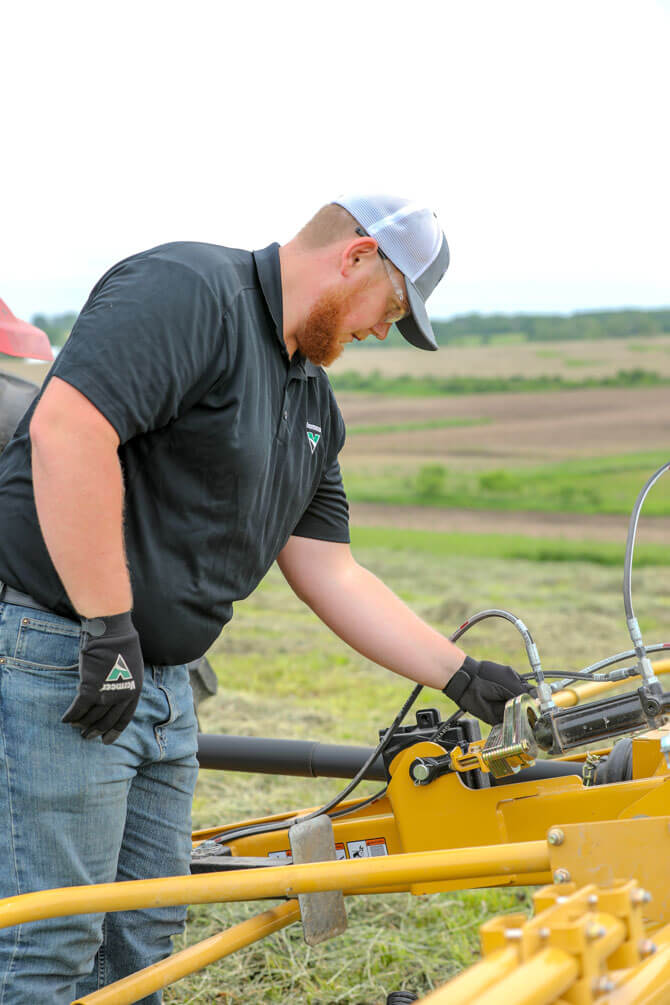

Adjustable basket angle and height

Convenient adjustments to basket angle and height allow operators to match the field and crop conditions.

Specifications

Compare Models
Show Metric
  • Dimensions and Weights

    • Tedding width 17 ft 5.2 m
    • Transport Height 8.5 ft 2.6 m
    • Transport Width 9 ft 2.7 m
    • Transport Length 7.2 ft 2.2 m
    • Total Weight 1480 lbs 671.3 kg
    • Tongue Weight 240 lbs 108.9 kg
    • Tire size 18.5 x 8.5-8
    • Basket tilt and adjustment Hydraulic, toolless adjustment
    • Number of Baskets 4
    • Tine Arms per Basket 6
    • Type of Tine Hook tine
    • Torque protection driveline Radial pin clutch
  • Tractor Requirements

  • Features

See it in action

Video 4
Video 3
Image 1
Video 1
Image 2
Image 3
Video 2
Image 4
Image 5
