Designed for speed, convenience and reliability, and priced for the budget-conscious operator.

Find A Dealer Request More Info

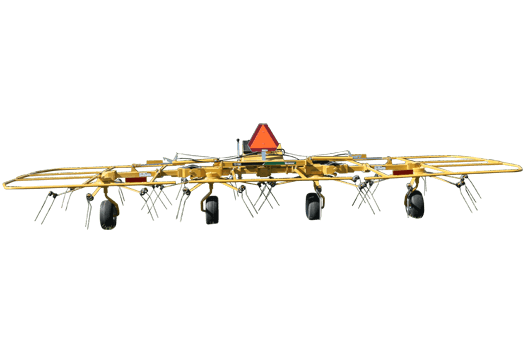

The TD190 teds at 19 ft (5.8 m) and is equipped with four rotors and hydraulic folding for quick, convenient transport. Designed for smooth, gentle handling at maximum ground speeds, even when handling heavy, matted-down windrows.  It’s the affordable, no-frills tedder you’ve been waiting for.

Designed for speed, convenience and reliability, and priced for the budget-conscious operator.

The TD190 teds at 19 ft (5.8 m) and is equipped with four rotors and hydraulic folding for quick, convenient transport. Designed for smooth, gentle handling at maximum ground speeds, even when handling heavy, matted-down windrows.  It’s the affordable, no-frills tedder you’ve been waiting for. Find A Dealer Request More Info

Features & Benefits

Six double tines per basket

Six double tines on each basket help to gently pick up a small quantity of forage, flip it and lay it back on the ground without damage or ash. The tender turn of the hay helps quicken dry down time by exposing the crop to sun and air. Decreasing dry down time allows you to get the hay off the field sooner.

Toolless pitch adjustment

The toolless pitch adjustment crank allows you to set proper pitch adjustment, which is crucial to get an accurate flip of the hay. Accurate pitch adjustment minimizes ash content and wear on the machine.

Outer mounted rotors

If you are going to take the time to make another pass in the field and ted, you want to make sure to avoid missing any crop. The outer mounted rotors on the TD190 automatically follow the uneven ground to turn hay, even in low spots.

Specifications

Compare Models
  • Standard Features

    • SMV Sign Yes
  • Tractor Requirements

    • PTO Horsepower Requirements 25 hp 18.6 kw
    • Hydraulic requirements 1 single-acting
    • Hydraulic Pressure 1500 psi 103.4 bar
    • Hitch Drawbar
    • Drive - PTO 540 rpm
  • Dimensions and Weights - Approximate

    • Tedding width 19.5 ft 5.9 m
    • Transport Height 9.6 ft 2.9 m
    • Transport Width 10.9 ft 3.3 m
    • Transport Length 10.4 ft 3.2 m
    • Weight 1225 lbs 555.7 kg
    • Tire size 16 x 6.5-8
    • Basket Angle Adjustment Style Adjustable screw
    • Number of Baskets 4
    • Tine Arms per Basket 6
    • Type of Tine Straight tine
    • Torque Protection - Driveline Radial pin clutch
    • Operating Speed (Maximum) 9 mph 14.5 km/h
  • Options

    • Safety Chain Yes
