VRC820 Carted Wheel Rake

Features and Benefits

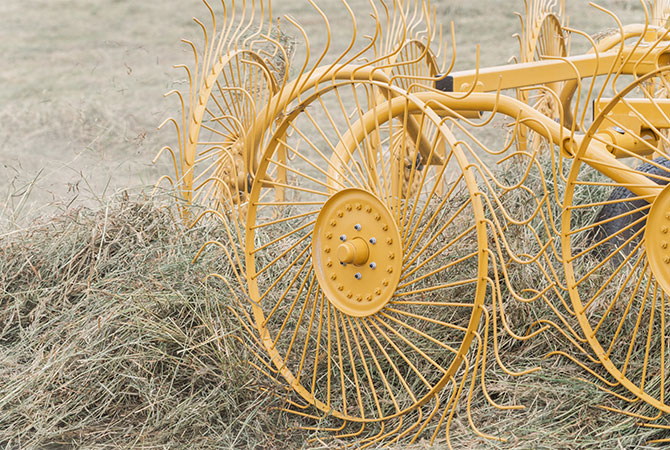

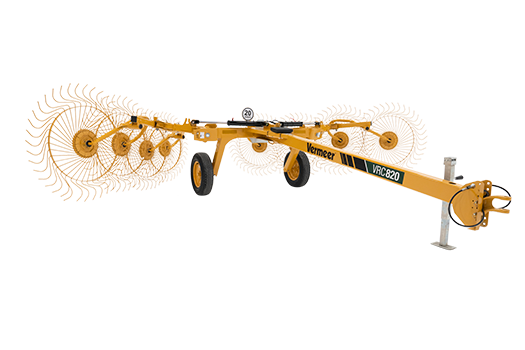

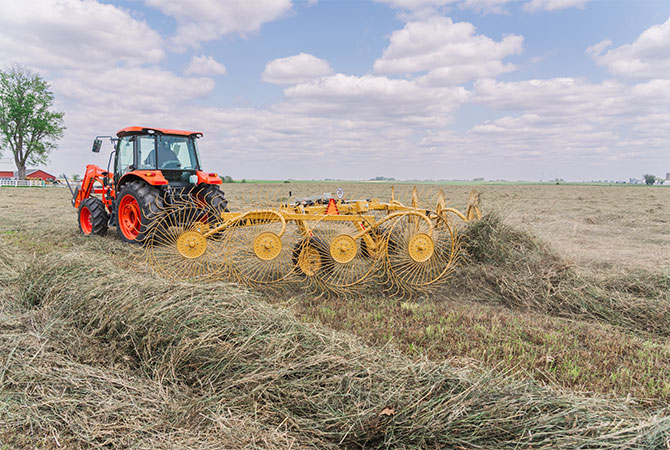

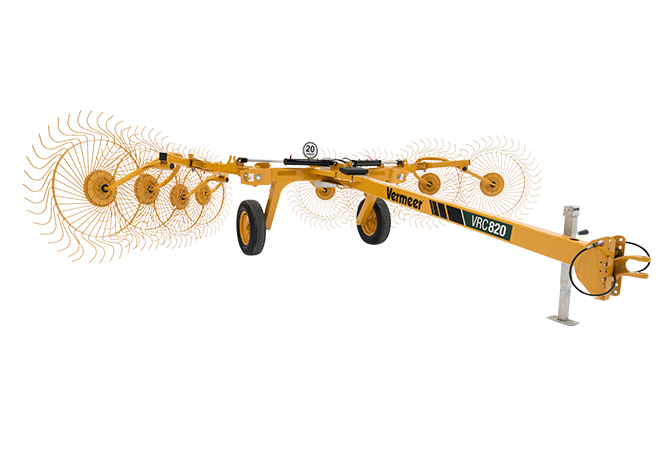

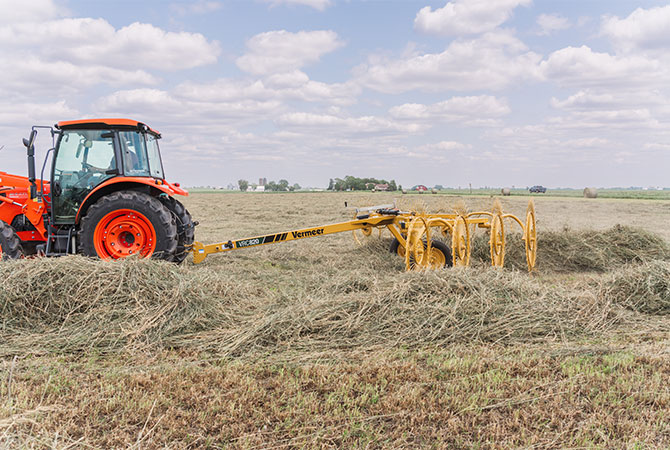

VRC820 carted wheel rake
Enhance dry-down and minimize crop loss with the optional dual-wheel center splitter.

Specifications

Compare Models
Show Metric
  • Dimensions and Weights

    • Raking width minimum 17.2 ft 5.2 m
    • Raking width maximum 20.1 ft 6.1 m
    • Windrow width minimum 32 in 81.3 cm
    • Windrow width maximum 94 in 238.8 cm
    • Transport Width 10 ft 3 m
    • Transport Length 20 ft 6.1 m
    • Transport Height 9.4 ft 2.9 m
    • Total Weight 2200 lbs 997.9 kg
    • Tongue Weight 480 lbs 217.7 kg
    • Transport tire size ST205/75D15
    • Flotation Rubber torsion on toolbar
  • Raking components

  • Tractor Requirements

  • Features
