VRC1224 Carted Wheel Rake

Features and Benefits

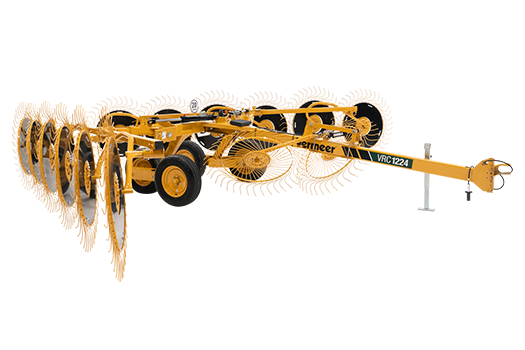

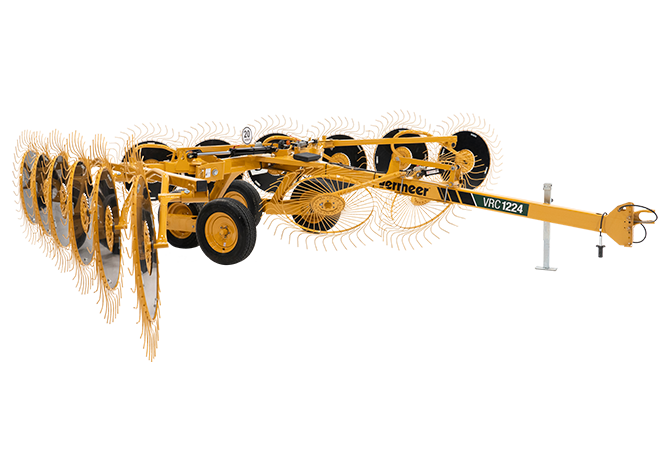

VRC1224 carted wheel rake

Specifications

Compare Models
Show Metric
  • Dimensions and Weights

    • Raking width minimum 19.7 ft 6 m
    • Raking width maximum 24.3 ft 7.4 m
    • Windrow width minimum 24 in 61 cm
    • Windrow width maximum 101 in 256.5 cm
    • Transport Width 10.2 ft 3.1 m
    • Transport Length 23 ft 7 m
    • Transport Height 9.4 ft 2.9 m
    • Total Weight 2600 lbs 1179.3 kg
    • Tongue Weight 480 lbs 217.7 kg
    • Transport tire size ST205/75D15
    • Flotation Rubber torsion on toolbar
  • Raking components

  • Tractor Requirements

  • Features
