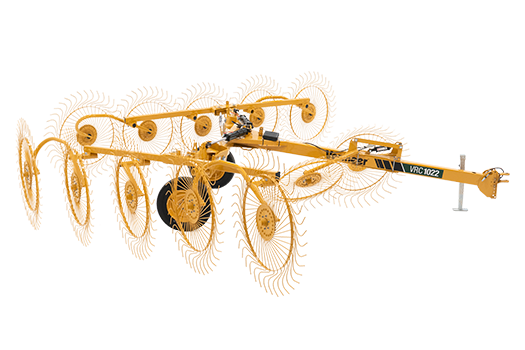

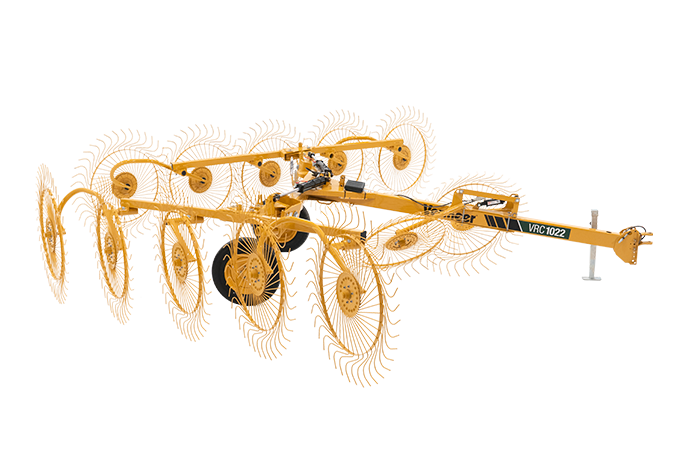

VRC1022 Carted Wheel Rake

Features and Benefits

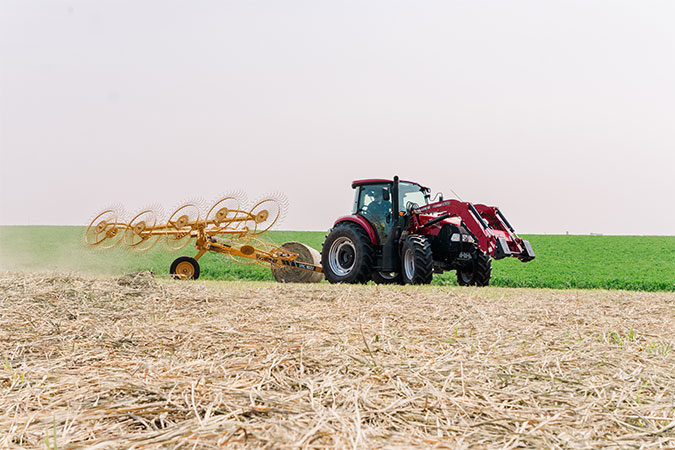

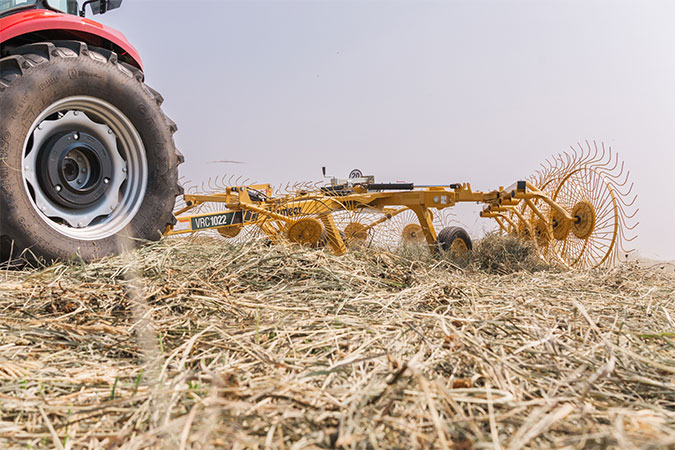

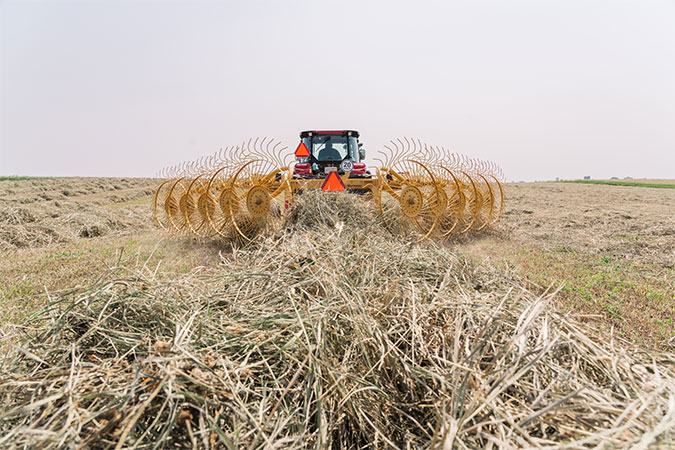

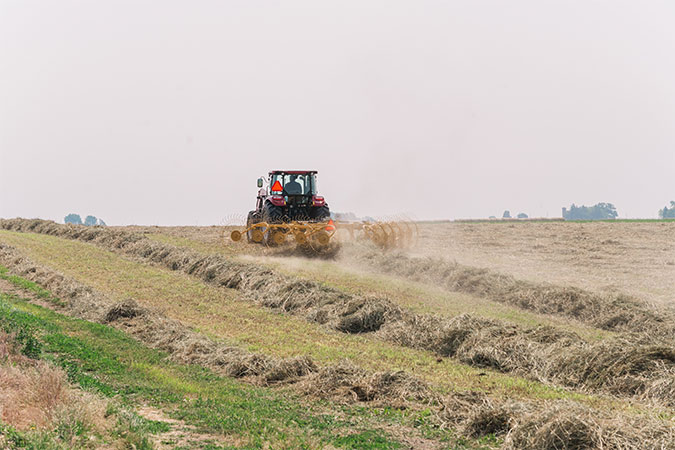

VRC1022 carted wheel rake

Specifications

Compare Models
Show Metric
  • Dimensions and Weights

    • Raking width minimum 19 ft 5.8 m
    • Raking width maximum 22.5 ft 6.9 m
    • Windrow width minimum 21 in 53.3 cm
    • Windrow width maximum 87 in 221 cm
    • Transport Width 10 ft 3 m
    • Transport Length 20.2 ft 6.2 m
    • Transport Height 9.4 ft 2.9 m
    • Total Weight 2350 lbs 1065.9 kg
    • Tongue Weight 480 lbs 217.7 kg

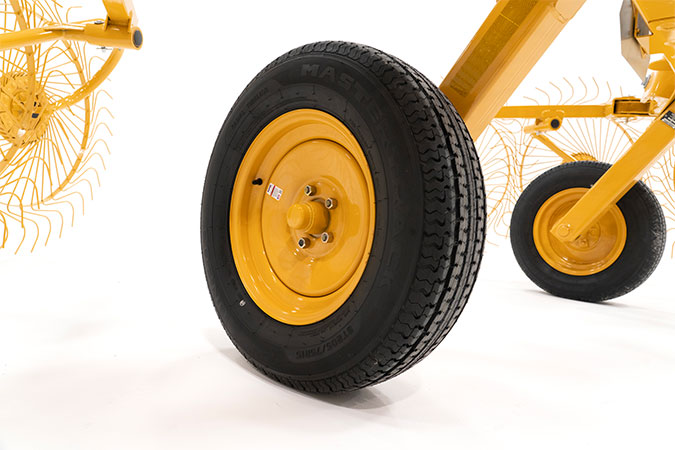

    • Transport tire size ST205/75D15
    • Flotation Rubber torsion on toolbar
  • Raking components

  • Tractor Requirements

  • Features
