VRB14 High-Capacity Bifold Wheel Rake

VRB14 High-Capacity Bifold Wheel Rake

High capacity meets cost-effective

Find A Dealer Request More Info
The Vermeer VRB14 high-capacity bifold wheel rake is built for durability and versatility. With 14 wheels, a 28.5-foot (8.8-m) raking width and a bifold frame designed for optimal ground clearance, you can rake heavy crops with confidence. Toolless adjustments and 60-in (152-cm) rake wheels allow you to maintain your productivity in the field.

High capacity meets cost-effective

The Vermeer VRB14 high-capacity bifold wheel rake is built for durability and versatility. With 14 wheels, a 28.5-foot (8.8-m) raking width and a bifold frame designed for optimal ground clearance, you can rake heavy crops with confidence. Toolless adjustments and 60-in (152-cm) rake wheels allow you to maintain your productivity in the field. Find A Dealer Request More Info

Features & Benefits

High-capacity bifold frame

Optimal ground clearance with the bifold frame helps you avoid obstacles and optimize crop flow into the windrow. Plus, you can go from raking to transporting quickly as the rake opens and closes hydraulically from the cab.

Durability

A rugged, reinforced bifold frame and heavy-duty components make this a highly durable rake for its class, helping you to maximize machine life and to rake in heavy crops or challenging terrain.

Large-diameter rake wheels

Maximize your productivity with optimal clearing action and crop flow with the standard 60-inch (152-cm) rake wheels.

Toolless ground pressure adjustment

Make quick ground pressure adjustments for consistent raking in varying ground conditions by adjusting a pin location on each toolbar.

Optional tandem wheels

Help provide a smooth, level ride to contour the ground in varying conditions with tandem wheels.

Toolless width adjustment

Rake can be changed hydraulically to help maximize productivity and to fit your baler pickup. Windrow width can be toollessly adjusted with a ratchet lever or optional hydraulic windrow width adjustment circuit.

Optional center splitter

Achieve an even dry-down for center swath hay with an optional center splitter. The splitter lifts and locks hydraulically for transport and can be raised and lowered when turning tight corners.

Option for single-sided raking

Enable single-sided raking in seconds without any tools by selecting either left- or right-side raking configurations.

Specifications

Compare Models
Show Metric
  • Dimensions and Weights

    • Raking width maximum 28.5 ft 8.7 m
    • Windrow width minimum 36 in 91.4 cm
    • Windrow width maximum 72 in 182.9 cm
    • Transport Width 8.3 ft 2.5 m
    • Transport Length 32.7 ft 10 m
    • Transport Height 6.4 ft 2 m
    • Total Weight 5070 lbs 2299.7 kg
    • Tongue Weight 1742 lbs 790.2 kg
    • Transport tire size 205/75-R15
    • Flotation Steel spring on individual rake wheel
  • Raking components

    • Number of Rake Wheels 14
    • Rake wheel diameter 60 in 152.4 cm
    • Teeth per wheel 40
    • Tooth diameter .3 in .8 cm
    • Rake wheel wind discs Optional
    • Single-side raking Optional
  • Tractor Requirements

    • PTO horsepower minimum 40 hp 29.8 kw
    • Hydraulic Type 2 double-acting
    • Hydraulic Pressure 1800 psi 124.1 bar
    • Hydraulic flow rate 5 gpm 18.9 L/min
  • Features

    • Highway Lights Standard
    • Safety Chain Standard
    • Center splitter Optional

Literature

See it in action

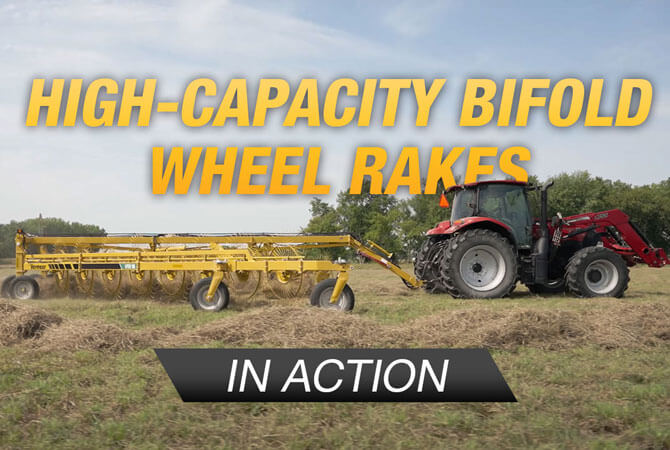

Video 2

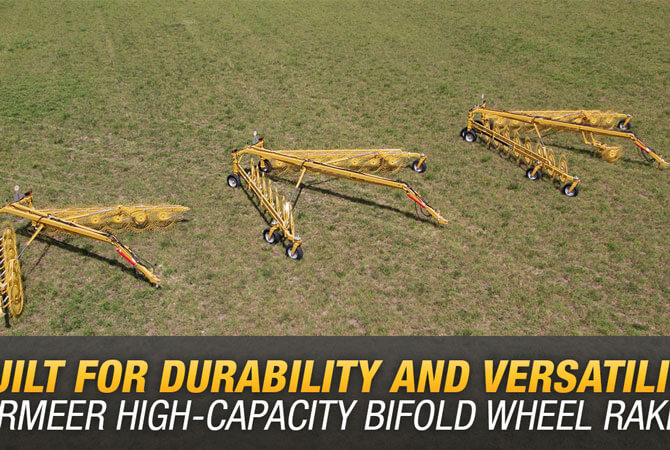

Video 1
