VR820 Carted Wheel Rake

VR820 Carted Wheel Rake

Decidedly different.

Find A Dealer Request More Info

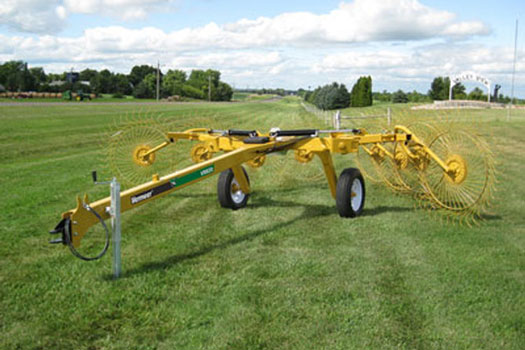

Just like other Vermeer innovations, the VR820 carted wheel rake combines high performance and superior reliability with features that make it easy to operate. Rake field after field with ease, thanks to a rugged channel tongue with adjustable hitch heights and telescoping tool bars that allow you to change raking and windrow widths with ease. Patented rubber torsion toolbar suspension requires no tools. Single-side raking is easily achieved by simply turning a valve.

Decidedly different.

Just like other Vermeer innovations, the VR820 carted wheel rake combines high performance and superior reliability with features that make it easy to operate. Rake field after field with ease, thanks to a rugged channel tongue with adjustable hitch heights and telescoping tool bars that allow you to change raking and windrow widths with ease. Patented rubber torsion toolbar suspension requires no tools. Single-side raking is easily achieved by simply turning a valve.

Find A Dealer Request More Info

Features & Benefits

Eight wheels per wing

Rake up to 20 ft (6 m) in each pass with eight wheels on each wing.

Adjustable rake without tools

No tool adjustment because raking width and angle can be changed easily without tools to increase or decrease windrow size.

Greaseable tapered roller bearings

Keep it running smooth with greaseable tapered roller bearings on the rake wheels and transport wheels.

High-clearance frame

High-clearance frame allows for heavy hay crops to pass through easily for windrow formation.

Specifications

Compare Models
  • Dimensions and Weights

    • Raking width minimum 16.6 ft 5.1 m
    • Raking width maximum 19 ft 5.8 m
    • Windrow width minimum 31 in 78.7 cm
    • Windrow width maximum 80 in 203.2 cm
    • Transport Width 10 ft 3 m
    • Transport Length 20 ft 6.1 m
    • Transport Height 9.4 ft 2.9 m
    • Total Weight 1370 lbs 621.4 kg
    • Tongue Weight 200 lbs 90.7 kg
    • Transport tire size ST205/75D15
    • Flotation Rubber torsion on toolbar
  • Raking components

    • Number of Rake Wheels 8
    • Rake wheel diameter 55 in 139.7 cm
    • Teeth per wheel 40
    • Tooth diameter .3 in .8 cm
    • Rake wheel wind discs Optional
    • Single-side raking Standard left- or right-side capable
  • Tractor Requirements

    • PTO horsepower minimum 30 hp 22.4 kw
    • Hydraulic Type 1 double-acting
    • Hydraulic Pressure 1500 psi 103.4 bar
    • Hydraulic flow rate 5 gpm 18.9 L/min
  • Features

    • Safety Chain Optional
    • Center splitter Optional
