VR2040 High-Capacity Wheel Rake

VR2040 High-Capacity Wheel Rake

Serious flexibility.

Find A Dealer Request More Info

Harness the power and innovation of the Vermeer high-capacity wheel rake in an even larger package with the VR2040 high-capacity wheel rake. A 40-ft (12.2-m) raking width and unique wheel suspension system offer maximum efficiency and raking power. Cover more acres in less time – and with minimal maintenance – with the rugged VR2040 high-capacity wheel rake.

Serious flexibility.

Harness the power and innovation of the Vermeer high-capacity wheel rake in an even larger package with the VR2040 high-capacity wheel rake. A 40-ft (12.2-m) raking width and unique wheel suspension system offer maximum efficiency and raking power. Cover more acres in less time – and with minimal maintenance – with the rugged VR2040 high-capacity wheel rake.

Find A Dealer Request More Info

Features & Benefits

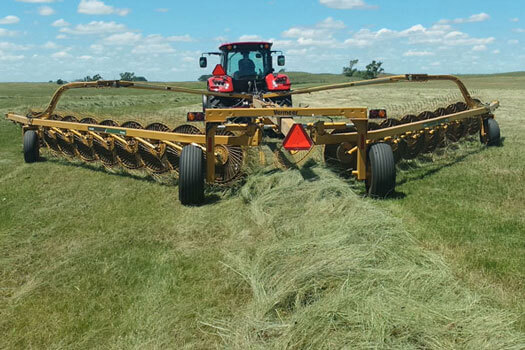

Optional center splitter attachment

Adopted from the Vermeer VR-Series carted wheel rakes, the highly popular, optional center splitter attachment provides an exclusive dual rake wheel configuration that gently sweeps and turns the crop in the center of the swath.

Consistent downforce

Consistent downforce on rake wheels through the entire range of motion for improved tooth life and crop pickup with less dirt content in the windrow than a traditional spring-loaded wheel rake.

Easily adjustable rake wheel settings and pressure

Dual-purpose lift and suspension cylinder on each rake wheel coupled with a nitrogen-charged accumulator for easily changing rake wheel settings and pressure.

One-piece rake arms

Unique rake design featuring one-piece rake arms – in conjunction with hydraulic suspension on each rake wheel – provides superior rake flexibility with less maintenance than similar-sized rakes that require a pivot joint and additional caster wheel in the middle of the rake arm.

Wide range of motion

Superior vertical rake arm travel and ground contour following with the ability to flex 40 in (101.6 cm) down or 66 in (167.6 cm) up, equating to a range of motion of over 8 ft (2.4 m).

Specifications

Compare Models
  • Dimensions and Weights

    • Raking width minimum 25 ft 7.6 m
    • Raking width maximum 40 ft 12.2 m
    • Windrow width minimum 36 in 91.4 cm
    • Windrow width maximum 72 in 182.9 cm
    • Transport Width 12 ft 3.7 m
    • Transport Length 38 ft 11.6 m
    • Transport Height 6.3 ft 1.9 m
    • Total Weight 6780 lbs 3075.4 kg
    • Tongue Weight 1840 lbs 834.6 kg
    • Transport tire size 14L x 16.1
    • Flotation Hydraulic
    • Drive Hydraulic
  • Raking components

    • Number of Rake Wheels 20
    • Rake wheel diameter 55 in 139.7 cm
    • Teeth per wheel 40
    • Tooth diameter .3 in .8 cm
    • Rake wheel wind discs Optional
  • Tractor Requirements

    • PTO horsepower minimum 60 hp 44.7 kw
    • Hydraulic Type 3 double-acting
    • Hydraulic Pressure 1800 psi 124.1 bar
    • Hydraulic flow rate 5 gpm 18.9 L/min
  • Features

    • Highway Lights Standard
    • Safety Chain Optional
    • Center splitter Optional
