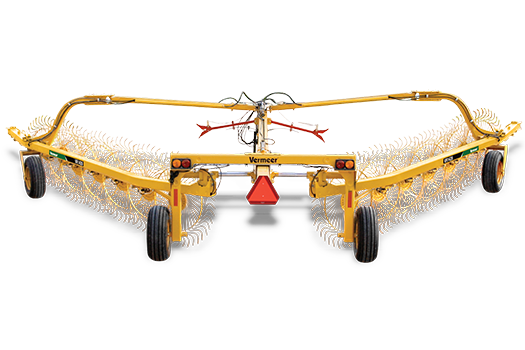

VR1428 High-Capacity Wheel Rake

VR1428 High-Capacity Wheel Rake

Serious flexibility.

Find A Dealer Request More Info

The heavy-duty VR1428 high-capacity wheel rake is capable of raking 28 ft (8.5 m) wide in one pass – yet nimble enough to maneuver like rakes much smaller in size. It offers producers more capacity and the ability to handle more acres in less time, with fewer maintenance issues by combining rugged construction, smart, streamlined design and functionality with simple, tool-free adjustments.

Serious flexibility.

The heavy-duty VR1428 high-capacity wheel rake is capable of raking 28 ft (8.5 m) wide in one pass – yet nimble enough to maneuver like rakes much smaller in size. It offers producers more capacity and the ability to handle more acres in less time, with fewer maintenance issues by combining rugged construction, smart, streamlined design and functionality with simple, tool-free adjustments.

Find A Dealer Request More Info

Features & Benefits

Easily adjustable rake wheel settings and pressure

With a lift/suspension cylinder on each wheel and the nitrogen-charged accumulator, changing rake wheel settings  and pressure is easy! Simply change the pressure settings on the accumulator.

Heavy-duty construction

Heavy-duty construction throughout – non-telescoping, non-bolted joint straight tongue, as well as bent tube frame and fold arms.

Closely positioned to tractor

Handles like many smaller-capacity rakes because it’s closely positioned to the tractor when operating in the rake position.

Optional center splitter attachment

Adopted from the Vermeer VR-Series carted wheel rakes, the highly popular, optional center splitter attachment provides an exclusive dual rake wheel configuration that gently sweeps and turns the crop in the center of the swath.

Specifications

Compare Models
  • Dimensions and Weights

    • Raking Width - Minimum 22 ft 6.7 m
    • Raking Width - Maximum 28 ft 8.5 m
    • Windrow Width - Minimum 36 in 91.4 cm
    • Windrow Width - Maximum 72 in 182.9 cm
    • Transport Width 10.5 ft 3.2 m
    • Transport Length 31.1 ft 9.5 m
    • Working Width 32 ft 9.8 m
    • Working Length 26.2 ft 8 m
    • Working Height 6.3 ft 1.9 m
    • Wing Flex Up 36 in 91.4 cm
    • Wing Flex Down 48 in 121.9 cm
    • Windrow Clearance 18 in 45.7 cm
    • Weight - Total 5040 lbs 2286.1 kg
    • Weight - Tongue 1300 lbs 589.7 kg
  • Tractor Requirements

    • Horsepower 40 hp 29.8 kw
    • Hydraulics - Type Three double acting
    • Hydraulic Pressure 1800 psi 124.1 bar
    • Hydraulic - Flow Rate 5 gpm 18.9 L/min
  • Standard Details

    • Rake Style High capacity V-rake
    • Rake Wheel - Quantity 14
    • Rake Wheel - Diameter 55 in 139.7 cm
    • Rake Wheel - Hubs Tapered roller bearings
    • Rake Wheel - Teeth per Wheel 40
    • Rake Wheel Tooth Diameter .3 in .7 cm
    • Transport Wheels - Size 11L-15 Intermitent highway rated
    • Transport Wheels - Qty 2
    • Gauge Wheels - Size 11L-15 Intermitent highway rated
    • Gauge Wheels - Quantity 2
    • Transport Lights Yes
    • Hitch Jack Yes
    • Speed - Maximum 14 mph 22.5 km/h
  • Optional Features

    • Central Kicker Center spiltter - two wheel
    • Safety Chain Yes

Literature

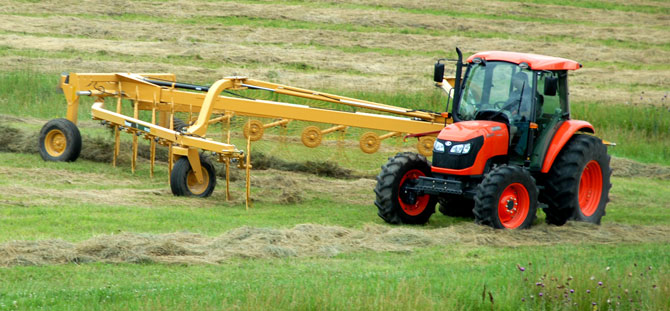

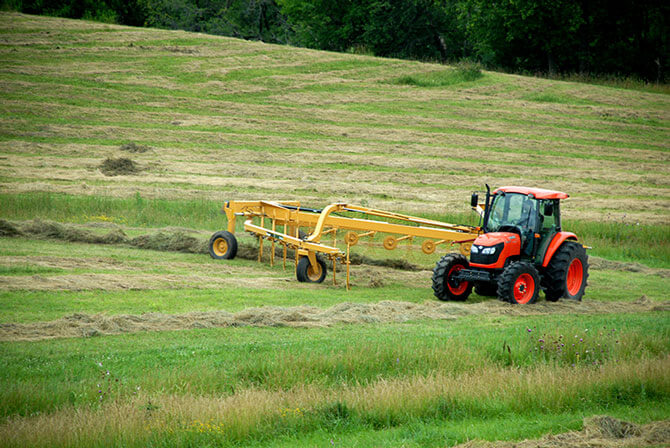

See it in action
