RR235c Rotary Rake

Features and Benefits

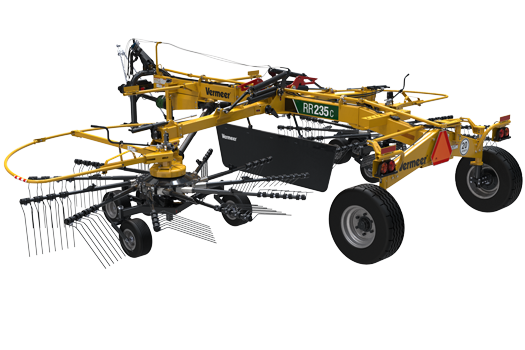

Vermeer RR235c rotary rake
Optimize raking height and prevent field damage with convenient toolless adjustments for precise control during operation.

Specifications

Compare Models
Show Metric
  • Dimensions and Weights

    • Raking width minimum 21.5 ft 6.6 m
    • Raking width maximum 23.4 ft 7.1 m
    • Windrow width minimum 51 in 129.5 cm
    • Windrow width maximum 73 in 185.4 cm
    • Transport Width 9.8 ft 3 m
    • Transport Length 18.1 ft 5.5 m
    • Transport Height 11.4 ft 3.5 m
    • Total Weight 3968 lbs 1799.9 kg
    • Tongue/hitch weight 1706 lbs 773.8 kg
    • Transport tire size 380/55-17
    • Rotor tire size 16x6.50-8
    • Flotation 3x walking tandem axle under each rotor
    • Drive PTO
  • Raking components

  • Tractor Requirements

  • Features
