More hay in a day.

Find A Dealer Request More Info

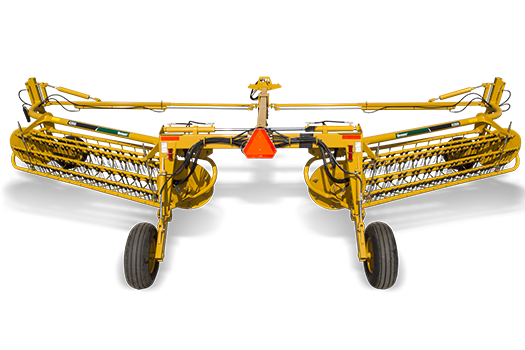

Get great-looking bales quickly and easily. It all starts with the Vermeer R2800 twin rake, which produces box-shaped windrows. Built to last, the R2800 allows you to adjust the width of the windrows to match your baler. Control the width, basket lift and folding/unfolding systems right from the cab of your tractor.

More hay in a day.

Get great-looking bales quickly and easily. It all starts with the Vermeer R2800 twin rake, which produces box-shaped windrows. Built to last, the R2800 allows you to adjust the width of the windrows to match your baler. Control the width, basket lift and folding/unfolding systems right from the cab of your tractor.

Find A Dealer Request More Info

Features & Benefits

Rubber-mounted rake teeth

Keep hay clean because the hydraulically driven baskets have rubber-mounted rake teeth that engage the crop, not the ground.

Optional powered splitter attachment

Choose the optional powered splitter attachment with rear tires that can be located inside or outside the mainframe.

Hydraulic basket lift

Protect raked windrow ends by engaging the hydraulic basket lift, which lifts the rake up 14 in (35.6 cm) over the rows.

Large, caster-type wheels

Travel over uneven terrain with large, caster-type wheels to cushion your ride.

Specifications

Compare Models
  • Optional Features

    • Safety Chain Available
    • Single Side Raking Available
  • Standard Details

    • Rake Style Basket V-rake
    • Basket - Bars/Basket 7
    • Basket - Tines/Basket 182
    • Basket - Length 12 ft 3.7 m
    • Transport Wheels - Size 11L-15 Intermitent Highway Rated
    • Transport Wheels - Qty 2
    • Gauge Wheels - Size 27
    • Gauge Wheels - Quantity 2
    • Transport Lights Yes
    • Hitch Jack Yes
    • Speed - Maximum 10 mph 16.1 km/h
  • Tractor Requirements

    • Horsepower 70 hp 52.2 kw
    • Hydraulics - Type Two double acting
    • Hydraulic Pressure 1800 psi 124.1 bar
    • Hydraulic - Flow Rate 8 gpm 30.3 L/min
  • Dimensions and Weights

    • Raking Width - Minimum 19 ft 5.8 m
    • Raking Width - Maximum 28 ft 8.5 m
    • Windrow Width - Minimum 30 in 76.2 cm
    • Windrow Width - Maximum 84 in 213.4 cm
    • Transport Width 8.4 ft 2.6 m
    • Transport Length 24.8 ft 7.5 m
    • Weight - Total 4540 lbs 2059.3 kg
    • Weight - Tongue 1960 lbs 889 kg

Literature

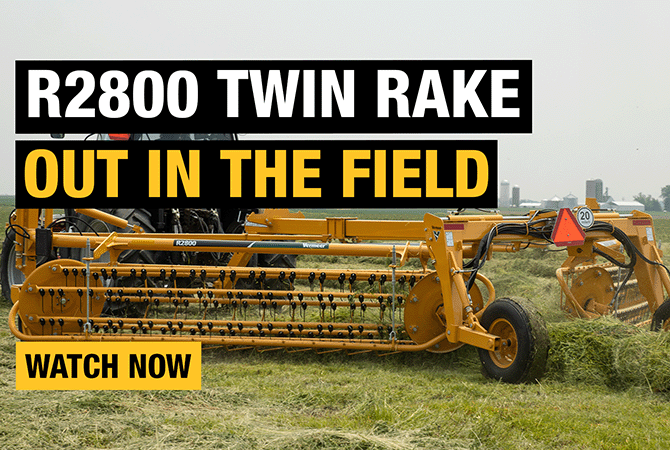

See it in action
