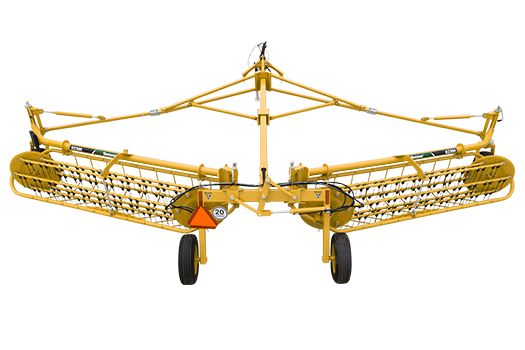

The secret to good bales starts with box-shaped windrows. That’s what the Vermeer R2300 twin rake is designed to produce. Built to last, the R2300 allows you to adjust the width of the windrows to match your baler. Control the width, basket lift and folding/unfolding systems right from the cab of your tractor.

More hay in a day.

The secret to good bales starts with box-shaped windrows. That’s what the Vermeer R2300 twin rake is designed to produce. Built to last, the R2300 allows you to adjust the width of the windrows to match your baler. Control the width, basket lift and folding/unfolding systems right from the cab of your tractor.

Find A Dealer Request More Info

Features & Benefits

Rubber-mounted rake teeth

Keep hay clean because the hydraulically driven baskets have rubber-mounted rake teeth that engage the crop, not the ground.

Improved tine design

Built for durability with a proven design that prevents the tines from engaging the ground.

Large, caster-type wheels

Glide over uneven terrain with large, caster-type wheels to cushion your ride.

Optional basket speed control

Match the raking action to the crop and field conditions without adjusting speed using the optional basket speed control.

Specifications

Compare Models
  • Dimensions and Weights

    • Raking Width - Minimum 18 ft 5.5 m
    • Raking Width - Maximum 23 ft 7 m
    • Windrow Width - Minimum 36 in 91.4 cm
    • Windrow Width - Maximum 72 in 182.9 cm
    • Transport Width 8.4 ft 2.6 m
    • Transport Length 21.8 ft 6.6 m
    • Weight - Total 3220 lbs 1460.6 kg
    • Weight - Tongue 1400 lbs 635 kg
  • Tractor Requirements

    • Horsepower 35 hp 26.1 kw
    • Hydraulics - Type Two double acting
    • Hydraulic Pressure 1800 psi 124.1 bar
    • Hydraulic - Flow Rate 8 gpm 30.3 L/min
  • Standard Details

    • Rake Style Basket V-rake
    • Basket - Bars/Basket 6
    • Basket - Tines/Basket 120
    • Basket - Length 9.5 ft 2.9 m
    • Transport Wheels - Size 205/75R14
    • Transport Wheels - Qty 2
    • Gauge Wheels - Size 205/75R14
    • Gauge Wheels - Quantity 2
    • Transport Lights Yes
    • Hitch Jack Yes
    • Speed - Maximum 10 mph 16.1 km/h
  • Optional Features

    • Safety Chain Available
    • Basket Control Speed Available

Literature

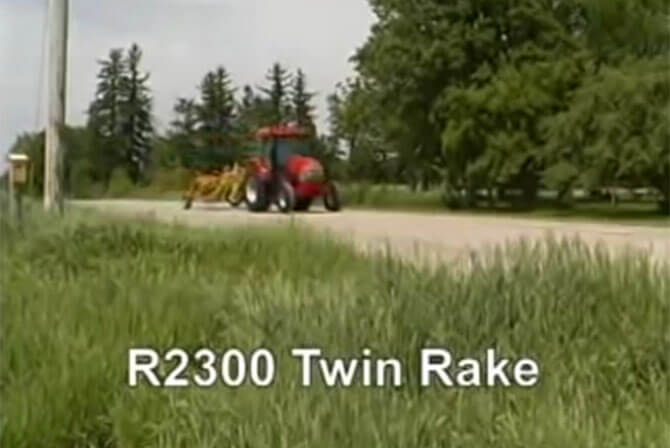

See it in action
