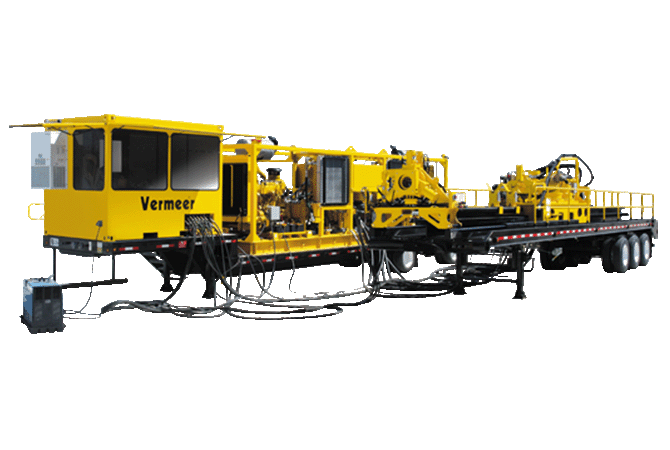

D1000x900 HDD

Features & Benefits

High-torque, low-speed Hagglunds hydraulic motors

Operates efficiently with high-torque, low-speed Hagglunds hydraulic motors powering the rotary and carriage drives so you can run full torque and full rotary rpm simultaneously.

Thrust box bearing-pack assembly

Reduces stress on the motor, because the thrust box bearing-pack assembly is designed to absorb the axial load caused by thrust and pullback.

Floating vise

Helps prevent rod wrap or windup because its floating vise allows the breakout system to clamp the full rod upsets during breakout of the lower and upper joints.

Higher torque

Muscles through difficult ground formations with higher torque than other models.

Specifications

Compare Models
Show Metric
  • Drill Rack

    • Length (Minimum Transport) 50.5 ft 15.4 m
    • Width 8.5 ft 2.6 m
    • Height (Minimum Transport) 11.5 ft 3.5 m
    • Weight 101000 lbs 45812.8 kg
    • Suspension Triple axle with air ride suspension
    • Front Base Anchor Length 20 ft 6.1 m
    • Front Base Anchor Width 6 ft 1.8 m
    • Front Base Anchor Height 24 in 61 cm
    • Front Flat Anchor Length 9.5 ft 2.9 m
    • Front Flat Anchor Width 5 ft 1.5 m
    • Front Flat Anchor Height 8 in 20.3 cm
    • Rear Base Anchor Length 16 ft 4.9 m
    • Rear Base Anchor Width 7.8 ft 2.4 m
    • Rear Base Anchor Height 8 in 20.3 cm
    • Number of Rear Legs 2
    • Drill Rack Angle 8 degrees to 12 degrees
  • Driller Cabin

  • Power Pack

  • Power Pack Option Two

  • Power Pack Option Three

  • Operational

  • Lower Breakout Vise

  • Upper Breakout Vise

  • Safety
