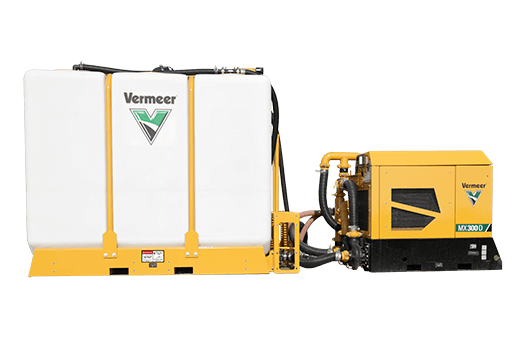

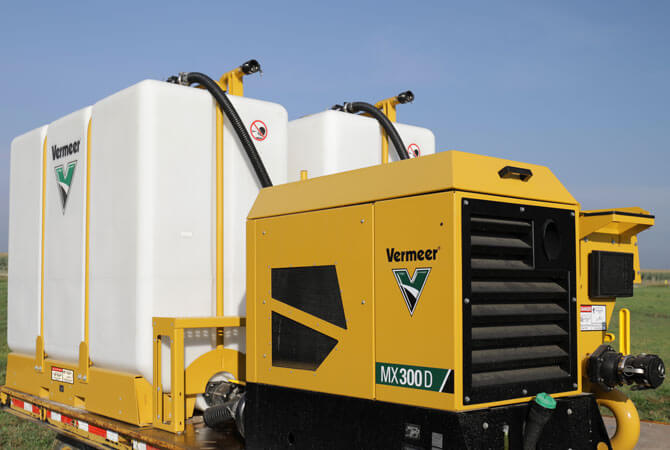

The MX300D mixing system is the ideal support equipment you need onsite for your horizontal directional drilling operations.

Find A Dealer Request More Info
As another option to the Vermeer mixing system lineup, this new diesel mixing system provides the fluid onsite to keep the drilling going smoothly. With one power unit to support two tanks, you have the option to run one tank or both, depending on the fluid needs of the job. The MX300D mixing system pairs well with a variety of drills and is ready to mix.

The MX300D mixing system is the ideal support equipment you need onsite for your horizontal directional drilling operations.

As another option to the Vermeer mixing system lineup, this new diesel mixing system provides the fluid onsite to keep the drilling going smoothly. With one power unit to support two tanks, you have the option to run one tank or both, depending on the fluid needs of the job. The MX300D mixing system pairs well with a variety of drills and is ready to mix. Find A Dealer Request More Info

Features & Benefits

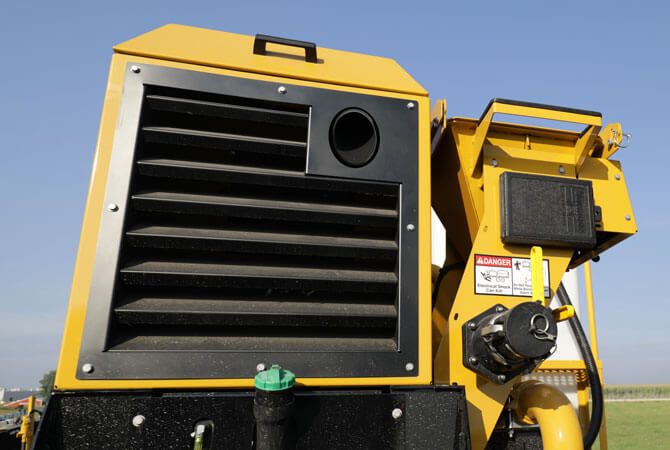

Fuel the job

Spend less time refilling your tank and more time getting the job done with a 16-gal (60.6-L) fuel tank. Also use the same fuel type as what runs in the drill.

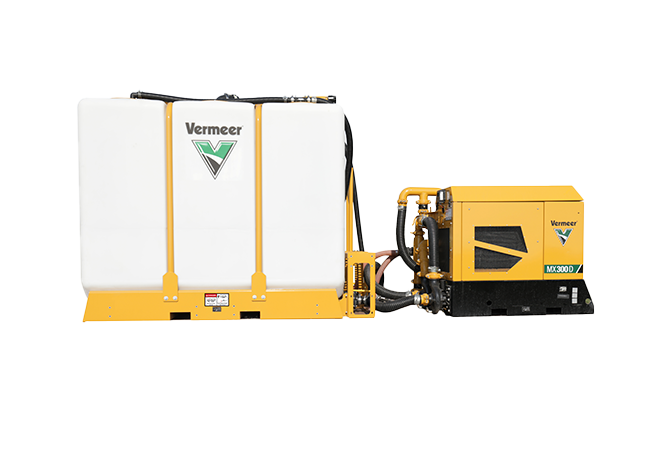

Convenient configuration

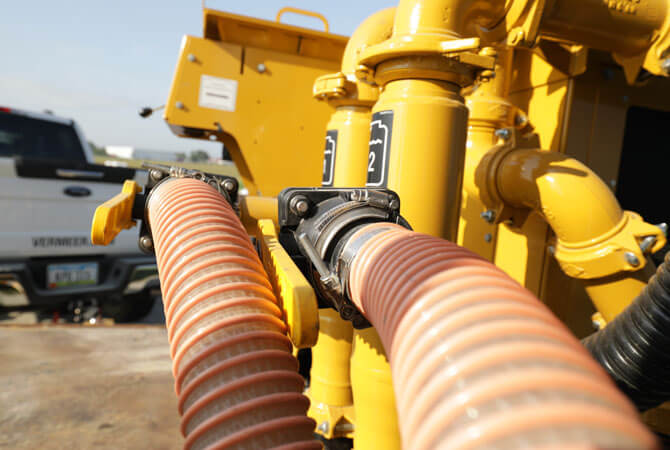

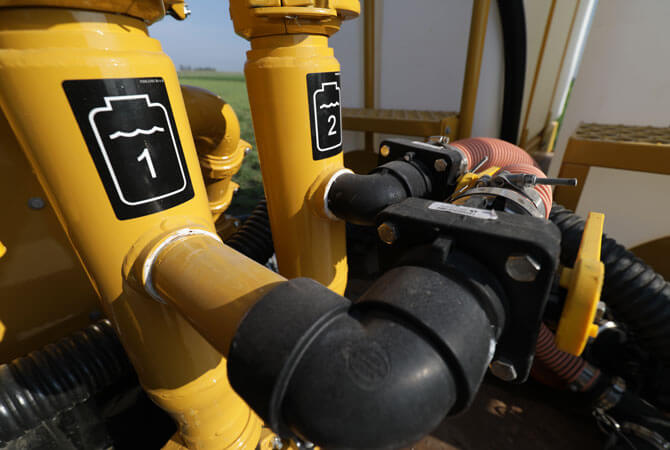

The MX300D comes with two tanks, powered by the same power unit, to provide more fluid onsite, with the option to support either the 750-gal (2,839.1-L) or the 1,000-gal (3,785.4-L) tank. The tanks can run independently, or together, depending on fluid amount needed.

A clean mix

A wide-mouth hopper pairs with the tapered bottom rectangular tank to help prevent drilling fluid additives from settling, assist with drainage and reduce buildup.

Slim fit

The MX300D features a rectangular profile which can help maximize fluid volume and can be mounted for convenient transport of two tanks inside a standard-sized enclosed truck.

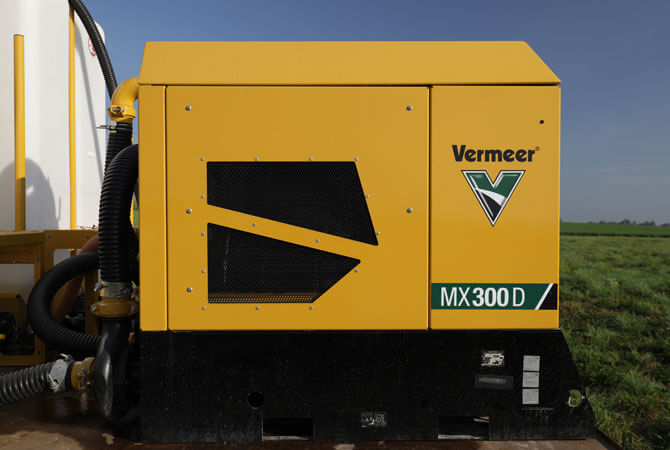

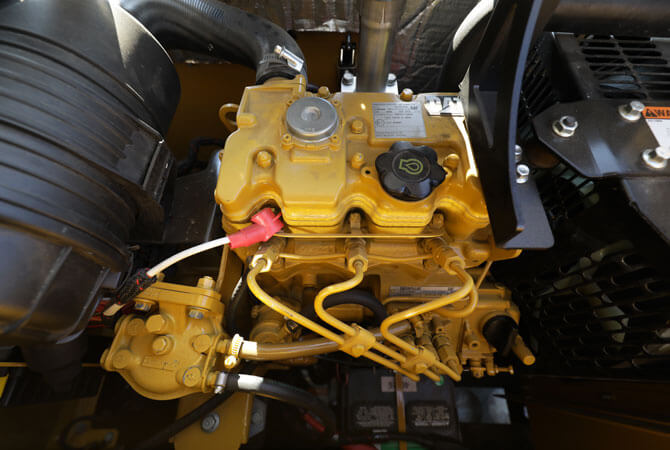

Powerful performance

The MX300D is equipped with a 24.7-hp (18.42-kW) CAT C1.1 engine and 350-gpm (1,324.9-L/min) pump flow to provide powerful performance on the job.

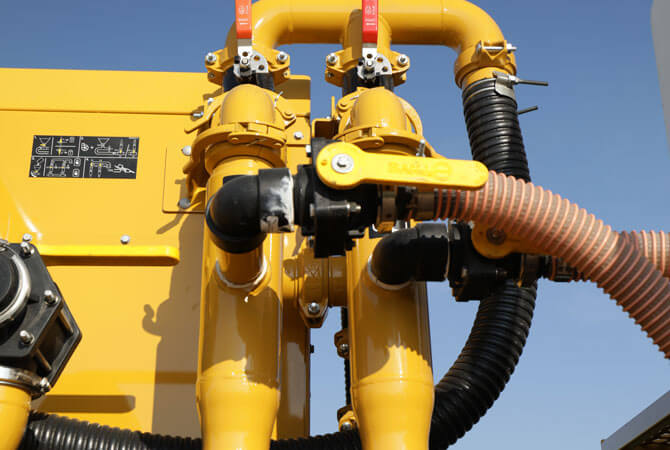

Serviceability

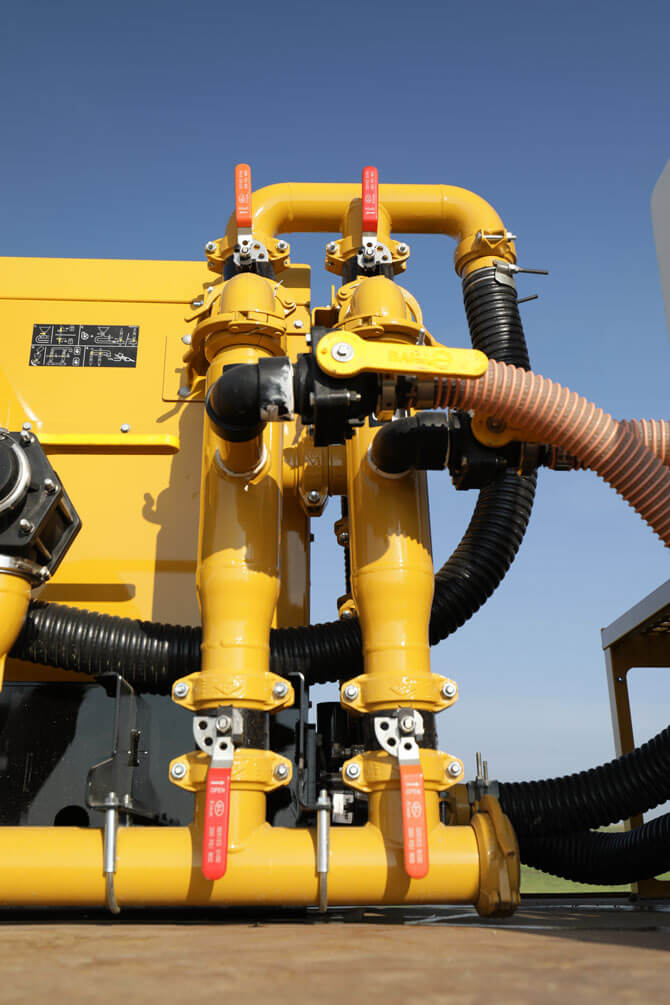

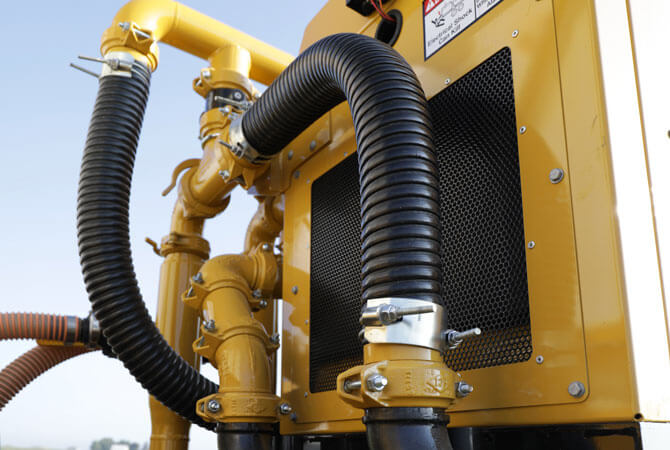

Maintain machine performance with efficient ways to manage necessary components. The occasional replacement of roll jets is made convenient with access through the top of the tank, as well as convenient access to engine and pump service components. Daily tasks, such as filling and draining, are made convenient with a freshwater fill feature and two valves for system draining.

Specifications

Compare Models
  • Engine

    • Gross Horsepower 24.7 hp 18.4 kw
    • Fuel Capacity 16 gal 60.6 L
  • Operational

    • Mixing Action Venturi/recirculation
    • Integrated Mixing Hopper Yes, rectangular steel
    • Straining System (Makeup Water) Yes
    • Straining System (Outlet) Yes

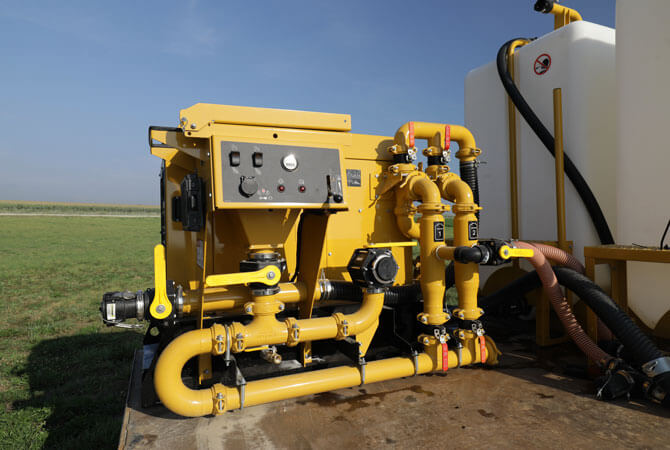

  • Power Pack

    • Length 69 in 175.3 cm
    • Width 56 in 142.2 cm
    • Height 51 in 129.5 cm
    • Weight 1800 lbs 816.5 kg
  • 750 Gallon (2839.1 L) Tank Option

    • Length 105 in 266.7 cm
    • Width 40 in 101.6 cm
    • Height 65 in 165.1 cm
    • Mixing Jets Two sets of opposing eductors
  • 1000 Gallon (3785.4 L) Tank Option

    • Length 105 in 266.7 cm
    • Width 40 in 101.6 cm
    • Height 82 in 208.3 cm
    • Mixing Jets Two sets of opposing eductors

See it in action
