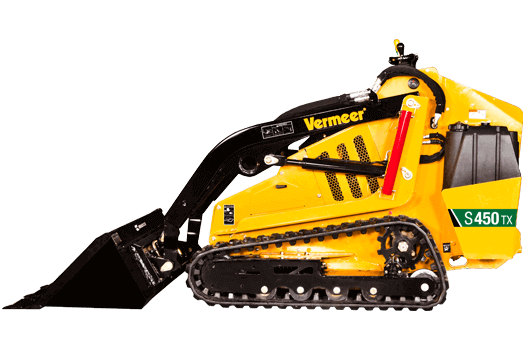

S450TX Mini Skid Steer CE Certified

Features & Benefits

Single, pilot-operated joystick

The single, pilot-operated joystick offers the operator a smooth range of operation without balancing the engagement of two separate controls.

Versatile track size options

The S450TX has both a wide 9-in (22.9-cm) track and narrow 7-in (17.8-cm) track available. The 7-in (17.8-cm) track offers the customer a narrow footprint that can easily access traditional 36-in (91.4-cm) gate entrances, while the 9-in (22.9-cm) track offers reduced ground pressure for increased flotation.

Easy maintenance access

Rear panel provides access to important components such as the radiator, electrical system and hydraulic valves for routine maintenance and service.

High track-mounted sprocket

The undercarriage features a high track-mounted sprocket, reducing premature wear/tear on the sprocket from rocky soil conditions, while the ADI cast sprocket is heat-treated for longer life. The higher mounting and heat-treating allow for a longer-lived sprocket and lower cost of operation.

Serviceability is key

Need to access the engine? Merely lift open the side shielding for easy maintenance.

Spring-cushioned platform

A dedicated spring-cushioned platform keeps the operator out of the mud. The integrated operator presence system suspends ground drive and powered boom/bucket motion when the operator steps off the platform.

Specifications

Compare Models
Show Metric
  • General Dimensions and Weights

    • Design Stand-on / track-drive
    • Length with Standard Bucket 95.4 in 242.3 cm
    • Length without Standard Bucket 75.4 in 191.5 cm
    • Width with Standard Bucket 42 in 106.7 cm
    • Width Without Standard Bucket 35.8 in 90.8 cm
    • Height 53.4 in 135.6 cm
    • Height (to Hinge Pin) 72 in 182.9 cm
    • Ground Clearance 6.5 in 16.5 cm
    • Weight (Standard Bucket, Diesel Engine) 2430 lbs 1102.2 kg
    • Weight (No Bucket, Diesel Engine) 2300 lbs 1043.3 kg
  • Engine - Option one

  • Track Performance

  • Operational

  • Hydraulic System

Attachments

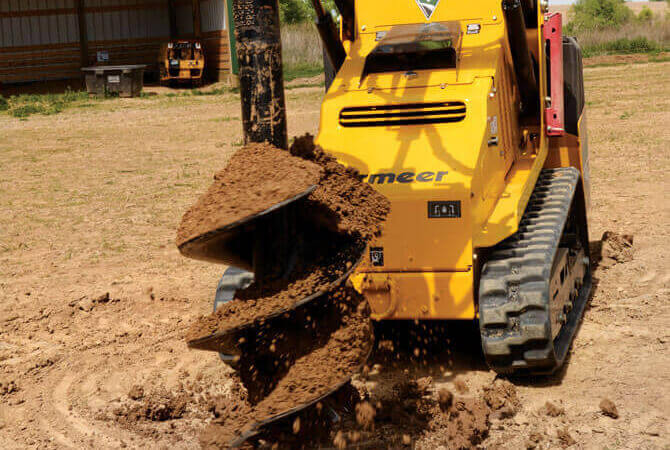

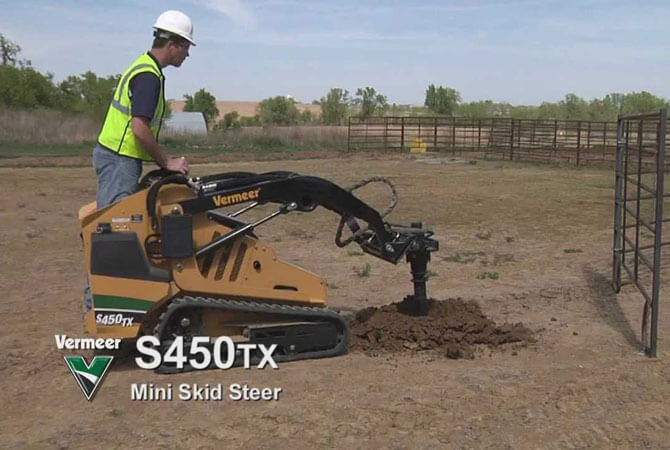

Vermeer auger driver

Vermeer auger driver
