Our core saws are engineered to minimize public inconvenience, minimize damage to roads, sidewalks and underground infrastructure, and minimize excavation and repair costs. Built on portable, compact trailers, our core saws can be towed with a half-ton pickup truck for convenient jobsite access.

Find A Dealer Request More Info

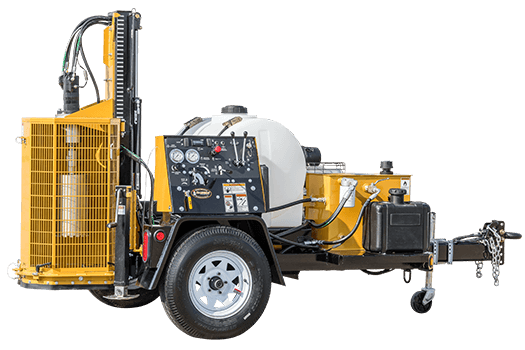

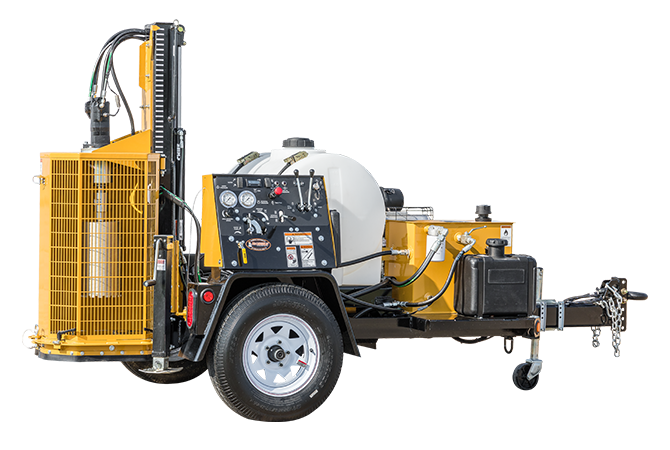

The Vermeer CS418B core saw is designed to cut 4-in to 18-in (10-cm to 46-cm) diameter holes in hard surfaces, like asphalt and concrete, to help utility contractors locate and excavate underground utilities. The core saw is built on a portable, compact trailer measuring 137-in (348-cm) long and 69-in (175-cm) wide for ease of jobsite access and can be towed with a half-ton pickup truck. Core sawing creates minimal disruption to traffic, reduces manual labor and preserves the road integrity when compared to saw cutting. Powered by a 25-hp (19-kW) Kohler EFI engine, the core saw has a two-speed operation that can generate up to 380 rpm for varying jobsite conditions. The CS418B features an onboard water tank to cool the saw bit and can be moved into position with the telescoping and pivoting arm.

Our core saws are engineered to minimize public inconvenience, minimize damage to roads, sidewalks and underground infrastructure, and minimize excavation and repair costs. Built on portable, compact trailers, our core saws can be towed with a half-ton pickup truck for convenient jobsite access.

The Vermeer CS418B core saw is designed to cut 4-in to 18-in (10-cm to 46-cm) diameter holes in hard surfaces, like asphalt and concrete, to help utility contractors locate and excavate underground utilities. The core saw is built on a portable, compact trailer measuring 137-in (348-cm) long and 69-in (175-cm) wide for ease of jobsite access and can be towed with a half-ton pickup truck. Core sawing creates minimal disruption to traffic, reduces manual labor and preserves the road integrity when compared to saw cutting. Powered by a 25-hp (19-kW) Kohler EFI engine, the core saw has a two-speed operation that can generate up to 380 rpm for varying jobsite conditions. The CS418B features an onboard water tank to cool the saw bit and can be moved into position with the telescoping and pivoting arm. Find A Dealer Request More Info

Features & Benefits

Pivot base

Telescoping and extendable arm allows for infinite positioning of the bit.

Mast with depth gauge

Bit travel range of 24 in (61 cm) of vertical movement. Keep track of jobsite progress with depth gauge.

Proven power

Kohler 25-hp (19-kW) EFI engine for optimum fuel efficiency, reliability, starting dependibility and featuring a heavy-duty air cleaner.

Control panel

Allows for infinite hydraulic control of bit speed, rotation and travel. Two hydraulic gauges show the operator the downforce pressure and bit rotations per minute. The dual-speed motor allows for a wide speed range supporting various bit diameters and surface conditions.

Leveling jacks

Dual jacks allow for vertical placement of the bit, featuring a level located on the front of the machine for precise positioning.

Water system

The water system offers 100 gal (378.5 L) of water available for cooling the bit with variable flow up to 2.8 gpm (10.6 L/min).

Specifications

Compare Models
  • General Dimensions and Weights

    • Length 137 in 348 cm
    • Width 69 in 175.3 cm
    • Height 81 in 205.7 cm
    • Weight (Dry) 1700 lbs 771.1 kg
    • Weight (wet) 2200 lbs 997.9 kg
    • Axle capacity 3500 lbs 1587.6 kg
  • Power source

    • Engine Kohler ECH740 Command Pro EFI, 3600 rpm
    • Gross Horsepower 25 hp 18.6 kw
  • Water System

    • Tank capacity 100 gal 378.5 L
    • Pump Type 2.8 gpm (10.6 L/min) sure flow
    • On/off switch 12 V
    • Variable flow Yes
    • Diaphram pump electrical system Yes
  • Operational

    • Rotation Motor 2-speed
    • Rotation Speed 0-180 rpm, 0-360 rpm
    • Feed pressure 0-2500 psi
    • Mast vertical travel 24 in (61 cm) trailer-mounted
    • Mast Offset - Trailer-mounted 48 in (121 cm) left/right
    • Core bit diameters 4-18 in (10.2-45.7 cm)
  • Controls

    • Mast Raise Hydraulic
    • Mast Offset Manual
  • Hydraulic System

    • Rotation Pump 13.1 gpm/3000 psi (207 bar)
    • Auxiliary Pump 5 gpm/2500 psi (172 bar)
