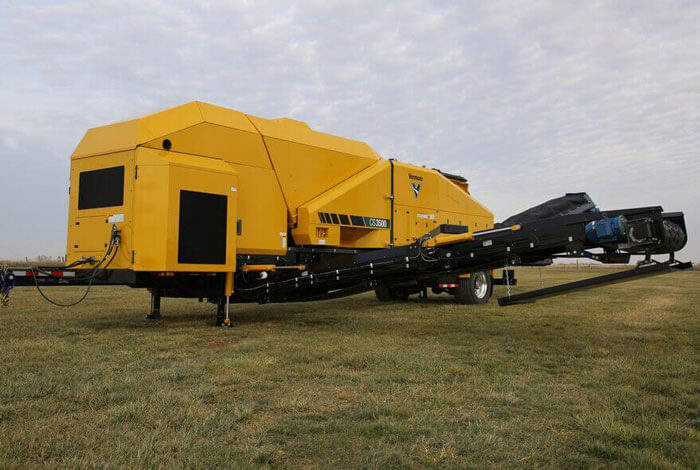

The CS3500 contaminant separator rescues valuable material from your waste pile through a unique 5-stage process. This hybrid-powered machine is built for maximized performance, helping minimize disposal costs and optimize the quality and quantity of your end-product.

Separating from the competition

The CS3500 contaminant separator rescues valuable material from your waste pile through a unique 5-stage process. This hybrid-powered machine is built for maximized performance, helping minimize disposal costs and optimize the quality and quantity of your end-product. Find A Dealer Request More Info

Features & Benefits

Five-stage separation process

The CS3500 removes contaminants from organic material through a unique five-stage process. Combining several methods of removal, such as the grizzly screen, infeed vacuum, shaker table, air manifold, discharge vacuum and magentic head pulley, this process helps you save and re-use more material for composting.

Dislodges and removes contaminates

The shaker table is adjustable and vibrates material to dislodge and position contaminants for removal. The air manifold has adjustable air flow that removes dislodged contaminants from the shaker table and blows it to the discharge belt.

Hybrid power, minimal noise

The CS3500 is equipped with a 74-hp Deutz engine that powers the 49-kW generator. It also has the ability to run directly from an electric power source. With a 103.5-dB(A) sound level, you'll experience minimal noise on the jobsite.

Effectively contains trash

The CS3500 collects contaminants and puts them on one trash conveyor that's 36-in wide and can reach up to 16-ft high. The trash conveyor allows the operator to discharge into dumpster containers, trucks or simply make a large pile. The conveyor is covered, minimizing the spread of trash on your jobsite and cross-contamination.

Complete control

Optimize productivity and flexibility when operating with these two features. An industry-leading, full-function, wireless remote control lets you, from the cab, adjust machine settings as conditions change, including control of the infeed settings, vacuum settings, shaker table, conveyor height and more. The 7-in onboard color touch screen display shows machine data and allows you to intuitively set up the machine for maximum efficiency.

Maintenance-friendly design

The contaminant separator's maintenance-friendly design gives you direct access and control. The air manifold opens up to access the shaker table. You can access the engine through compartment doors and there are daily access points on ground level. This helps improve serviceability and minimize maintenance time.

Specifications

Compare Models
Show Metric
  • General Dimensions and Weights

    • Weight 28000 lbs 12700.6 kg
    • Hitch Weight 10000 lbs 4535.9 kg
    • Maximum Length - Transport 37.5 ft 11.4 m
    • Maximum Width (Transport) 8.2 ft 2.5 m
    • Maximum Height (Transport) 13 ft 4 m
    • Maximum Length (Operation) 63.5 ft 19.4 m
    • Maximum Width (Operation) 25 ft 7.6 m
    • Maximum Height (Operations) 17.7 ft 5.4 m
    • Capacity 50 cu-yd/hr (38.2 cu-m/hr)
  • Engine - Option one

    • Make and Model Deutz TCD 2.9L Tier 4F/Stage V
    • Number of Cylinders 4
    • Engine Rating 74 hp (55 kW)
    • Fuel Tank Capacity 40 gal 151.4 L
    • Maximum Engine Operating Angle (Operating angles do not indicate safe machine operating angles) 30 deg
    • Recommended Oil Mobil 15W-40
    • Oil Volume with Filter 8.4 qt 7.9 L
    • System Voltage 24-V - 55-A alternator
    • Air Cleaner Dual element
  • Generator

    • Rating 66 hp (49 kW)
    • Voltage 480 V
    • Frequency 3-phase 60 Hz
  • Hydraulic System

    • Operation 5-hp (3.7- kW) electric motor
    • Tank capacity 10 gal 37.9 L
  • Chassis

    • Frame Description Four independent hydraulic jacklegs
    • Axle/Suspension Leaf spring
    • Brakes Air brakes
    • Tires - Option One 445/50R22.5
  • Hopper and infeed conveyor

    • Drive Type Electric, 3 hp (2 kW)
    • Hopper Height 9 ft (2.7 m)
    • Hopper Opening 60 in x 36 in (91 cm x 152 cm)
    • Infeed conveyor length 12 ft 3.7 m
    • Infeed conveyor belt width 42 in 106.7 cm
  • Metal removal

    • Magnetic head pully (optional) Axial magnetic pulley
  • Trash collecting conveyor

    • Drive Type Electric, 5 hp (3.7 kW)
    • Conveyor length 27 ft 8.2 m
    • Conveyor operating height 4.5 ft to 15.6 ft (1.4 m to 4.8 m)
    • Belt Speed 250 ft/min 76.2 m/min
    • Conveyor Belt Width 36 in 91.4 cm
    • Conveyor Belt Type 220 lb (99.8 kg), 2-ply, 2/16 in x 1/16 in (3.2 mm x 1.6 mm)
  • Organics conveyor

    • Drive Type Electric, 5 hp (3.7 kW)
    • Conveyor length 17 ft 5.2 m
    • Conveyor operating height 4 ft to 9.6 ft (1.2 m to 2.9 m)
    • Belt Speed 250 ft/min 76.2 m/min
    • Conveyor Belt Width 30 in 76.2 cm
    • Conveyor Belt Type 220 lb (99.8 kg), 2-ply, 2/16 in x 1/16 in (3.2 mm x 1.6 mm)
