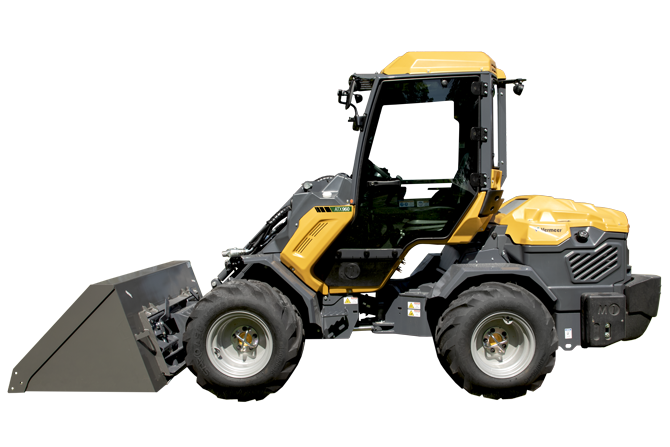

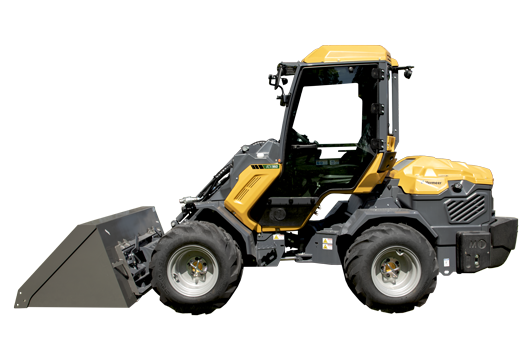

The Vermeer ATX960 compact articulated loader has a lift capacity of 3,285 lb (1,490 kg) when straight and a machine width of 59 in (149.9 cm), allowing the versatility of a compact, yet powerful machine for the jobsite. Machine options such as fully-enclosed cab and LED working lights give operators the convenience of working in a variety of conditions.

A compact machine with high lifting capabilities, ready to tackle the job

The Vermeer ATX960 compact articulated loader has a lift capacity of 3,285 lb (1,490 kg) when straight and a machine width of 59 in (149.9 cm), allowing the versatility of a compact, yet powerful machine for the jobsite. Machine options such as fully-enclosed cab and LED working lights give operators the convenience of working in a variety of conditions.

Find A Dealer Request More Info

Features & Benefits

Telescopic boom

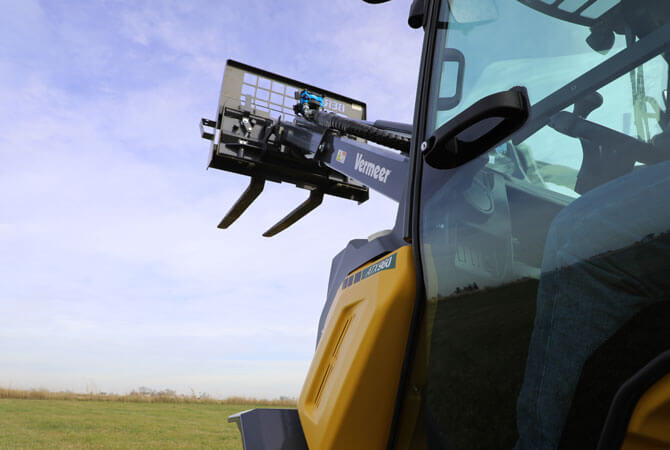

The telescopic boom on the ATX960 extends 49.5 in (125.7 cm) for loading materials to a dump height of 126 in (320.04 cm) in hinge pin height. The telescopic boom can also aid in dumping material over the backside of a retaining wall or grabbing material over an obstruction.

Lift-capacity-to-weight ratio

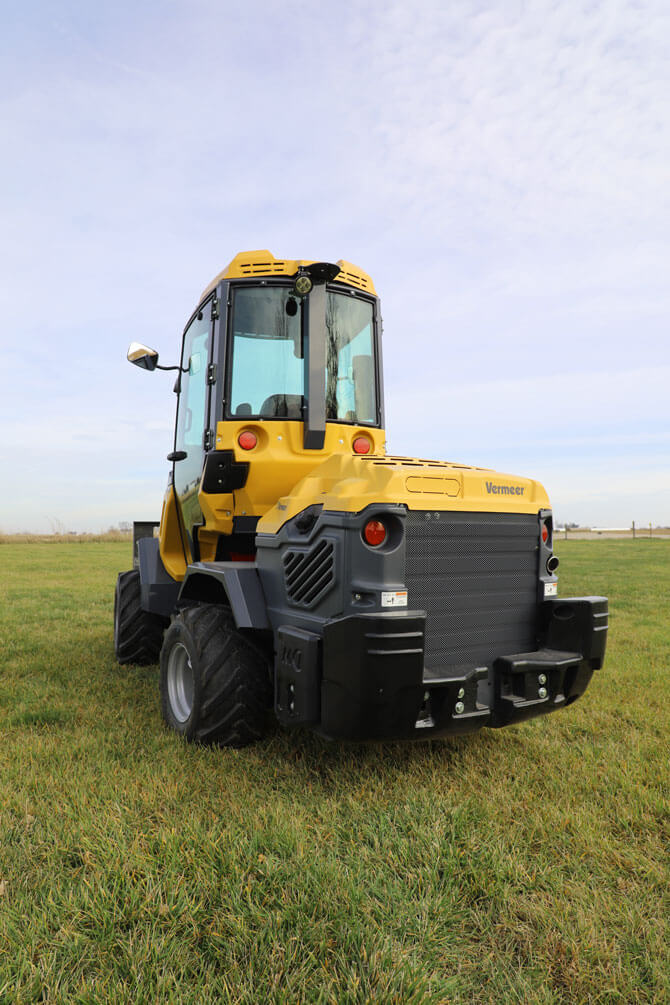

The ATX960 has a rated operating capacity of 3,285 lb (1,490 kg) with 970-lb (440-kg) back weights while having a standard weight of 4,720 lb (2,140 kg). This lift-capacity-to-weight ratio allows contractors to utilize a lighter machine while still being able to carry heavy materials on the jobsite.

Compact size

With narrow tires, the ATX960 is 52-in (132-cm) wide, while the wider tires make the machine 59-in (150-cm) wide. Both configurations allow the ATX960 to fit through many standard gates for backyard access. The overall length of the ATX960 is 126 in (320 cm).

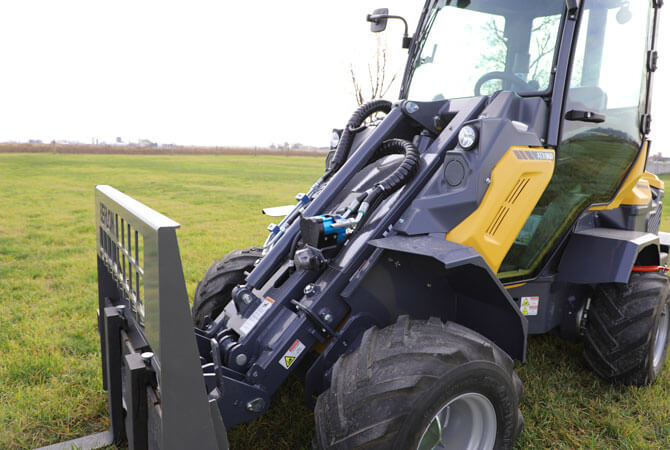

Full-sized attachment plate

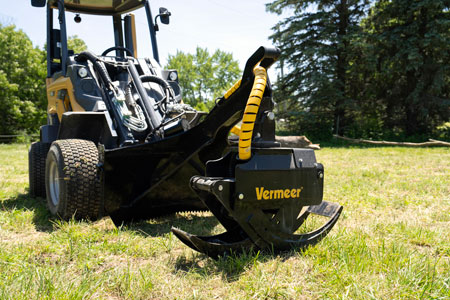

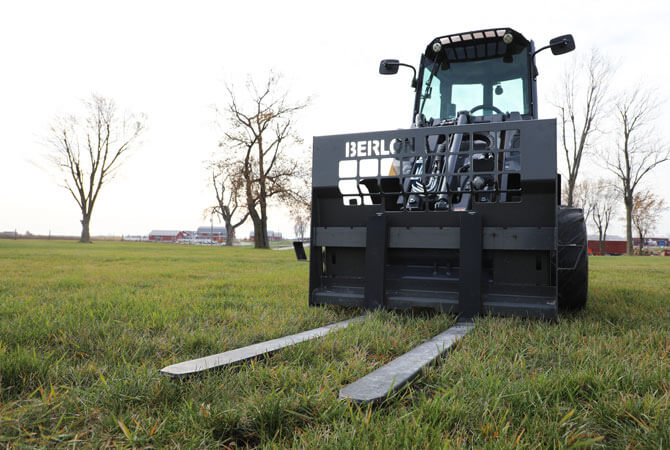

The full-sized attachment plate on the ATX960 is compatible with full-sized articulated loader attachments. The ATX960 can be fitted with various authorized attachments to meet the jobsite need, may that be for snow removal, landscaping, logging and tree care work, or various other applications.

Operator comfort

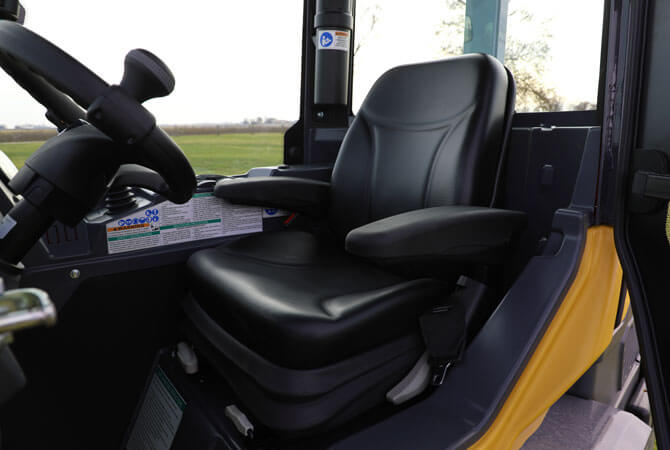

The adjustable seat and operator station layout allow operators to work comfortably for a full day. Options like a heated seat, enclosed and heated cab, and optional air conditioning add more comfort for year-round use to the ATX960.

Customized options

The ATX960 has a wide variety of options to fit the needs of customers and the demands of various jobsites. Work lights and beacon lights can aid with darker working conditions. There are several tire and tread options as well to meet the turf interaction desires of contractors. Another option on the ATX960 is an automatic hydraulic locking attachment plate, which attaches and releases non-auxiliary hydraulic attachments without the need for the operator to leave the cab.

Specifications

Compare Models
Show Metric
  • General

    • Length 126 in 320 cm
    • Width 59 in 149.9 cm
    • Height 84.6 in 214.9 cm
    • Weight 4720 lbs 2141 kg
    • Ground Clearance 13.4 in 34 cm
    • Angle of departure with rear weights 21 deg
  • Engine

    • Make and Model Kohler KDI 1903
    • Fuel Type Diesel
    • Fuel Tank Capacity 13.2 gal 50 L
    • Gross horsepower 57 hp (42.5 kW)
    • Cooling System Liquid cooled
    • Transmission Hydrostatic
  • Performance

    • Rated operating capacity (straight) 3285 lbs 1490.1 kg
    • Rated operating capacity (articulated) 2158 lbs 978.9 kg
    • Tipping capacity (straight) 4106 lbs 1862.5 kg
    • Tipping capacity (articulated) 2698 lbs 1223.8 kg
    • Turning radius: inside/outside 40.5 in (102.9 cm)/100.4 in (255 cm)
    • Standard tires 31 x 15.50 - 15
    • Pivot point height (extended boom) 126 in 320 cm
    • Outreach with horizontal boom (extended boom) 49.5 in 125.7 cm
    • Travel speed 8 mph - 16.7 mph (12.8 km/hr - 262.9 km/hr)
  • Hydraulic System

    • Auxiliary hydraulics oil flow 25 gpm 94.6 L/min
    • Hydraulic oil tank capacity 15.6 gal 59.1 L
