A machine equipped with high torque alongside stability and reliability for tough jobs.

Find A Dealer Request More Info
Vermeer ATX models are currently available in North America and the Caribbean

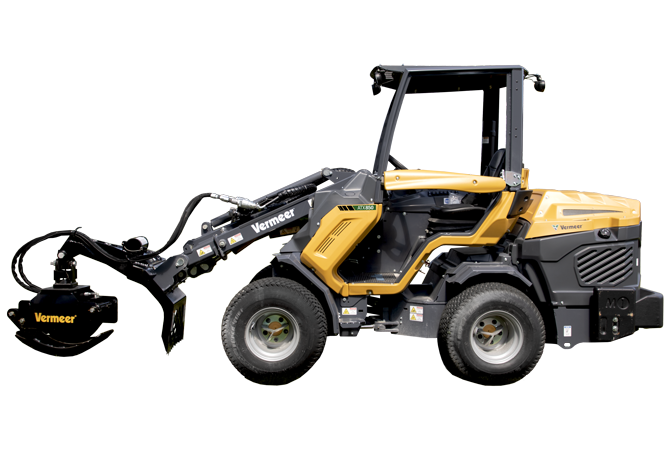

The ATX850 compact articulated loader is built to suit a variety of tough jobs like property maintenance, landscaping or tree work. It is designed with direct drive motors to help grant traction. The main frame design coupled with low center of weight stability and integrated back weights gives the operator control and comfort while doing tough work.

A machine equipped with high torque alongside stability and reliability for tough jobs.

Vermeer ATX models are currently available in North America and the Caribbean

The ATX850 compact articulated loader is built to suit a variety of tough jobs like property maintenance, landscaping or tree work. It is designed with direct drive motors to help grant traction. The main frame design coupled with low center of weight stability and integrated back weights gives the operator control and comfort while doing tough work. Find A Dealer Request More Info

Features & Benefits

Telescopic boom

The telescopic boom on the ATX850 extends 29.1 in (73.9 cm) for loading materials to a dump height of 117.3 in (297.9 cm) in hinge pin height. The telescopic boom can also aid in dumping material over the back side of a retaining wall or grabbing material over an obstruction.

Compact size

With narrow tires, the ATX850 is 42.1-in (106.9-cm) wide, while the wider tires make the machine 50.4-in (128-cm) wide. Both configurations allow the ATX850 to fit through a standard four-foot gate for backyard access on landscape jobs. The overall length of the ATX850 is 120.3 in (305.6 cm).

Lift-to-weight ratio

The ATX850 has a rated operating capacity (straight) of 2,542 lb (1,153 kg)* while having a standard weight of 4,237 lb (1,921.8 kg) with rear weights and without attachments. This lift-capacity-to-weight ratio allows contractors to utilize a lighter machine while still being able to carry heavy materials on the jobsite.

*Operating capacities show the rear counterweights installed and rated for a bucket application at 50% of the tipping load per 1SO 14397.

Multifunction joystick

The multifunction joystick utilizes electric-over-hydraulic toggles for ease of access to machine functions like the telescopic boom, auxiliary hydraulic controls and the Dynamic Blocking System (DBS). The operator does not have to remove their hand from the loader arm controls in order to function any of these features.

Four-wheel drive hydrostatic direct drive motors

As each wheel has a hydrostatic direct drive motor, hydraulic oil can flow freely to each wheel as needed during transport to help reduce ground disturbance on turf when making turns. The four-wheel drive hydrostatic direct drive motors also allow for the use of the DBS and torque divider to increase tractive effort in difficult conditions.

Multi-tool attachment plate

The ATX850 can be fitted with various authorized attachments to meet the jobsite need, may that be for snow removal, landscaping and tree care work or various other applications.

Specifications

Compare Models
Show Metric
  • General

    • Length 120.3 in 305.6 cm
    • Width 50.4 in 128 cm
    • Height 80.3 in 204 cm
    • Weight 4237 lbs 1921.9 kg
    • Ground pressure 204 lb/sq ft (92.5 kg/m²)
    • Ground Clearance 9.5 in 24.1 cm
    • Angle of departure with rear weights 19 deg
    • Attachment plate Mini skid steer attachment plate
  • Engine

    • Make and Model Kohler KDI1903
    • Fuel Type Diesel
    • Fuel Tank Capacity 9 gal 34.1 L
    • Gross horsepower 57 hp (42.5 kW)
    • Cooling System Liquid
    • Transmission Hydrostatic
  • Performance

    • Rated operating capacity (straight) 2542 lbs 1153 kg
    • Rated operating capacity (articulated) 1907 lbs 865 kg
    • Tipping capacity (straight) 3177 lbs 1441.1 kg
    • Tipping capacity (articulated) 2383 lbs 1080.9 kg
    • Turning radius: inside/outside 32.5 in/82.3 in (82.5 cm/209 cm)
    • Standard tires 26x12.00-12 ET-50
    • Pivot point height (extended boom) 117.3 in 297.9 cm
    • Outreach with horizontal boom (extended boom) 46.6 in 118.4 cm
    • Travel speed 8.7 mph - 17.4 mph (14 km/h - 28 km/h)
  • Hydraulic System

    • Auxiliary hydraulics oil flow 20 gpm 75.7 L/min
    • Hydraulic oil tank capacity 11.1 gal 42 L

Attachments

High dump bucket

High dump bucket

See Specs
Universal trencher

Universal trencher

See Specs

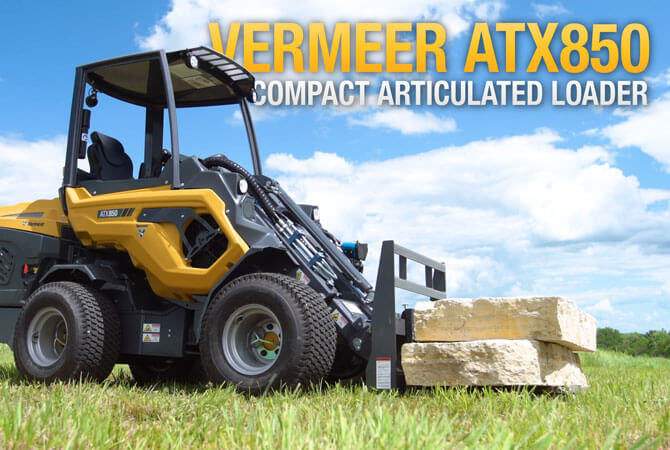

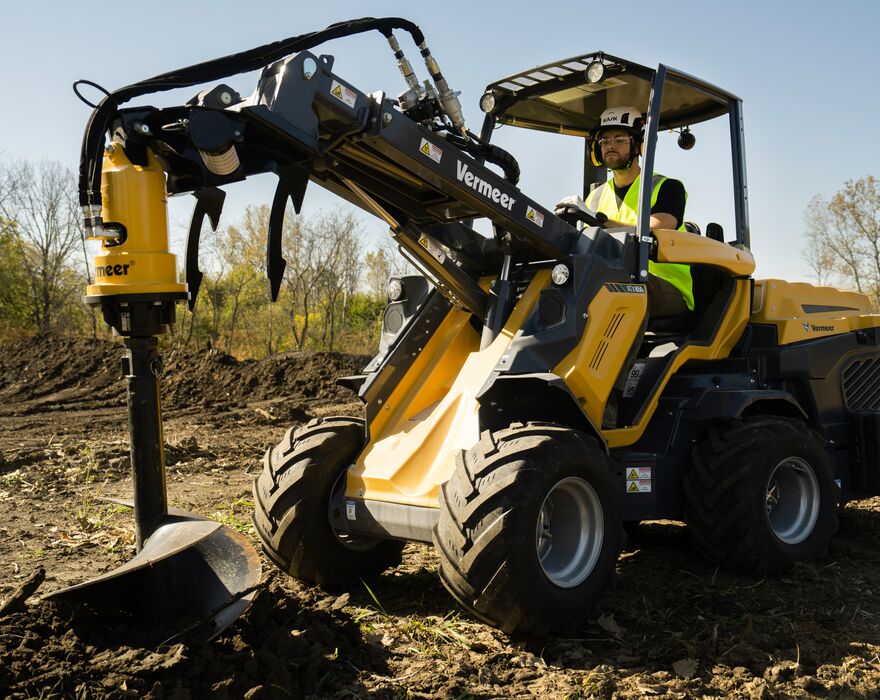

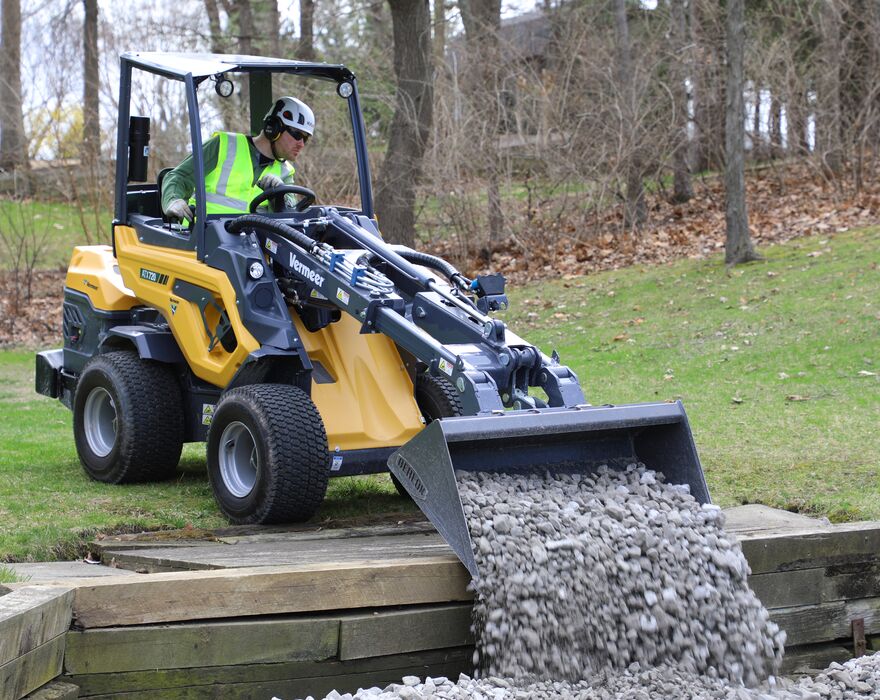

See it in action
