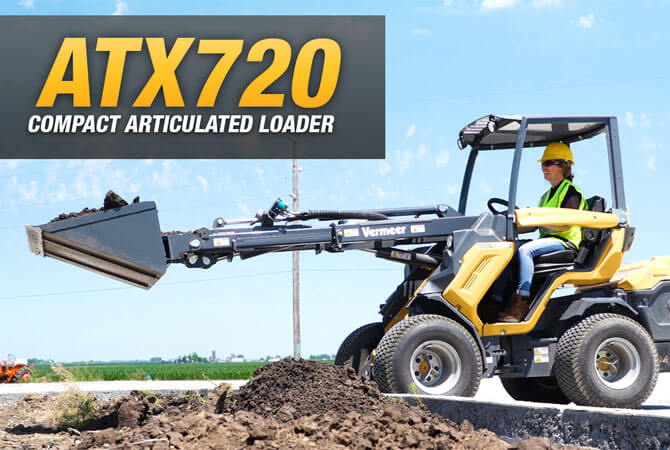

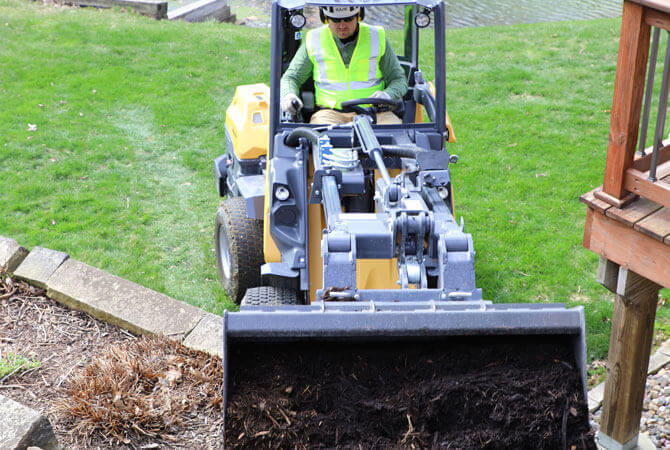

The Vermeer ATX720 compact articulated loader is designed with a combination of power, speed and agility. With a telescopic boom, heavy lifting capabilities and integrated backweights, this machine was built for a variety of jobs.

A machine ready to tackle the job with its telescopic boom and heavy lifting capabilities.

The Vermeer ATX720 compact articulated loader is designed with a combination of power, speed and agility. With a telescopic boom, heavy lifting capabilities and integrated backweights, this machine was built for a variety of jobs.   Find A Dealer Request More Info

Features & Benefits

Telescopic boom

The telescopic boom on the ATX720 extends 29.1 in (73.9 cm) for loading materials to a dump height of 114 in (289.6 cm) in hinge pin height. The telescopic boom can also aid in dumping material over the back of a retaining wall or grabbing material over an obstruction.

Multifunction joystick

The multifunction joystick utilizes electric-over-hydraulic toggles for ease of access to machine functions like the telescopic boom, auxiliary hydraulic controls, and the DBS. The operator does not have to remove their hand from the loader arm controls to function any of these features.

Lift-capacity-to-weight ratio

The ATX720 has a rated operating capacity of 2,155 lb (978 kg) while having a standard weight of 3,549 lb (1,610 kg). This lift-capacity-to-weight ratio allows contractors to use a lighter machine while still being able to carry heavy materials on the jobsite.

Compact size

With narrow tires, the ATX720 is 44.5-in (113-cm) wide, while the wider tires make the machine 50.4-in (128-cm) wide. The standard tire configuration allows the ATX720 to fit through a standard 4-ft (1.21-m) gate for backyard access on landscape jobs.

Operator comfort

The adjustable seat and operator station layout allows operators to work comfortably for a full day. Options like a heated seat, enclosed and heated cab, and work lights add more comfort for year-round use of the ATX720.

Four-wheel drive hydrostatic direct drive motors

As each wheel has a hydrostatic direct drive motor, hydraulic oil can flow freely to each wheel as needed during transport which helps reduce ground disturbance on turf when making turns. The four-wheel drive hydrostatic direct drive motors also allow for the use of the DBS and torque divider to increase tractive effort in difficult conditions.

Specifications

Compare Models
  • General

    • Length 109.8 in 278.9 cm
    • Width 44.5 in 113 cm
    • Height 79.5 in 201.9 cm
    • Weight with rear weights and no attachments 3902 lbs 1769.9 kg
    • Ground Clearance 8.3 in 21.1 cm
    • Angle of departure with rear weights 19 deg
  • Engine

    • Make and Model Kubota D1305
    • Fuel Type Diesel
    • Fuel Tank Capacity 9 gal 34.1 L
    • Gross horsepower 25 hp (18.6 kW)
    • Cooling System Liquid
    • Transmission Hydrostatic
  • Performance

    • Rated operating capacity (straight) 2155 lbs 977.5 kg
    • Rated operating capacity (articulated) 1658 lbs 752.1 kg
    • Tipping capacity (straight) 2694 lbs 1222 kg
    • Tipping capacity (articulated) 2072 lbs 939.8 kg
    • Turning radius: inside/outside 32.5 in - 82.3 in (82.6 cm - 209 cm)
    • Standard tires 23x10.50-12
    • Pivot point height (extended boom) 114 in 289.6 cm
    • Outreach with horizontal boom (extended boom) 46.6 in 118.4 cm
    • Travel speed 5.6 mph (9 km/hr)
  • Hydraulic System

    • Auxiliary hydraulics oil flow 9.8 gpm 37.1 L/min
    • Hydraulic oil tank capacity 11.1 gal 42 L
