It takes a rugged baler with heavy-duty components to withstand the tough conditions and tight time frames of baling cornstalks.

Find A Dealer Request More Info

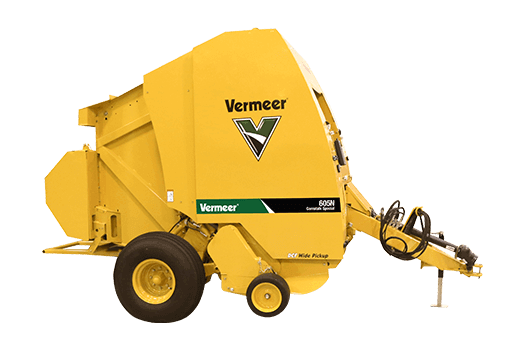

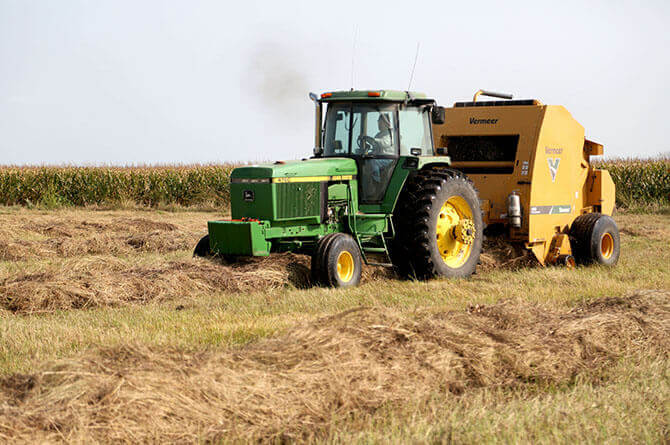

When it comes to durability and efficiency, the new Vermeer 605N Cornstalk Special baler is equipped to bale through even the toughest crop quickly and efficiently. With more heavy-duty components than its predecessor, it’s clear that the 605N Cornstalk Special offers unmatched productivity when baling cornstalks.

It takes a rugged baler with heavy-duty components to withstand the tough conditions and tight time frames of baling cornstalks.

When it comes to durability and efficiency, the new Vermeer 605N Cornstalk Special baler is equipped to bale through even the toughest crop quickly and efficiently. With more heavy-duty components than its predecessor, it’s clear that the 605N Cornstalk Special offers unmatched productivity when baling cornstalks.

Find A Dealer Request More Info

Features & Benefits

Heavy-duty components

Heavy-duty components – from the O-ring change to the pickups and axles – make the baler durable enough to handle high-volume, contamination-prone cornstalks.

Pickup clutch

The drive system features a pickup clutch that is mounted on the lower drive roller that automatically stops the pickup when desired bale size is reached. Lessening inadvertent overfill of the bale chamber, this feature provides longer pickup life due to less wear and tear on components.

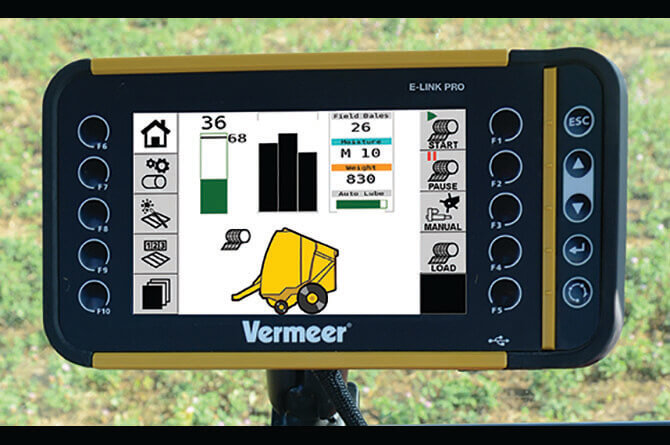

E-Link Pro display

The E-Link Pro display offers enhanced usability, such as easily accessible bale weight and moisture readings on the home screen with optional scale and/or moisture sensors. It also comes with the ability to keep track of information for up to 20 customers, with up to 10 fields per customer, electronically. Additionally, the E-Link Pro display provides the operator with feedback on the Auto Lube greasing system and the pickup clutch control.

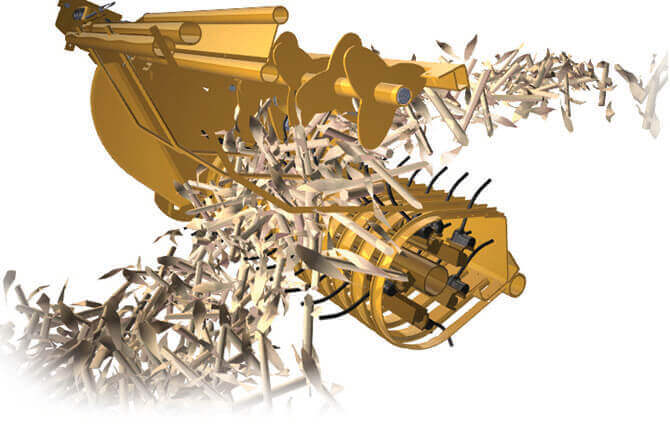

Patented powered windguard design

Features evenly spaced, fin-shaped plates clamped to the hex shaft to help feed high-volume cornstalk material into the bale chamber. And it’s reversible – so you can quickly clear the pickup and continue to bale, without leaving the tractor cab.

Inline ramp

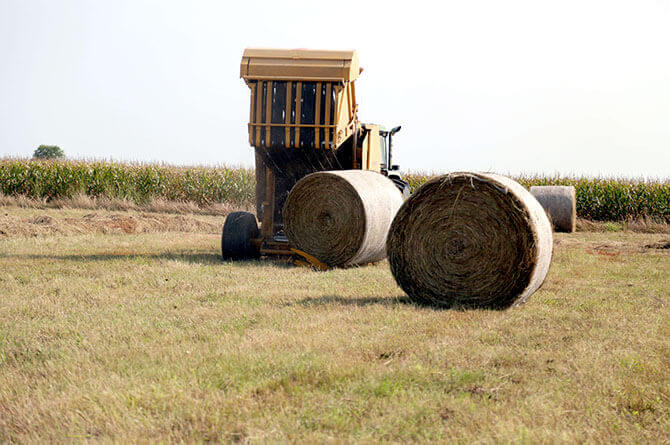

The Inline® ramp makes loading bales in the field up to 35% faster by turning the bales during discharge to position them between the rows. Reduce damage to the bales and wear and tear on bale moving equipment, with less movement required for bale retrieval and prevent the need to drive across rows, ridges and stalks.

Standard Auto Lube greasing system

Controlled through the E-Link Pro display, the standard Auto Lube greasing system allows timely lubrication to critical bearings at user-defined intervals. This automatic system performs best with high-pressure polyurea grease.

Specifications

Compare Models
  • Bale Monitor

    • Monitor E-Link Pro
    • Bale Shape Feedback (Left (L) / Center (C) / Right (R) indicators) Left, Center, Right
    • Number of wraps per bale for Net Wrap Adjustable from 1.5 to 8
    • Manual Override Screen buttons
    • Pause function Screen button
    • "Near Full" and "Full Bale" alarms Standard
    • Tailgate locked alarm/indicator Standard
    • Ramp "home" indicator With inline ramp
    • Alarm on/off/volume control Standard
    • Real-time bale size data Standard
    • Real-time bale weight data Standard
    • Real-time moisture data Optional
    • Bales per hour Standard
    • Tons per hour Standard
    • Monitor Mount RAM mount double ball
    • Self-diagnostic monitor and sensors Standard
    • Error history Yes
    • Touchscreen and button control Standard
    • Field Statistics Yes
  • Dimensions and Weights

    • Length - Standard 195 in 495.3 cm
    • Height 117 in 297.2 cm
    • Height - With Inline Ramp 129 in 327.7 cm
    • Width (With Flotation Tires and Scale) 129 in 327.7 cm
    • Weight (Fully Optioned) 8600 lbs 3900.9 kg
    • Drawbar Weight 1650 lbs 748.4 kg
  • Drive System

    • Driveline 80 degree CV, 1000 rpm
    • Roller Chain Single 50, 60, 80
    • Torque Protection - Main Input Shaft Cutout clutch
    • Torque Protection - Pick-up Friction with slip sensing
    • Bearing and Sprocket Configuration Hex shaft and bearings
    • PTO speed 1000 rpm
  • Optional Features

    • Safety Equipment Safety chain, fire extinguisher
    • Bale ramp Hydraulic operated, inline
    • Restrictor Plates To reduce HP required in less than ideal conditions

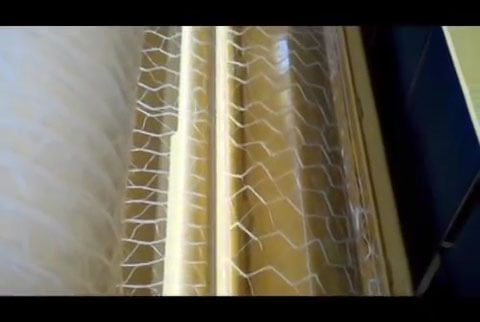

  • Optional Features - Netwrap System

    • Feed Mechanism Friction pan onto main belts
    • Net Tension Brake system varies tension to maximize bales per roll of net
    • Net Width Capable of standard and over-width netwrap - 64" and 67" (162.6 cm and 170.2 cm)
    • Net Storage 1 extra roll
  • Standard Details

    • Bale Formation Open throat vertical chamber with drum, hydraulic/spring belt tension
    • Monitor/Controller E-Link Pro
    • Machine Adjustments Gauge wheel height, hydraulic density
    • Miscellaneous Drop 'n Go bale ejection
    • Safety Equipment Tail lights, SMV sign
    • Tailgate Cylinders Cushion
    • Density System Adjustable hydraulic
    • Tire Size - Standard 21.5L-16.1
  • Wide Pickup

    • Width (Tooth to Tooth) 77 in 195.6 cm
    • Width (On Outside Flair) 90 in 228.6 cm
    • Tooth Bars 6.8 in. (17.27 cm)
    • Number of Teeth 65 Rubber mounted double tines with 3 1/16 in (7.8 cm) spacing
    • Stripper Band Diameter 12.6 in 32 cm
    • Drive Single 50, 60, 80
    • Floatation Gauge wheels 7.10-16 HD semi-pneumatic with spring assist
    • Pickup Lift Hydraulic pickup lift standard
  • Bale Forming Chamber

    • Type of Chamber Variable
    • Drive Roller Size 5.5
    • Drum Roller Size 12 in. (30.5 cm) with 1.8 in. (4.5 cm) hex bearings
    • Idler Roller Size 3.5 in 8.9 cm
    • Start Roller Size 4.5 in 11.4 cm
    • Number of Plys 3-Ply mini rough top
    • Width of Belt 6.8 in 17.3 cm
    • Number of Belts 8
    • Type of Lace Alligator Rivet
    • Length of Belt - Long 540 in 1371.6 cm
    • Length of Belt - Short 533 in 1353.8 cm
  • Bale Size

    • Bale Diameter 72 in 182.9 cm
    • Bale Width 61 in 154.9 cm
  • Tractor Requirements

    • Horsepower Required 150 hp 111.9 kw

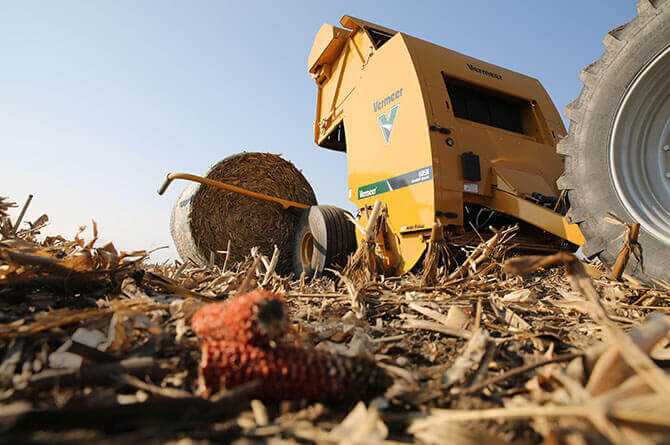

See it in action

Talk to a Vermeer Dealer Today

From helping you select the right equipment, to training operators, to providing the parts and service you need on a jobsite or in the field, Vermeer dealers will give you the localized support you're looking for.

* Required Field
*
*
*
*
*
*
*
*
I have read and agree to this notice of personal information processing. *
I am 18 years or older. *
I confirm I have read and agree to the Vermeer Privacy Policy, terms and conditions. *
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Current Special Offers

<span>0% financing up to 60 months</span> or cash back on select models

0% financing up to 60 months or cash back on select models

Now, through April 30, 2020 qualified buyers can receive 0% interest for up to 60 months or cash back on the purchase of select new Vermeer forage equipment.
See the offer

More about the Vermeer 605N Cornstalk Special baler

Strong stalks call for tough equipment

Strong stalks call for tough equipment

Making baled cornstalks today requires a baler that can handle increased rigidity and strength.

Read more
Why Dan Shamburg switched to the Vermeer 605N Cornstalk Special baler

Why Dan Shamburg switched to the Vermeer 605N Cornstalk Special baler

When Dan Shamburg's old baler broke down, he borrowed a Vermeer 605N Cornstalk Special baler from his neighbor — the rest, as they say, is history.

Read more

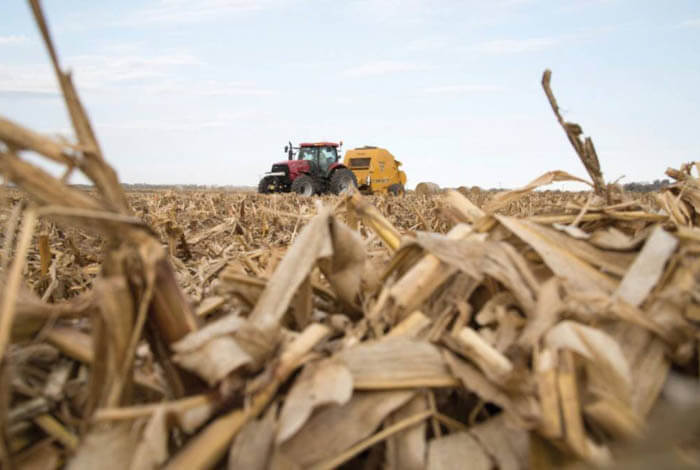

Equipment considerations when baling corn stover
