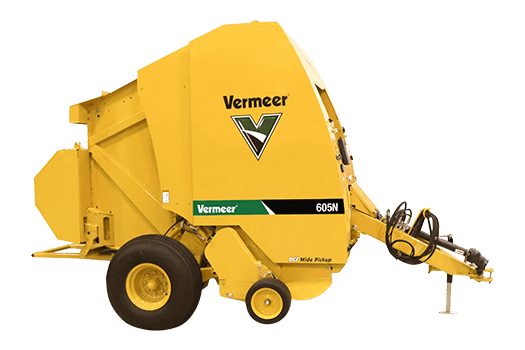

Like all Vermeer products, the 605N Vermeer balers are built to last.

Find A Dealer Request More Info

With a sleek design, these balers may look different, but what hasn’t changed is the high performance and reliability they have to offer. Boasting durable, heavy-duty components and the ability to perform at a high capacity, the 605N Vermeer baler works hard to help you run smoothly and efficiently.

Like all Vermeer products, the 605N Vermeer balers are built to last.

With a sleek design, these balers may look different, but what hasn’t changed is the high performance and reliability they have to offer. Boasting durable, heavy-duty components and the ability to perform at a high capacity, the 605N Vermeer baler works hard to help you run smoothly and efficiently.

Find A Dealer Request More Info

Features & Benefits

Dual-stage bale chamber

The dual-stage bale chamber offers increased starting speeds, tighter, more receptive bale starting and smoother, more trouble-free starts. This feature reduces the chamber by 50%, allowing the hay to turn quicker.

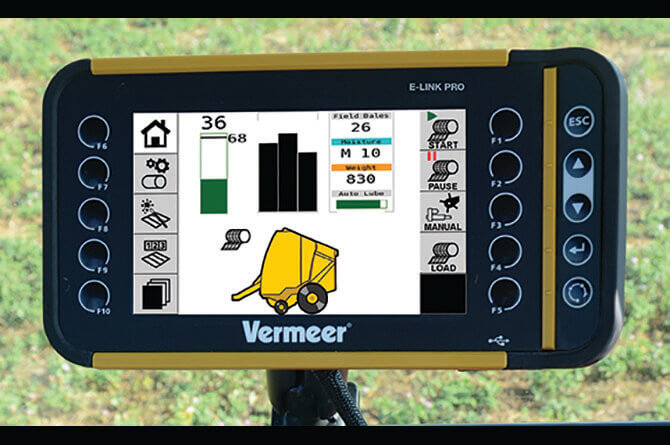

E-Link Pro display

The ISOBUS-compatible, color touchscreen E-Link Pro display offers enhanced usability, such as easily accessible bale weight and moisture readings on the home screen with optional scale and/or moisture sensors. It also comes with the ability to keep track of information for up to 20 customers, with up to 10 fields per customer, electronically. Additionally, the E-Link Pro display provides operators with feedback on the optional Auto Lube greasing system and the pickup clutch control right in the tractor cab.

Optional Auto Lube greasing system

Controlled through the E-Link Pro display, the optional Auto Lube greasing system provides operators automatic lubrication to critical bearings at user-defined intervals. This automatic system performs best with high-pressure polyurea grease.

User-friendly, durable pickup

User-friendly durability abounds in the pickup! The optional pickup clutch automatically stops the pickup when desired bale size is reached lessening inadvertent overfill of the bale chamber and protecting the rollers, bearings and belts. Seals on either side of the pickup bushings keep dirt and dust out, also reducing wear and increasing the life of the pickup. Finally, toolless gauge wheels make adjusting the pickup height easy.

Specifications

Compare Models
Show Metric
  • Bale Size

    • Bale Diameter 36 in - 72 in (91.4 cm - 182.9 cm)
    • Bale Width 61 in 154.9 cm
    • Maximum bale weight 2400 lbs 1088.6 kg
  • Dimensions and Weights

    • Length standard 166 in 421.6 cm
    • Length with net 195 in 495.3 cm
    • Length with ramp 195 in 495.3 cm
    • Height 117 in 297.2 cm
    • Width with standard tires 114 in 289.6 cm
    • Width with optional tires 129 in 327.7 cm
    • Tires Standard - 14L-16.1; Optional - 21.5L-16.1 flotation tire
    • Weight fully optioned 8600 lbs 3900.9 kg
  • Bale Forming Chamber

    • Drive Roller Size 5.5 in (14 cm)
    • Drum roller size 12 in 30.5 cm
    • Idler roller size 3.5 in (8.9 cm), 4.8 in (12.1 cm), 5.5 in (14 cm)
    • Start Roller Size 4.5 in 11.4 cm
    • Belt Type Premium mini rough top
    • Number of Belts 8
    • Width of Belt 6.8 in 17.3 cm
    • Length of belt (long) 540 in 1371.6 cm
    • Length of belt (short) 533 in 1353.8 cm
    • Type of Lace Alligator rivet
    • Silage kit Optional

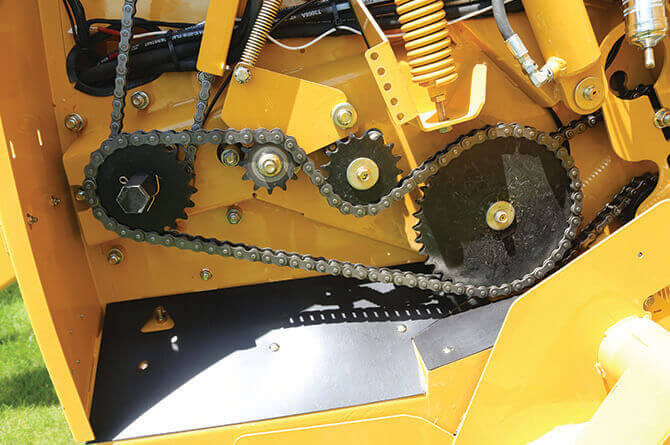

  • Drive System

    • Driveline 540 rpm, standard lube, friction clutch; or 1000 rpm, cut-out clutch
    • Torque protection pickup Radial pin clutch or friction with slip-sensing
    • Roller chains Single 50, 60 and 80
    • Bearing and Sprocket Configuration Hex shaft and bearings
  • Tractor Requirements

    • PTO horsepower minimum 80 hp 59.7 kw
    • PTO horsepower recommended 100 hp 74.6 kw
  • Pickup

    • Pickup type Cammed wide
    • Width tooth to tooth 77 in 195.6 cm
    • Width on outside flair 90 in 228.6 cm
    • Tooth Bars 10
    • Number of Teeth (65) double rubber-mounted
    • Teeth spacing 3-1/16 in (7.8 cm)
    • Stripper bands Steel
    • Flotation Gauge wheels 7.1 - 16 HD semi-pneumatic with spring assist
    • Pickup Lift Hydraulic
  • Control system

    • Control system type E-Link Pro
    • Display 7 in (17.8 cm) color touch screen
    • Field Statistics 20 customers with 10 fields each
    • Field statistics download USB
    • Bale shape indicators Standard
    • Moisture Standard - up to 27%
    • Bales per hour Standard

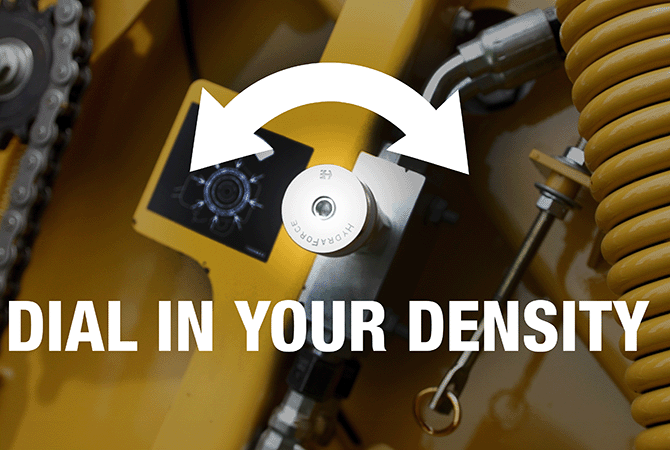

  • Density

    • Bale density adjustments Standard
    • Density readings Physical gauge
    • Cylinder size 3 in (7.6 cm)
  • Bale tie system

    • Twine system Optional
    • Netwrap system Optional
    • Net tension control via mechanical adjustment
    • Extra roll storage Standard
  • Features

    • Bale ramp Optional hydraulic
    • Auto Lube greasing system Optional
    • Grease bank Standard
    • Automatic chain lube system Optional
    • Right-hand door Standard
    • LED maintenance lights Optional
    • Fire extinguisher, safety chain Optional

See it in action

Video 8
Video 7
Video 6
Video 5
Video 3
Image 4
Image 3
Image 2
Image 1

Talk to a Vermeer Dealer Today

From helping you select the right equipment, to training operators, to providing the parts and service you need on a jobsite or in the field, Vermeer dealers will give you the localized support you're looking for.

* Required field
*
*
*
*
*
*
*
*
*
I have read and agree to this notice of personal information processing. *
I am 18 years or older. *
I confirm I have read and agree to the Vermeer Privacy Policy and conditions of use. *
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Current Special Offers

Low-rate financing or cash back on select models

Low-rate financing or cash back on select models

Now through Oct. 31, 2023, qualified buyers can receive low-rate financing or cash back on the purchase of select new Vermeer forage equipment including balers, mowers, rakes, tedders and more.
Get the offer
0% financing for up to 48 months or up to $5,000 cash back on 605N and 605N cornstalk special balers

0% financing for up to 48 months or up to $5,000 cash back on 605N and 605N cornstalk special balers

Now through Oct. 31, 2023, qualified buyers can receive 0% financing for up to 48 months or up to $5,000 cash back on the purchase of a 605N or 605N Cornstalk Special baler.
Get the offer

More about the 605N baler

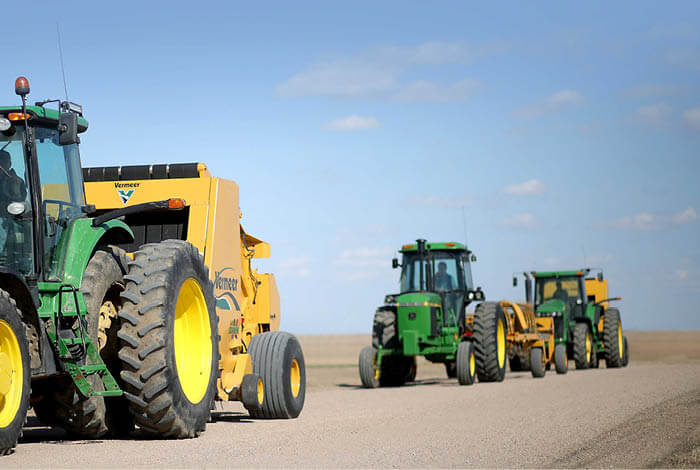

Building a custom hay operation?

Building a custom hay operation?

Customer service, building a customer base, employing good workers, time management and the right equipment are all important from day one in not only getting an operation off the ground, but sustaining it in the long term.

Read more

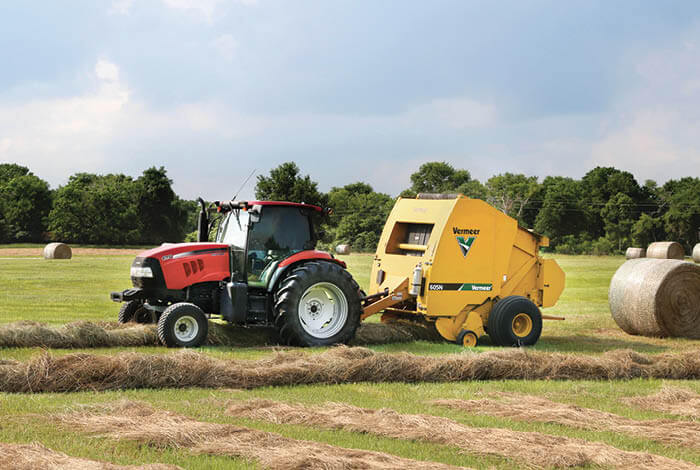

Johnson family comes full circle on Vermeer balers

Johnson family comes full circle on Vermeer balers

It was the early 1970s and the “One-Man Hay System” was still a novel concept. As Johnson will tell you today, it was a smart purchase.

Read more

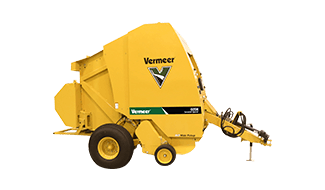

Why Dan Shamburg switched to the Vermeer 605N Cornstalk Special baler
