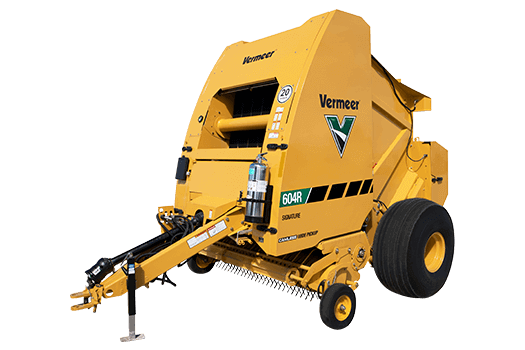

What does your 604R Signature baler say about you? That you value bale appearance and want consistent, square-shouldered bales. That you value simplicity and durability and want a pickup that’s built for a variety of applications. That you value convenient features that allow you to control your baler and ultimately create good-looking, high-density bales. And that you value convenience and want smart features that help make your operation more efficient—like the Atlas Pro™ control system. A Signature says it all.

A signature bale every time.

What does your 604R Signature baler say about you? That you value bale appearance and want consistent, square-shouldered bales. That you value simplicity and durability and want a pickup that’s built for a variety of applications. That you value convenient features that allow you to control your baler and ultimately create good-looking, high-density bales. And that you value convenience and want smart features that help make your operation more efficient—like the Atlas Pro™ control system. A Signature says it all.

Find A Dealer Request More Info

Features & Benefits

Moisture sensors

Moisture sensors come standard on all 604R Signature balers and allow operators to view real-time moisture readings in the cab via the control system.

3-year pickup warranty

Operators can rest assured knowing the Vermeer 3-year pickup warranty covers the internal components and includes parts* and labor on the 604R Signature baler. *Does not include teeth or hardware for teeth.

Rubber-mounted pickup teeth

Rubber-mounted pickup teeth help durability and tooth life. With an increased number of tines, the 604R Signature allows more crop to be put into your baler and not left on your field.

Netwrap system

The netwrap system on all 604 R-series balers allows operators to control netwrap tension to help maximize the amount of net spread over the edge of the bale to help maintain square-shouldered bales. A sensor measures the amount of net left on the roll which is displayed on a digital gauge within the Atlas Pro control system in the cab.

5-bar camless wide pickup

Equipped with a 5-bar, camless wide pickup, the 604R Signature is designed to handle high crop capacity. This 71-in (180.3-cm) pickup is designed with no cam tracks or follower bearings to help minimize machine maintenance.

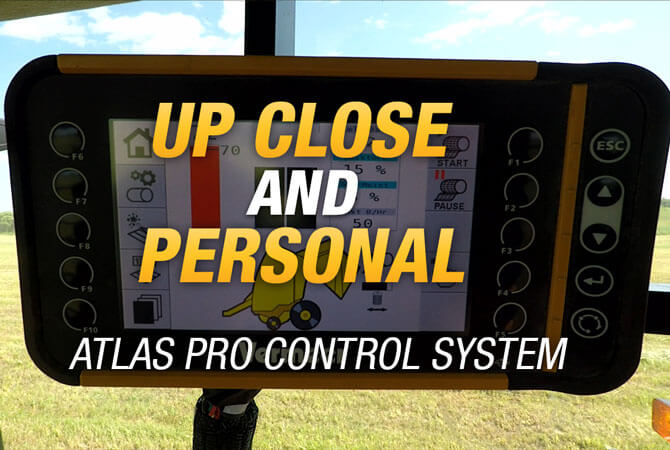

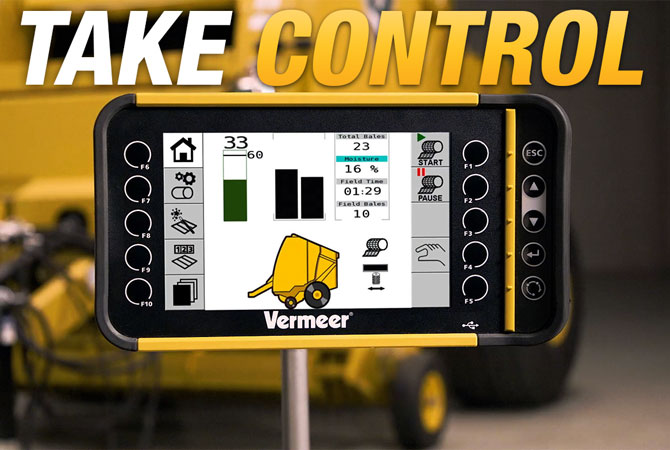

Atlas Pro control system

Atlas Pro™ control system is equipped with a 7-in (17.8-cm) color touchscreen display that gives operators advanced, real-time field statistics for up to 50 fields and allows you to view and adjust various baler settings including netwrap tension, bale density settings and monitor moisture levels all while in-cab.

Specifications

Compare Models
  • Bale Size

    • Bale Diameter 72 in 182.9 cm
    • Bale Width 47 in 119.4 cm
    • Bale Weight 2400 lbs 1088.6 kg
  • Dimensions and Weights

    • Length - Standard 164 in 416.6 cm
    • Length (With Net) 184 in 467.4 cm
    • Length (With Ramp) 206 in 523.2 cm
    • Height 121 in 307.3 cm
    • Width - Standard 102 in 259.1 cm
    • Width (With Flotation Tires) 115 in 292.1 cm
    • Weight (Fully Optioned) 7280 lbs 3302.2 kg
    • Drawbar Weight 1480 lbs 671.3 kg
  • Bale Forming Chamber

    • Type of Chamber Variable
    • Drive Roller Size Two 5.5 in (14 cm) diameter, rubber coated, with 1.75 in (4.4 cm) hex bearings
    • Start Roller Size 5.3 in 13.5 cm
    • Number of Plys 3-ply mini rough top
    • Width of Belt 6.8 in 17.3 cm
    • Number of Belts 6
    • Type of Lace Alligator® Rivet
    • Length of Belt - Long 563.5 in 1431.3 cm
    • Length of Belt - Short 557 in 1414.8 cm
  • Drive System

    • Driveline 80 deg CV, optional 540 rpm or 1000 rpm
    • Roller Chain Single 60 and 80
    • Torque Protection - Main Input Shaft 540 rpm friction, 1000 rpm cutout
    • Torque Protection - Pick-up Radial pin clutch
    • Bearing and Sprocket Configuration Hex drive shafts and bearings
  • Tractor Requirements

    • Horsepower Required 70 hp 52.2 kw
    • Horsepower Recommended 90 hp 67.1 kw
  • Wide Pickup

    • Width (Tooth to Tooth) 71 in 180.3 cm
    • Width (On Outside Flair) 74 in 188 cm
    • Tooth Bars 5
    • Number of Teeth 70 rubber with 2.83 in (7.2 cm) spacing
    • Stripper Band Diameter 12.6 in 32 cm
    • Drive Single 60
    • Floatation Gauge wheels 4.8 - 16 HD semi-pneumatic with spring assist
    • Pickup Lift Hydraulic standard
  • Standard Details

    • Bale Formation Open throat rotor feed to vertical camber, hydraulic belt tension
    • Monitor/Controller Atlas Pro™ control system
    • Machine Adjustments Adjustable gauge wheel height
    • Miscellaneous 3-year pickup warranty
    • Safety Equipment SMV sign/tail lights
    • Tailgate Cylinders Hydraulic cylinders
    • Density System Adjustable hydraulic bale density control via control system with digital gauge
    • Tire Size - Standard 14L - 16.1 tires
  • Bale Monitor

    • Monitor Atlas Pro™ control system
    • Bale Shape Feedback (Left (L) / Center (C) / Right (R) indicators) Left and right
    • Number of wraps per bale for Net Wrap Adjustable from 1.5 to 8
    • Number of Start/Center/End wraps for twine Start 1-6, Center 1-8, End 1-7
    • Manual Override Standard
    • Pause function Standard
    • "Near Full" and "Full Bale" alarms Standard
    • Tailgate locked alarm/indicator Standard
    • Alarm on/off/volume control Standard
    • Real-time bale size data Yes
    • Real-time bale weight data Optional
    • Real-time moisture data Yes
    • Bales per hour Yes
    • Tons per hour Optional
    • Monitor Mount Standard
    • Self-diagnostic monitor and sensors Standard
    • Error history Standard
    • Touchscreen and button control Standard
    • Electronic Bale Density control Standard
    • Field Statistics 50 Fields + field names
  • Optional Features - Twine Tie System

    • Feed Mechanism Single arm applying two twines
    • Twine Tension Adjustable spring loaded tension plates
    • Twine Storage 7 balls routed
  • Optional Features - Netwrap System

    • Feed Mechanism Friction pan feed system onto main belts
    • Net Tension Yes
    • Net Width Capable of standard and over width netwrap
    • Net Storage 1 extra roll
  • Optional Features

    • Tires - Optional 21.5 L - 16.1 tires
    • Safety Equipment Fire extinguisher, safety chain
    • Miscellaneous Scale kit
    • Work Lights Set of three work lights

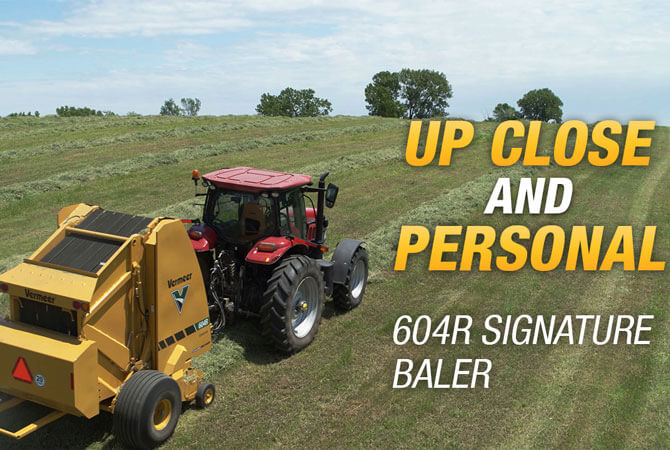

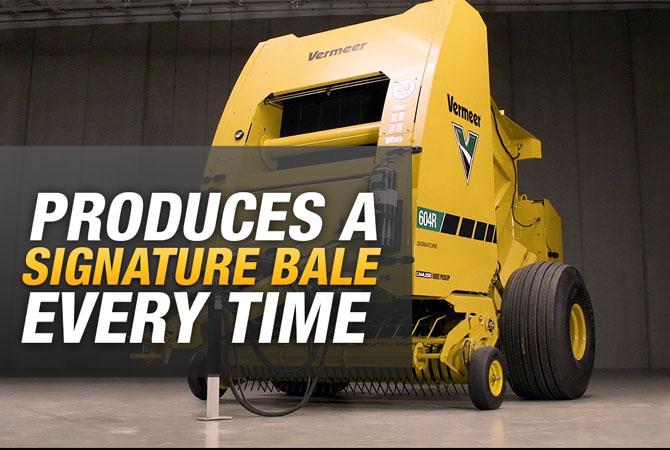

See it in action
