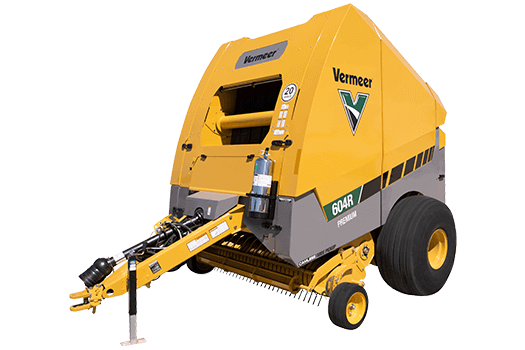

High-producing haymakers have told us they want three things in their baler: they want it to be strong, fast and smart. So, we got to work to design and build the latest baler from Vermeer — the 604R Premium baler. It may have a new look, but what’s inside and comes out the back of the baler is what matters most. This is premium haymaking.

Fast. Strong. Smart.

High-producing haymakers have told us they want three things in their baler: they want it to be strong, fast and smart. So, we got to work to design and build the latest baler from Vermeer — the 604R Premium baler. It may have a new look, but what’s inside and comes out the back of the baler is what matters most. This is premium haymaking.

Find A Dealer Request More Info

Features & Benefits

Smart features

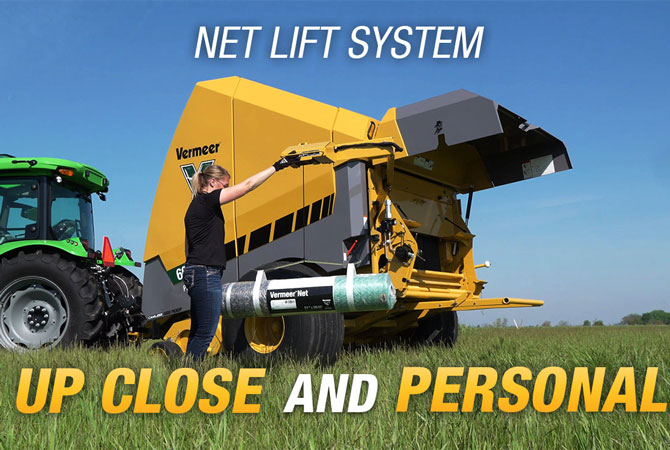

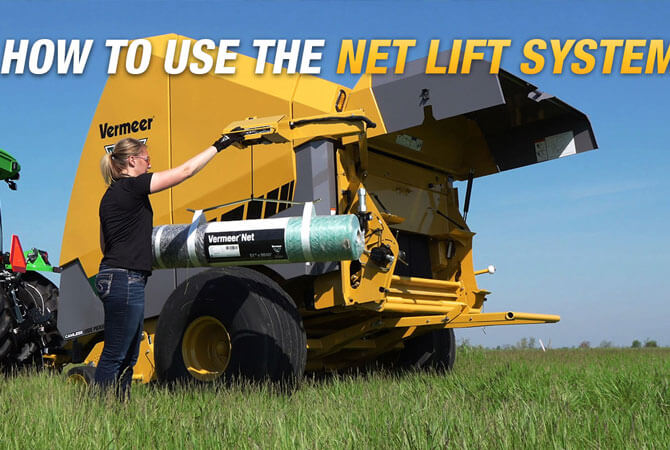

Between the auto-eject system that can tie the bale and open and close the tailgate without operator assistance and the net lift system that lifts the roll of netwrap for the operator, this machine provides a smarter, more efficient way to make hay.

Increased capacity

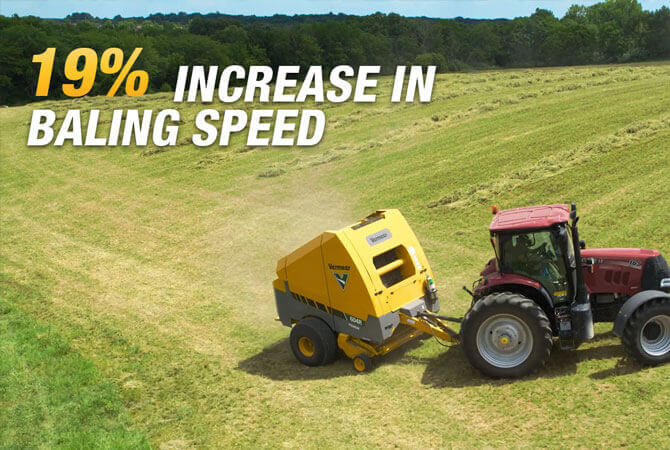

Increased capacity is achieved by belts that spin 19 percent faster than the 604R Signature which allow hay to enter the chamber faster and the bale to tie quicker. Bale density can be controlled in cab from the Atlas Pro™ control system monitor allowing operators to decide how dense to make the bale. The 604R Premium baler can produce bales up to 30% more dense when compared to the 604R Classic and Signature.

Camless pickup

At 71-in (180.3-cm) wide, this camless pickup with rubber-mounted pickup teeth and new poly pickup bands is designed to maximize productivity and help reduce maintenance related to wear parts (the 604R balers have 30 fewer parts compared to previous cammed pickup balers).

Specifications

Compare Models
  • Bale Size

    • Bale Diameter 72 in 182.9 cm
    • Bale Width 47 in 119.4 cm
    • Bale Weight 2400 lbs 1088.6 kg
  • Dimensions and Weights

    • Length - Standard 184 in 467.4 cm
    • Length (With Net) 184 in 467.4 cm
    • Length (With Ramp) 206 in 523.2 cm
    • Height 121 in 307.3 cm
    • Width - Standard 115 in 292.1 cm
    • Width (With Flotation Tires) 115 in 292.1 cm
    • Weight (Fully Optioned) 8020 lbs 3637.8 kg
    • Drawbar Weight 1520 lbs 689.5 kg
  • Bale Forming Chamber

    • Type of Chamber Variable
    • Drive Roller Size Two 5.5 in (14 cm) diameter, rubber coated, with 1.75 in (4.4 cm) hex bearings
    • Start Roller Size 5.3 in 13.5 cm
    • Number of Plys 3-ply mini rough top
    • Width of Belt 6.8 in 17.3 cm
    • Number of Belts 6
    • Type of Lace Alligator® Rivet
    • Length of Belt - Long 563.5 in 1431.3 cm
    • Length of Belt - Short 557 in 1414.8 cm
  • Drive System

    • Driveline 80 deg CV, optional 540 rpm or 1000 rpm, Extended lube
    • Roller Chain Single 80 and 100
    • Torque Protection - Main Input Shaft Automatic clutch
    • Torque Protection - Pick-up Radial pin clutch
    • Bearing and Sprocket Configuration Hex drive shafts and bearings
  • Tractor Requirements

    • Horsepower Required 75 hp 55.9 kw
    • Horsepower Recommended 95 hp 70.8 kw
  • Wide Pickup

    • Width (Tooth to Tooth) 71 in 180.3 cm
    • Width (On Outside Flair) 74 in 188 cm
    • Tooth Bars 5
    • Number of Teeth 70 rubber with 2.83 in (7.2 cm) spacing
    • Stripper Band Diameter 12.6 in 32 cm
    • Drive Single 80
    • Floatation Gauge wheels 7.1 - 16 HD semi-pneumatic with spring assist
    • Pickup Lift Hydraulic standard
  • Standard Details

    • Bale Formation Open throat rotor feed to vertical camber, hydraulic belt tension
    • Monitor/Controller Atlas Pro™ control system
    • Machine Adjustments Adjustable gauge wheel height, automatic lube greasing system
    • Miscellaneous 3-year pickup warranty
    • Safety Equipment SMV sign/tail lights
    • Tailgate Cylinders Hydraulic cylinders
    • Density System Adjustable hydraulic bale density control via control system with digital gauge
    • Tire Size - Standard 21.5L - 16.1 tires
  • Bale Monitor

    • Monitor Atlas Pro™ control system
    • Bale Shape Feedback (Left (L) / Center (C) / Right (R) indicators) Left and right
    • Number of wraps per bale for Net Wrap Adjustable from 1.5 to 8
    • Number of Start/Center/End wraps for twine Start 1-6, Center 1-8, End 1-8
    • Manual Override Standard
    • Pause function Standard
    • "Near Full" and "Full Bale" alarms Standard
    • Tailgate locked alarm/indicator Standard
    • Alarm on/off/volume control Standard
    • Real-time bale size data Yes
    • Real-time bale weight data Optional
    • Real-time moisture data Yes
    • Bales per hour Yes
    • Tons per hour Optional
    • Monitor Mount Standard
    • Self-diagnostic monitor and sensors Standard
    • Error history Standard
    • Touchscreen and button control Standard
    • Electronic Bale Density control Standard
    • Field Statistics 50 Fields + field names
  • Optional Features - Netwrap System

    • Feed Mechanism Friction pan feed system onto main belts
    • Net Tension Yes
    • Net Width Capable of standard and over width netwrap
    • Net Storage 1 extra roll
  • Optional Features

    • Safety Equipment Fire extinguisher, safety chain
    • Miscellaneous Scale kit
