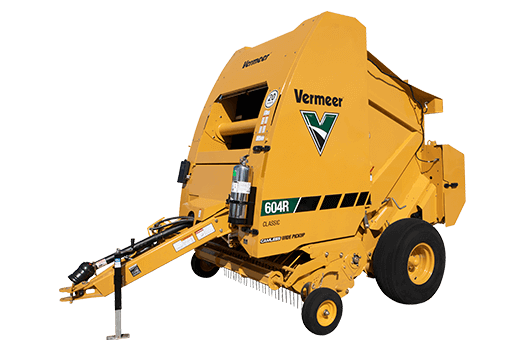

True classics stand the test of time and the Vermeer 604R Classic baler was designed with the customer in mind.

Find A Dealer Request More Info

With minimal setup, low horsepower requirements, user-friendly controls and the option to bale with netwrap or twine, the 604R Classic baler is an ideal fit for small to midsize operations who have affordability in mind.

True classics stand the test of time and the Vermeer 604R Classic baler was designed with the customer in mind.

With minimal setup, low horsepower requirements, user-friendly controls and the option to bale with netwrap or twine, the 604R Classic baler is an ideal fit for small to midsize operations who have affordability in mind.

Find A Dealer Request More Info

Features & Benefits

Low horsepower requirements

Low horsepower requirements allow operators to hook up the baler to more tractors.

Hydraulic density system

A new hydraulic density system allows operators to change bale density (via the Atlas control system) based on crop type, moisture levels and bale weight preferences right from the cab.

Affordable

The Vermeer 604R Classic baler was designed for the customer. A customer who has affordability in mind but still wants to put up quality 6 x 4 bales.

User-friendly controls

The new AtlasTM control system and netwrap system provide operators with user-friendly controls to achieve the consistent, square-shouldered bales that we all know and love.

Specifications

Compare Models
  • Bale Size

    • Bale Diameter 72 in 182.9 cm
    • Bale Width 47 in 119.4 cm
    • Bale Weight 2000 lbs 907.2 kg
  • Dimensions and Weights

    • Length - Standard 164 in 416.6 cm
    • Length (With Net) 184 in 467.4 cm
    • Length (With Ramp) 198 in 502.9 cm
    • Height 121 in 307.3 cm
    • Width - Standard 101 in 256.5 cm
    • Weight (Fully Optioned) 6820 lbs 3093.5 kg
    • Drawbar Weight 1440 lbs 653.2 kg
  • Bale Forming Chamber

    • Type of Chamber Variable
    • Drive Roller Size Two 5.5 in (14 cm) diameter, rubber coated, with 1.75 in (4.4 cm) hex bearings
    • Start Roller Size 5.3 in 13.5 cm
    • Number of Plys 3-ply mini rough top
    • Width of Belt 6.8 in 17.3 cm
    • Number of Belts 6
    • Type of Lace Alligator® Rivet
    • Length of Belt - Long 536.5 in 1362.7 cm
    • Length of Belt - Short 557 in 1414.8 cm
  • Drive System

    • Driveline 80 deg CV, 540 rpm
    • Roller Chain Single 60 and 80
    • Torque Protection - Main Input Shaft Friction clutch
    • Torque Protection - Pick-up Radial pin clutch
    • Bearing and Sprocket Configuration Hex drive shafts and bearings
  • Tractor Requirements

    • Horsepower Required 60 hp 44.7 kw
    • Horsepower Recommended 80 hp 59.7 kw
  • Wide Pickup

    • Width (Tooth to Tooth) 71 in 180.3 cm
    • Width (On Outside Flair) 74 in 188 cm
    • Tooth Bars 4
    • Number of Teeth 65 steel coil with 2.83" (7.2 cm) spacing
    • Stripper Band Diameter 12.6 in 32 cm
    • Drive Single 60
    • Floatation Gauge wheels 4.8 - 16 HD semi-pneumatic with spring assist
    • Pickup Lift Manual standard, hydraulic optional
  • Standard Details

    • Bale Formation Open throat rotor feed to vertical camber, hydraulic belt tension
    • Monitor/Controller Atlas™ control system
    • Machine Adjustments Adjustable gauge wheel height
    • Miscellaneous 3-year pickup warranty
    • Safety Equipment SMV sign/tail lights
    • Tailgate Cylinders Hydraulic cylinders
    • Density System Adjustable hydraulic bale density control via control system with optional physical gauge
    • Tire Size - Standard 14L - 16.1 tires
  • Bale Monitor

    • Monitor Atlas™ control system
    • Bale Shape Feedback (Left (L) / Center (C) / Right (R) indicators) Optional left and right
    • Number of wraps per bale for Net Wrap Adjustable from 1.5 to 8
    • Number of Start/Center/End wraps for twine Start 1-6, Center 1-8, End 1-6
    • Manual Override Standard
    • Pause function Standard
    • "Near Full" and "Full Bale" alarms Standard
    • Tailgate locked alarm/indicator Standard
    • Alarm on/off/volume control Volume control only
    • Real-time bale size data Yes
    • Real-time bale weight data No
    • Real-time moisture data Optional
    • Bales per hour Yes
    • Tons per hour No
    • Monitor Mount Standard
    • Self-diagnostic monitor and sensors Standard
    • Error history Active only
    • Touchscreen and button control Touchscreen only
    • Electronic Bale Density control Standard
    • Field Statistics Basic 10 Fields
  • Optional Features - Twine Tie System

    • Feed Mechanism Single arm applying two twines
    • Twine Tension Adjustable spring loaded tension plates
    • Twine Storage 6 balls routed
  • Optional Features - Netwrap System

    • Feed Mechanism Friction pan feed system onto main belts
    • Net Tension Yes
    • Net Width Capable of standard and overwidth netwrap
    • Net Storage 1 extra roll
  • Optional Features

    • Pickup Lift Hydraulic (replaces manual lift crank)
    • Safety Equipment Fire extinguisher, safety chain
    • Bale ramp Hydraulic bale ramp
    • Hydraulic Density Gauge Physical gauge
