Oncoming rain clouds can ruin a hay producer’s day. That’s why silage is quickly becoming a preferable option for producers everywhere who are tired of waiting on good weather and want high-quality forage for their cattle. According to Michigan State University Extension, silage harvested within five days of the optimal time has a feed quality advantage of $26.46 per ton over dry hay. For some producers, that’s reason enough to make the switch.

Of course, it takes a tough baler to handle the added tonnage of high-moisture hay.

The Vermeer Generation 3 604 Pro baler was specially designed and built from the ground up in Pella, Iowa, to handle the rigors of baling wet, heavy crops — combining strength and smart features while still giving you the versatility of having a baler that can bale dry hay.

Built right. Right here.

Oncoming rain clouds can ruin a hay producer’s day. That’s why silage is quickly becoming a preferable option for producers everywhere who are tired of waiting on good weather and want high-quality forage for their cattle. According to Michigan State University Extension, silage harvested within five days of the optimal time has a feed quality advantage of $26.46 per ton over dry hay. For some producers, that’s reason enough to make the switch.

Of course, it takes a tough baler to handle the added tonnage of high-moisture hay.

The Vermeer Generation 3 604 Pro baler was specially designed and built from the ground up in Pella, Iowa, to handle the rigors of baling wet, heavy crops — combining strength and smart features while still giving you the versatility of having a baler that can bale dry hay.

Find A Dealer Request More Info

Features & Benefits

Heavy-duty components

The G3 Pro baler is designed with a solid frame, heavy-duty components like large bearings, chains and rollers, and poly pickup bands to fit the needs of North American silage producers handling wet, heavy bales.

Xtracut17 chopper system

Xtracut17 chopper system cuts the crop for better bale density, fermentation, silage quality and digestibility. The pre-cut crop also provides a consistent material for additions to rations fed using a mixer wagon.

Netwrap system

The new netwrap system is designed for operator convenience with netwrap now in the back and the ability to adjust netwrap tension and monitor netwrap available on the roll.

Atlas Pro control system

Atlas Pro™ control system is equipped with a 7-in (17.8-cm) color touchscreen display that gives operators advanced, real-time field statistics for up to 50 fields and allows you to view and adjust various baler settings including netwrap tension, bale density settings and monitor moisture levels all while in-cab.

Specifications

Compare Models
  • Bale Monitor

    • Monitor Atlas Pro™ control system
    • Bale Shape Feedback (Left (L) / Center (C) / Right (R) indicators) Left and right
    • Number of wraps per bale for Net Wrap Adjustable from 1.5 to 8
    • Manual Override Standard
    • Pause function Standard
    • "Near Full" and "Full Bale" alarms Standard
    • Tailgate locked alarm/indicator Standard
    • Alarm on/off/volume control Standard
    • Real-time bale size data Yes
    • Real-time bale weight data Optional
    • Bales per hour Yes
    • Tons per hour Optional
    • Monitor Mount Standard
    • Self-diagnostic monitor and sensors Standard
    • Error history Standard
    • Touchscreen and button control Standard
    • Electronic Bale Density control Standard
    • Dual Knife Bank Control Standard
    • Field Statistics 50 Fields + field names
  • Drive System

    • Driveline 80 deg CV, optional 540 rpm
    • Roller Chain Single 60, 80, 100 and Double 80
    • Torque Protection - Main Input Shaft Cut-out clutch
    • Torque Protection - Pick-up Radial pin clutch
    • Bearing and Sprocket Configuration Round and Hex drive shafts, greasable roller bearings
  • Optional Features

    • Safety Equipment Fire extinguisher, safety chain
    • Miscellaneous Scale kit, automatic chain lube system
    • Work Lights Set of three work lights
  • Optional Features - Cutting Attachment

    • Knife Protection HydroFlexControl, hydraulic accumulator
    • Engage/Disengage Standard
    • Number of Knives 17
  • Optional Features - Netwrap System

    • Feed Mechanism Friction pan feed system onto main belts
    • Net Tension Yes
    • Net Width Capable of standard and over width netwrap
    • Net Storage 1 extra roll
  • Standard Details

    • Bale Formation Horizontal chamber with bottom drum
    • Monitor/Controller Atlas Pro™ control system
    • Safety Equipment SMV sign, reflectors, tail lights
    • Tailgate Cylinders Hydraulic cylinders, single acting
    • Density System Adjustable hydraulic bale density control via control system with digital gauge
    • Tire Size - Standard 21.5L - 16.1 tires
  • Wide Pickup

    • Width (Tooth to Tooth) 71 in 180.3 cm
    • HYDROFLEX Control Standard
    • Width (On Outside Flair) 74 in 188 cm
    • Tooth Bars 5
    • Number of Teeth 75 spring with 2.5 in (6.4 cm) spacing
    • Stripper Band Diameter 13.5 in 34.3 cm
    • Drive Single 60
    • Floatation Gauge wheels 7.10-16 HD semi-pneumatic - spring assist
    • Pickup Lift Hydraulic standard
  • Bale Forming Chamber

    • Type of Chamber Variable
    • Drive Roller Size (1) 7.1 in (18 cm) diameter, rubber covered and (1) 6.6 in (16.8 cm) in diameter, steel, all with 50 mm (1.9 in) bearings
    • Drum Roller Size 9.5" ribbed
    • Start Roller Size 8 in 20.3 cm
    • Number of Plys 3-ply mini rough top
    • Width of Belt 11.2 in 28.4 cm
    • Number of Belts 4
    • Type of Lace Endless belts
  • Dimensions and Weights

    • Length - Standard 213 in 541 cm
    • Height 120 in 304.8 cm
    • Width - Standard 112 in 284.5 cm
    • Width (With Flotation Tires) 112 in 284.5 cm
    • Weight (Fully Optioned) 10000 lbs 4535.9 kg
    • Drawbar Weight 920 lbs 417.3 kg
  • Bale Size

    • Bale Diameter 72 in 182.9 cm
    • Bale Width 48.4 in 122.9 cm
    • Bale Weight 2400 lbs 1088.6 kg
  • Tractor Requirements

    • Horsepower Required 90 hp 67.1 kw
    • Horsepower Recommended 120 hp 89.5 kw

See it in action

Talk to a Vermeer Dealer Today

From helping you select the right equipment, to training operators, to providing the parts and service you need on a jobsite or in the field, Vermeer dealers will give you the localized support you're looking for.

* Required Field
*
*
*
*
*
*
*
*
I have read and agree to this notice of personal information processing. *
I am 18 years or older. *
I confirm I have read and agree to the Vermeer Privacy Policy, terms and conditions. *
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Current Special Offers

<span>Get an additional $2000 discount</span> on your purchase

Get an additional $2000 discount on your purchase

Now through April 30, qualified buyers can receive an additional $2000 discount on top of the current retail financing offers when purchasing a qualifying Vermeer Pro baler and Vermeer bale wrapper.
See the offer
<span>0% financing up to 36 months</span> or cash back on select models

0% financing up to 36 months or cash back on select models

Now through April 30, 2020, qualified buyers can receive 0% interest for up to 36 months or cash back on the purchase of select new Vermeer forage equipment.
See the offer

More about the Vermeer 604 Pro G3 baler

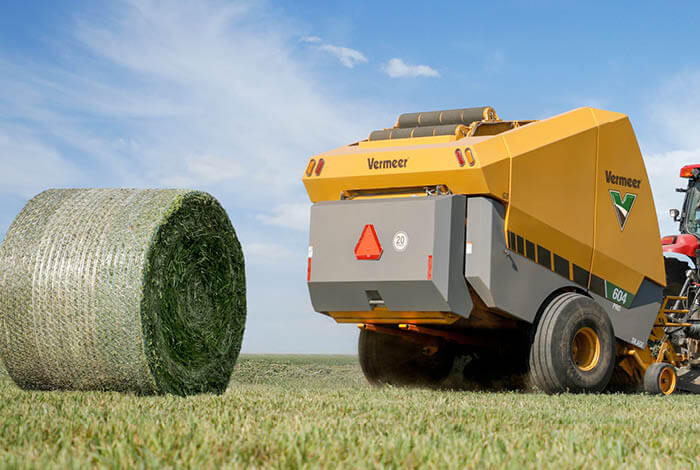

Balers, tedders create new silage baling efficiencies

Balers, tedders create new silage baling efficiencies

Together, the new 10-series TE tedders and 604 Pro Generation 3 baler will help ease the time crunch hay and forage producers feel when facing tight time frames as a result of things like inclement weather.

Read more

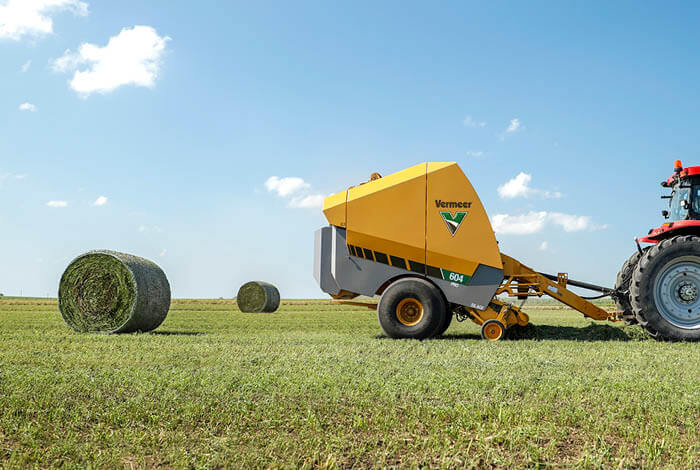

Engineers designing solutions: 604 Pro G3
