The 5520 is designed for hard-working, independent operators who have a sharp eye for great values.

Find A Dealer Request More Info

These smaller 60-in (152.4-cm) diameter balers offer the perfect balance of simplicity, convenience and long-term reliability for the rural lifestyle customer.

The 5520 is designed for hard-working, independent operators who have a sharp eye for great values.

These smaller 60-in (152.4-cm) diameter balers offer the perfect balance of simplicity, convenience and long-term reliability for the rural lifestyle customer.

Find A Dealer Request More Info

Features & Benefits

Advanced netwrap system

Advanced netwrap system makes net easier to feed, easier to operate. No more hassles with belts and rollers. Just feed net directly to the baler’s main belts.

Balanced density system

New balanced density system, with improved belt tracking, increases belt life and produces better-looking bales. Also, Alligator rivet belt laces are used for maximum strength.

Optional Haysaver wheels

Fill the bale chamber corners and build square-shouldered bales with optional Haysaver wheels.

Smaller balers

With a 50-hp (37-kW) tractor, the Rebel 5520 baler produces 5-ft x 5-ft (1.5-m x 1.5-m) bales that weigh up to 1200 lb (544.3 kg).

Specifications

Compare Models
Show Metric
  • Bale Size

    • Bale Diameter 36 in - 60 in (91.4 cm - 152.4 cm)
    • Bale Width 61 in 154.9 cm
    • Maximum bale weight 1400 lbs 635 kg
  • Dimensions and Weights

    • Length standard 150 in 381 cm
    • Length with net 171 in 434.3 cm
    • Length with ramp 167 in 424.2 cm
    • Height 102 in 259.1 cm
    • Width with standard tires 109 in 276.9 cm
    • Tires 12.5L-15
    • Weight fully optioned 5320 lbs 2413.1 kg
  • Bale Forming Chamber

    • Drive Roller Size 5.5 in (14 cm)
    • Drum roller size 12 in 30.5 cm
    • Idler roller size 3.5 in (8.9 cm), 4.8 in (12.1 cm)
    • Start Roller Size 4.5 in 11.4 cm
    • Belt Type Standard mini rough top
    • Number of Belts 7
    • Width of Belt 6.8 in 17.3 cm
    • Length of belt (long) 441 in 1120.1 cm
    • Length of belt (short) 429 in 1089.7 cm
    • Type of Lace Alligator rivet
  • Drive System

    • Driveline 540 rpm, standard lube, radial pin clutch
    • Bearing and Sprocket Configuration Round drive shafts and bearings — hex shaft on drum
  • Tractor Requirements

    • PTO horsepower minimum 50 hp 37.3 kw
    • PTO horsepower recommended 60 hp 44.7 kw
  • Pickup

    • Pickup type Standard
    • Width tooth to tooth 57 in 144.8 cm
    • Width on outside flair 58 in 147.3 cm
    • Width of Haysaver wheels *listed for select models only 87 in 221 cm
    • Tooth Bars 4
    • Number of Teeth (40) double rubber-mounted
    • Flotation Spring assist
    • Pickup Lift Manual
  • Control system

    • Control system type Optional Bale Expert™
    • Display Monochrome LCD screen
    • Moisture Optional - up to 27%
  • Density

    • Bale density adjustments Manual adjustment on relief valve
    • Density readings Optional physical gauge
    • Cylinder size 2.5 in (6.4 cm)
  • Bale tie system

    • Twine system Optional
    • Netwrap system Optional
    • Net tension control via mechanical adjustment
  • Features

    • Bale ramp Optional spring-loaded
    • Fire extinguisher, safety chain Optional

See it in action

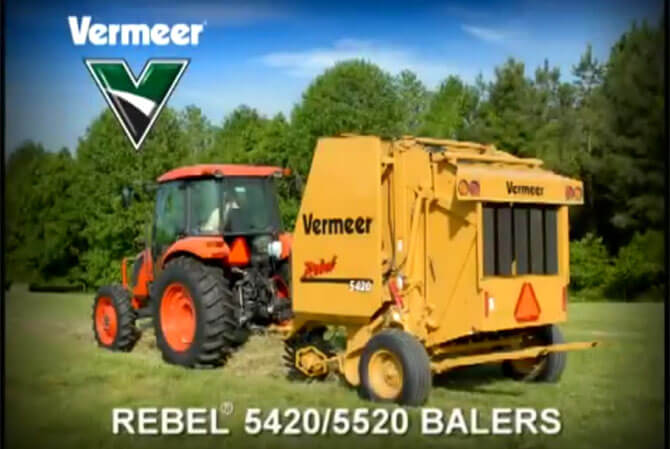

Video 1
