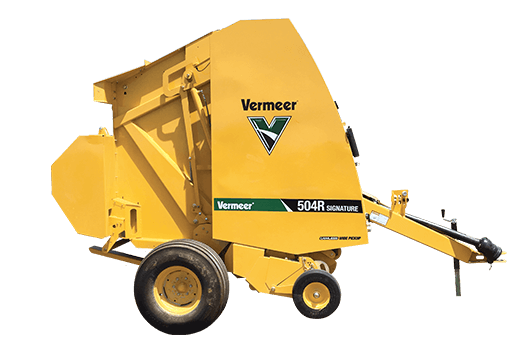

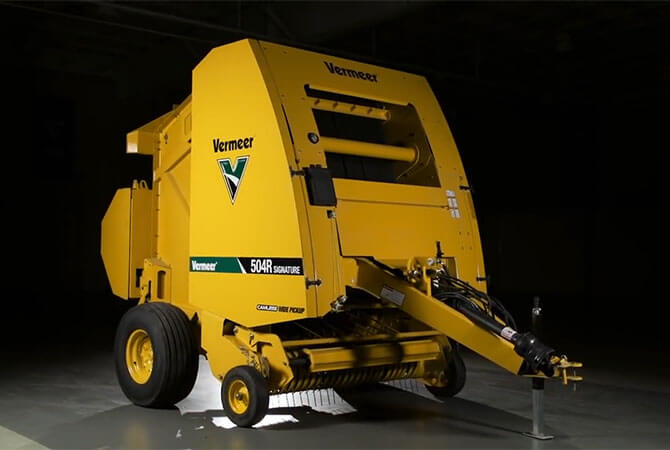

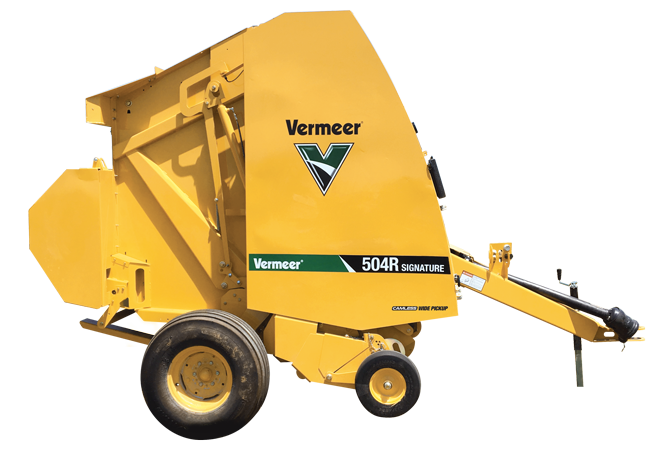

The Signature name says it all. The 504R Signature baler gives the working man a baler for any operation. Designed for producers who harvest primarily dry hay but also want the ability to bale silage when the weather isn’t on their side. It is built upon the three signature pillars of Vermeer balers — convenience, ease of use and durability.

Convenience, ease of use, durability.

The Signature name says it all. The 504R Signature baler gives the working man a baler for any operation. Designed for producers who harvest primarily dry hay but also want the ability to bale silage when the weather isn’t on their side. It is built upon the three signature pillars of Vermeer balers — convenience, ease of use and durability.

Find A Dealer Request More Info

Features & Benefits

Camless wide pickup

A camless wide pickup with no cam tracks or follower bearings allows for a smooth, quieter operation compared to previous models. This durable, 5-bar pickup is equipped with steel teeth for baling tough or heavy crops and features fewer moving parts to help reduce maintenance and prolong the life of the machine.

3-year pickup warranty

The Vermeer 3-year pickup warranty covers the internal components and includes parts* and labor on the 504R Signature baler. Operators can rest assured the pickup is backed by Vermeer parts and service. *Does not include teeth or hardware for teeth.

More total tines

A 5-bar, camless wide pickup features more total tines to gather the crop for big feeding capacity. This helps minimize the wear on each individual tine and more importantly provides a more efficient, positive start of the crop into the bale chamber. More tines can also equal more crop picked up in the field.

Rotor

An aggressive rotor creates positive bale starts while the auger and feeding system forces crop onto rotating belts and then into the chamber for bale formation. Together, along with the camless wide pickup, this forms square-shouldered, dense bales.

Real-time moisture sensors

Real-time moisture sensors come standard on the 504R Signature baler and provide moisture readings via the Atlas™ control system, giving operators access to real-time moisture information in the tractor cab.

Optional hydraulic pickup lift

An optional hydraulic pickup lift provides convenience for operators switching between multiple fields in a day, eliminating the extra trips in and out of the tractor. Available hydraulic controls allow the operator to easily lift and lower the pickup without getting out of the cab to make sure pickup teeth aren’t scraping the ground.

Durable drivetrain

The durable drivetrain handles starting and stopping during operation. The three main drive chains are made with 80 diamond chain to minimize chain maintenance. The upper and lower drive bearings have a 33 percent higher load rating while the clutch’s maximum torque rating is 32 percent higher than on previous models. Durable parts allow operators to efficiently bale dry or wet hay.

Specifications

Compare Models
  • Drive System

    • Driveline 80 deg CV, 540 RPM
    • Roller Chain Single 60 and 80
    • Torque Protection - Main Input Shaft Friction clutch
    • Torque Protection - Pick-up Radial pin clutch
    • Bearing and Sprocket Configuration Round drive shafts and bearings
  • Optional Features

    • Pickup Lift Hydraulic (replaces manual lift crank)
    • Safety Equipment Fire extinguisher, safety chain
    • Bale ramp Bolt-on spring-loaded
    • Restrictor Plates Yes
    • Miscellaneous 3 year pickup warranty
    • Work Lights Set of three flood lights
  • Optional Features - Netwrap System

    • Feed Mechanism Friction pan feed system onto main belts
    • Net Tension Brake system varies tension to maximize bales per roll of net
    • Net Width Capable of standard and over width netwrap
    • Net Storage Net storage - 1 extra roll
  • Optional Features - Twine Tie System

    • Feed Mechanism Single arm applying two twines
    • Twine Tension Adjustable spring loaded tension plates
    • Twine Storage 4 balls
  • Standard Details

    • Bale Formation Open throat rotor feed to vertical chamber, hydraulic/spring belt tension
    • Monitor/Controller Atlas Control System
    • Machine Adjustments Adjustable gauge wheel height
    • Safety Equipment SMV sign/tail lights
    • Tailgate Cylinders Hydraulic

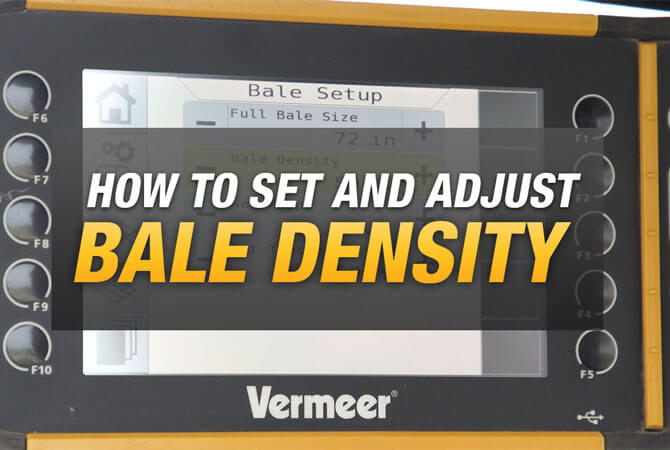

    • Density System Adjustable hydraulic bale density control
    • Tire Size - Standard 31 x 13.5 - 15
  • Wide Pickup

    • Width (Tooth to Tooth) 60 in 152.4 cm
    • Width (On Outside Flair) 68.5 in 174 cm
    • Tooth Bars 5
    • Number of Teeth 60 steel coil with 2.83 in (7.2 cm) spacing
    • Stripper Band Diameter 12.6 in 32.1 cm
    • Drive Single 60 roller chain
    • Floatation Gauge wheels 4.80-16 HD semi-pneumatic with spring assist
    • Pickup Lift Manual standard, Hydraulic optional
  • Bale Forming Chamber

    • Type of Chamber Variable
    • Drive Roller Size Two 4.78 in (12.1 cm) diameter, rubber coated, with 1.9 in (4.9 cm) round bearings
    • Idler Roller Size 3.5 in 8.9 cm
    • Start Roller Size 4.5 in 11.4 cm
    • Number of Plys 3-ply mini rough top
    • Width of Belt 6.8 in 17.3 cm
    • Number of Belts 6
    • Type of Lace Alligator® Rivet
    • Length of Belt - Long 455 in 1155.7 cm
    • Length of Belt - Short 465 in 1181.1 cm
  • Dimensions and Weights

    • Length - Standard 156 in 396.2 cm
    • Length (With Net) 173 in 439.4 cm
    • Length (With Ramp) 169 in 429.3 cm
    • Height 107 in 271.8 cm
    • Width - Standard 100 in 254 cm
    • Weight (Fully Optioned) 5400 lbs 2449.4 kg
    • Drawbar Weight 780 lbs 353.8 kg
  • Bale Size

    • Bale Diameter 60 in 152.4 cm
    • Bale Width 47 in 119.4 cm
    • Bale Weight 1200 lbs 544.3 kg
  • Tractor Requirements

    • Horsepower Required 45 hp 33.6 kw
    • Horsepower Recommended 55 hp 41 kw

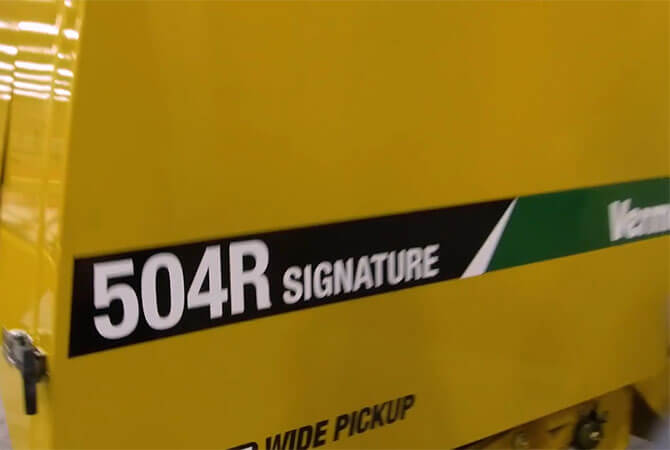

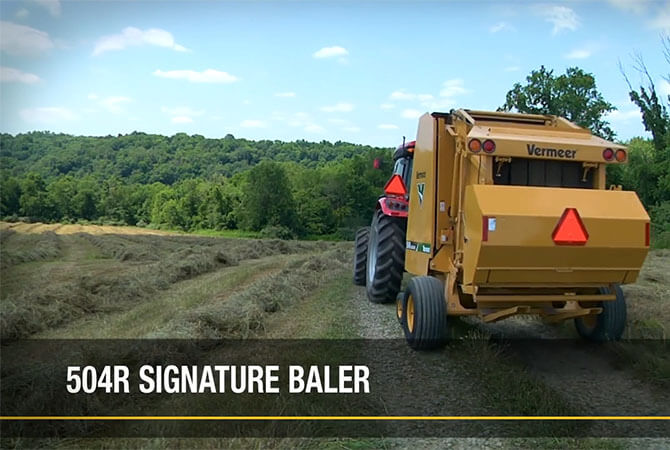

See it in action

Talk to a Vermeer Dealer Today

From helping you select the right equipment, to training operators, to providing the parts and service you need on a jobsite or in the field, Vermeer dealers will give you the localized support you're looking for.

* Required Field
*
*
*
*
*
*
*
*
I have read and agree to this notice of personal information processing. *
I am 18 years or older. *
I confirm I have read and agree to the Vermeer Privacy Policy, terms and conditions. *
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Current Special Offers

<span>0% financing up to 60 months</span> or cash back on select models

0% financing up to 60 months or cash back on select models

Now, through April 30, 2020 qualified buyers can receive 0% interest for up to 60 months or cash back on the purchase of select new Vermeer forage equipment.
See the offer

More about the Vermeer 504R Signature baler

People behind the product - 504R Signature

People behind the product - 504R Signature

When Vermeer launched the 504R Signature baler, it captured the attention of farmers and ranchers across the country. With years of experience and discovering the next greatest thing, we sat down with lead engineers of the Vermeer 504R Signature, Calvin Meinders and Alex Knee, to find out more.

Learn more

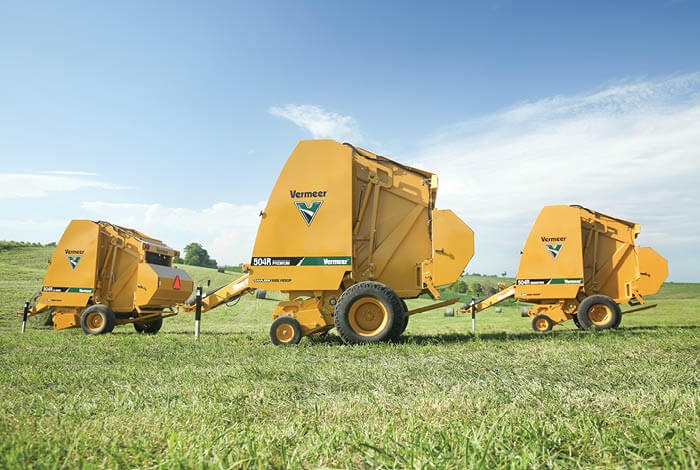

504 R-series balers meet product needs

504 R-series balers meet product needs

Here’s what producers are saying about why each model of the 504 R-series baler is a good fit for their operations.

Learn more

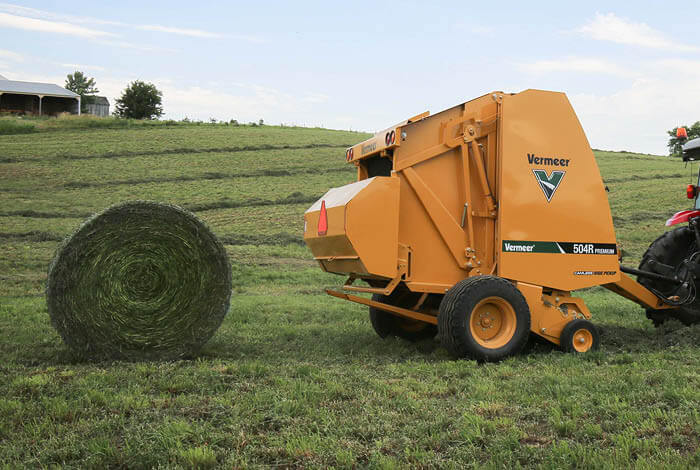

New product spotlight: 504 R-series balers
