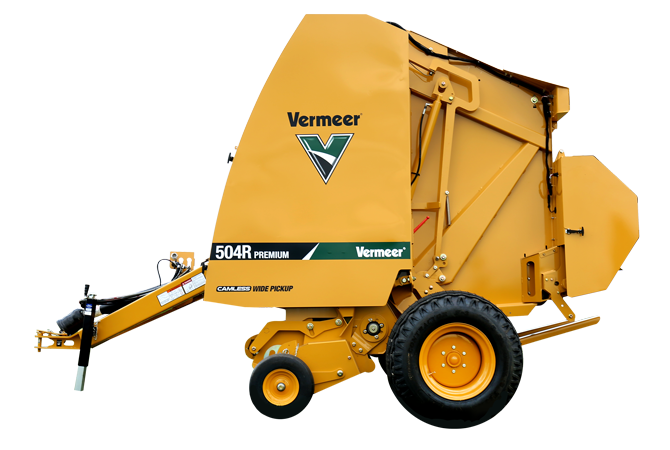

The Vermeer 504R Premium baler is fully loaded and comes standard with a silage kit specially designed for high output of high-moisture crops. This package offers more capacity in heavy crops and produces good looking bales in tough conditions. Silage or not, this is your first-class baler.

More than a silage special.

The Vermeer 504R Premium baler is fully loaded and comes standard with a silage kit specially designed for high output of high-moisture crops. This package offers more capacity in heavy crops and produces good looking bales in tough conditions. Silage or not, this is your first-class baler.

Find A Dealer Request More Info

Features & Benefits

Standard silage kit

As baleage gains popularity across North America, operators demand a baler that is specially designed and built to handle it. The 504R Premium comes with a standard silage kit, ready for your high-moisture hay needs.

Heavy-duty components

With heavy-duty components, like “rock” belts, optional endless belts and optional float tires, this baler is designed for maximum productivity and output.

Atlas control system

The Atlas™ control system delivers robust performance in a simple and intuitive package. A 4.3-in (10.9-cm) color touchscreen displays everything you need to bale and allows operators to enter field statistics to track bales per hour and average bale size. Optional features include ability to see bale shape on the display as well as real-time moisture readings.

Camless wide pickup

The 504R Premium comes equipped with a 60-in (152.4-cm) camless wide pickup. This pickup has minimal moving parts to help minimize maintenance and parts costs.

3-year pickup warranty

A 3-year pickup warranty covering internal components and parts and labor assures operators their baler is built to last. *Does not include teeth or hardware for teeth.

Specifications

Compare Models
  • Bale Size

    • Bale Diameter 60 in 152.4 cm
    • Bale Width 47 in 119.4 cm
    • Bale Weight 2000 lbs 907.2 kg
  • Dimensions and Weights

    • Length - Standard 156 in 396.2 cm
    • Length (With Net) 173 in 439.4 cm
    • Length (With Ramp) 169 in 429.3 cm
    • Width - Standard 99.5 in 252.7 cm
  • Bale Forming Chamber

    • Type of Chamber Variable
    • Drive Roller Size Two 4.78” (12.1 cm) diameter, rubber coated, with 1.9” (4.9 cm) round bearings
    • Idler Roller Size 3.5 in 8.9 cm
    • Start Roller Size 4.5 in 11.4 cm
    • Number of Plys Goodyear G315 (Rockbelt)
    • Width of Belt 6.8 in 17.3 cm
    • Number of Belts 6
    • Type of Lace Alligator® Rivet
    • Length of Belt - Long 465 in 1181.1 cm
    • Length of Belt - Short 455 in 1155.7 cm
  • Drive System

    • Driveline 80 deg CV, 540 RPM Extended lube
    • Roller Chain Single 60 and 80
    • Torque Protection - Main Input Shaft Friction clutch
    • Torque Protection - Pick-up Radial pin clutch
    • Bearing and Sprocket Configuration Round draft shafts and bearings
  • Tractor Requirements

    • Horsepower Required 55 hp 41 kw
    • Horsepower Recommended 65 hp 48.5 kw
  • Wide Pickup

    • Width (Tooth to Tooth) 60 in 152.4 cm
    • Width (On Outside Flair) 68.5 in 174 cm
    • Tooth Bars 5
    • Number of Teeth (60) steel coil with 2.83 in (7.2 cm) spacing
    • Stripper Band Diameter 12.6 in 32 cm
    • Drive Single 60
    • Floatation Gauge wheels 4.80-16 HD semi-pneumatic with spring assist
    • Pickup Lift Hydraulic standard
  • Standard Details

    • Bale Formation Open throat rotor feed to vertical camber, hydraulic/spring
    • Monitor/Controller Atlas Control System
    • Machine Adjustments Adjustable guage wheel height, Adjustable hydraulic bale density control
    • Miscellaneous Drop 'n Go bale ejection, Hitch pin with retention system, SMV sign/tail lights, Moisture sensors, Pickup lift- hydraulic (replaces manual crank), Grease banks, 3 -year pickup warranty
    • Tailgate Cylinders Hydraulic
    • Tire Size - Standard 31 x 13.5 - 5 tires
  • Optional Features - Twine Tie System

    • Feed Mechanism Single arm applying two twines
    • Twine Tension Adjustable spring loaded tension plates
    • Twine Storage 4 balls
  • Optional Features - Netwrap System

    • Feed Mechanism Friction pan onto main belts
    • Net Tension Brake system varies tension to maximize bales per roll of net
    • Net Width Capable of standard and over width netwrap
    • Net Storage 1 extra roll
  • Optional Features

    • Tires - Optional Tires- 480/45 R17 flotation
    • Safety Equipment Fire extinguisher, safety chain
    • Miscellaneous Endless belts
    • Work Lights Work lights - set of three flood lights

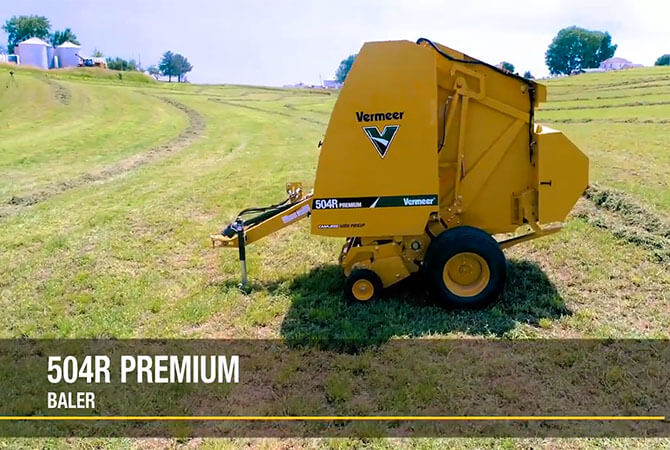

See it in action
