For part-time farmers looking for a full-time baler.

Find A Dealer Request More Info

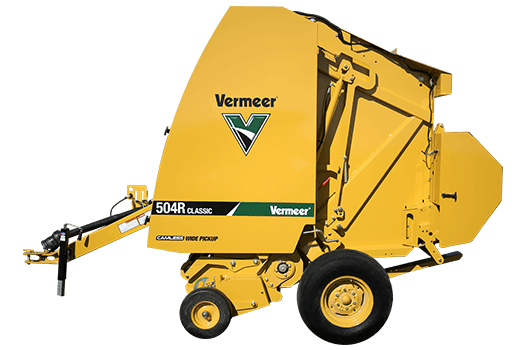

Only put up a limited number of bales a year? The Vermeer 504R Classic baler is designed for part-time operators who want good value in a dependable baler. A wide pickup and optional bale shape sensors make baling easier and with minimal setup and adjustments required, you’ll feel like you’ve been baling with it forever. A camless pickup and heavy-duty components maximize durability for prolonged machine life. And considering the price and the 3-year pickup warranty, the longer you bale with it, the better deal it can become.

For part-time farmers looking for a full-time baler.

Only put up a limited number of bales a year? The Vermeer 504R Classic baler is designed for part-time operators who want good value in a dependable baler. A wide pickup and optional bale shape sensors make baling easier and with minimal setup and adjustments required, you’ll feel like you’ve been baling with it forever. A camless pickup and heavy-duty components maximize durability for prolonged machine life. And considering the price and the 3-year pickup warranty, the longer you bale with it, the better deal it can become.

Find A Dealer Request More Info

Features & Benefits

Camless pickup

The Vermeer camless pickup comes standard on the 504R Classic baler. Built with fewer moving parts, this camless pickup allows you to get the job done when you have time to put up hay and minimize parts cost when it is time for routine maintenance.

Atlas control system

The Atlas™ control system delivers robust performance in a simple and intuitive package. A 4.3-in (10.9-cm) color touchscreen displays everything you need to bale and allows operators to enter field statistics to track bales per hour and average bale size. Optional features include ability to see bale shape on the display as well as real-time moisture readings.

Low recommended PTO horsepower

Tractors just don’t run balers. That is why we designed a baler to fit your tractor. With a low recommended PTO horsepower of 50 hp (37.3 kW), the 504R Classic will run with most part-time operators' tractors.

3-year pickup warranty

Operators can rest assured with a 3-year pickup warranty covering internal components and parts and labor on the 504R Classic baler. Does not include teeth or hardware for teeth.

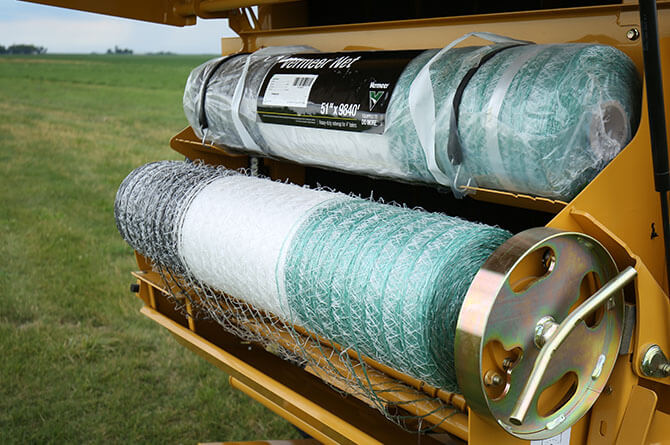

Optional netwrap system

Using netwrap helps to reduce hay loss compared to twine and keep the shape and structure of your bales during storage.

Specifications

Compare Models
Show Metric
  • Bale Size

    • Bale Diameter 36 in - 60 in (91.4 cm - 152.4 cm)
    • Bale Width 47 in 119.4 cm
    • Maximum bale weight 1000 lbs 453.6 kg
  • Dimensions and Weights

    • Length standard 156 in 396.2 cm
    • Length with net 173 in 439.4 cm
    • Length with ramp 169 in 429.3 cm
    • Height 107 in 271.8 cm
    • Width with standard tires 100 in 254 cm
    • Tires Standard - 11L-15; Optional - 31 x 13.5-5
    • Weight fully optioned 5260 lbs 2385.9 kg
  • Bale Forming Chamber

    • Drive Roller Size 4.78 in (12.1 cm)
    • Idler roller size 3.5 in (8.9 cm)
    • Start Roller Size 4.5 in 11.4 cm
    • Belt Type Standard mini rough top
    • Number of Belts 5
    • Width of Belt 6.8 in 17.3 cm
    • Length of belt (long) 465.5 in 1182.4 cm
    • Length of belt (short) 455.5 in 1157 cm
    • Type of Lace Alligator rivet
  • Drive System

    • Driveline 540 rpm, standard lube, radial pin clutch
    • Torque protection pickup Radial pin clutch
    • Roller chains Single 60
    • Bearing and Sprocket Configuration Round drive shafts and bearings
  • Tractor Requirements

    • PTO horsepower minimum 40 hp 29.8 kw
    • PTO horsepower recommended 50 hp 37.3 kw
  • Pickup

    • Pickup type Camless wide
    • Width tooth to tooth 60 in 152.4 cm
    • Tooth Bars 4
    • Number of Teeth (48) double steel coil
    • Teeth spacing 2.83 in (7.2 cm)
    • Stripper bands Steel
    • Flotation Optional gauge wheels 4.8-16 HD semi-pneumatic with spring assist
    • Pickup Lift Manual standard, hydraulic optional
    • 3-year pickup warranty Standard
  • Control system

    • Control system type Atlas™ control system
    • Display 4.3 in (10.9 cm) color touch screen
    • Field Statistics 10 fields
    • Bale shape indicators Optional
    • Moisture Optional - up to 27%
    • Bales per hour Standard
  • Density

    • Bale density adjustments Standard manual through hydraulic relief valve
    • Density readings Optional physical gauge
  • Bale tie system

    • Twine system Optional
    • Netwrap system Optional
    • Net tension control via mechanical adjustment
    • Extra roll storage Standard
  • Features

    • Bale ramp Optional spring-loaded
    • Fire extinguisher, safety chain Optional

See it in action

Video 3
Video 2
Video 1
Image 1
Image 2
Image 3
Image 5
Image 6
Image 7
Image 8

Talk to a Vermeer Dealer Today

From helping you select the right equipment, to training operators, to providing the parts and service you need on a jobsite or in the field, Vermeer dealers will give you the localized support you're looking for.

* Required field
*
*
*
*
*
*
*
*
*
I have read and agree to this notice of personal information processing. *
I am 18 years or older. *
I confirm I have read and agree to the Vermeer Privacy Policy and conditions of use. *
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Current Special Offers

0% interest for up to 60 months or cash back on select models

0% interest for up to 60 months or cash back on select models

Now through June 30, 2023, qualified buyers can receive 0% interest for up to 60 months or cash back on the purchase of select new Vermeer 504 R-series balers.
See the offer

More about the Vermeer 504R Classic baler

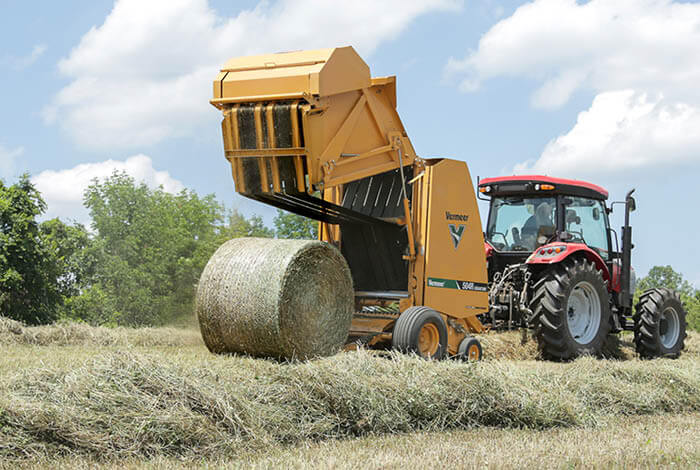

An all-star lineup of high-performance balers
