Baleage on the move

Find A Dealer Request More Info

The new Vermeer SBW-series single bale wrappers allow producers to wrap high-moisture bales in individually wrapped, high-nutrition packages. Ideal for small- to mid-size operations, the SBW8500 is designed to boost production output and enhance operator convenience. With more convenient features than the other single bale wrappers, the SBW8500 can handle 5.2-ft x 5-ft (1.6-m x 1.5-m) bales up to 3300 lb (1496.9 kg).

Baleage on the move

The new Vermeer SBW-series single bale wrappers allow producers to wrap high-moisture bales in individually wrapped, high-nutrition packages. Ideal for small- to mid-size operations, the SBW8500 is designed to boost production output and enhance operator convenience. With more convenient features than the other single bale wrappers, the SBW8500 can handle 5.2-ft x 5-ft (1.6-m x 1.5-m) bales up to 3300 lb (1496.9 kg).

Find A Dealer Request More Info

Features & Benefits

In-cab electronic control system

A new in-cab electronic control system features a color touchscreen that provides an automated wrapping process and access to real-time field statistics.

Ground bracing

Ground bracing helps steady the load while the bale discharge system pivots up to cradle the bale and releases it at a low drop point which minimizes damage to the package.

Durable loading arm

A durable loading arm guides and positions the bale gently onto the wrapping table. While wrapping, the SBW8500 can carry a second bale on the loading arm during the wrapping process for increased operating efficiency. The loading arm can then be quickly folded for transport.

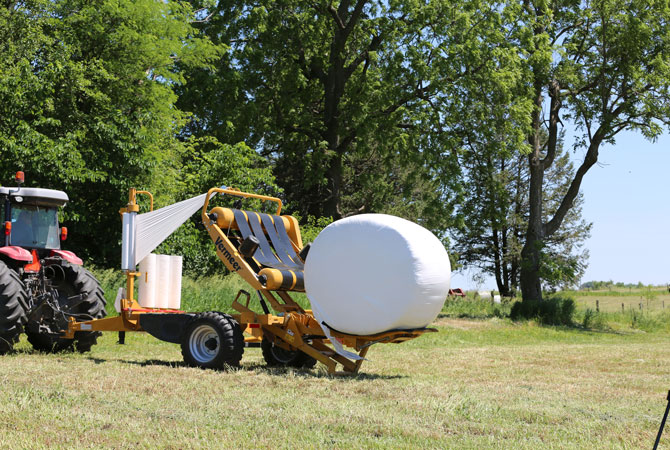

Active bale discharge system

As soon as the wrapping table tips backward, the active bale discharge system is triggered. As the finished bale is being lowered to the ground, a cut-start system neatly slices the film and secures it for the start of the next wrapping cycle.

Optional end tip feature

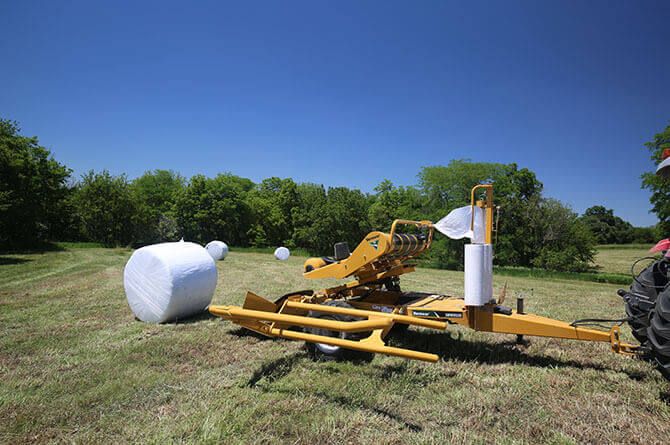

The optional end tip feature on the SBW8500 gently tips the wrapped bale when unloading so it sits on its end, making it ready for easier stacking.

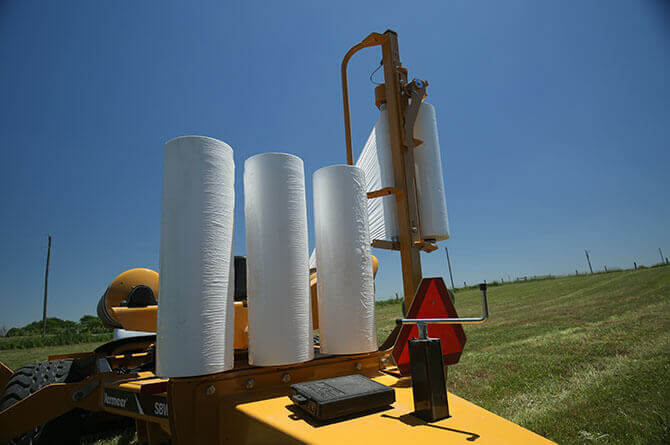

Increased on-machine bale storage

The ability to store three rolls of plastic film on the machine allows the operator to be productive and stay in the field while it is time to wrap. The storage stays clear of machine operation but provides easy access when it is time to reload.

Specifications

Compare Models
Show Metric
  • Dimensions and Weights

    • Transport Length 19 ft 5.8 m
    • Transport Height 9 ft 2.7 m
    • Transport Width 7.4 ft 2.3 m
    • Machine weight 4600 lbs 2086.5 kg
    • Tires 380/55 x 17
  • Specifications

    • PTO horsepower recommended 55 hp 41 kw
    • Hydraulics 1 single acting, return to tank
    • Hydraulic flow rate 6 gpm - 8 gpm (23 L/min - 30 L/min)
    • Control System Digital controller with 4.3-in (10.9-cm) color touch screen and keypad
    • Hitch Drawbar
    • Film Stretcher 55% or 70%
    • Bale size maximum (diameter x width) 5.2 ft x 5 ft (1.6 m x 1.5 m)

See it in action

Image 1
Video 2
Image 2
Image 3
Image 4
Image 5
Image 6

Talk to a Vermeer Dealer Today

From helping you select the right equipment, to training operators, to providing the parts and service you need on a jobsite or in the field, Vermeer dealers will give you the localized support you're looking for.

* Required field
*
*
*
*
*
*
*
*
*
I have read and agree to this notice of personal information processing. *
I am 18 years or older. *
I confirm I have read and agree to the Vermeer Privacy Policy and conditions of use. *
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

More about the Vermeer SBW8500 bale wrapper

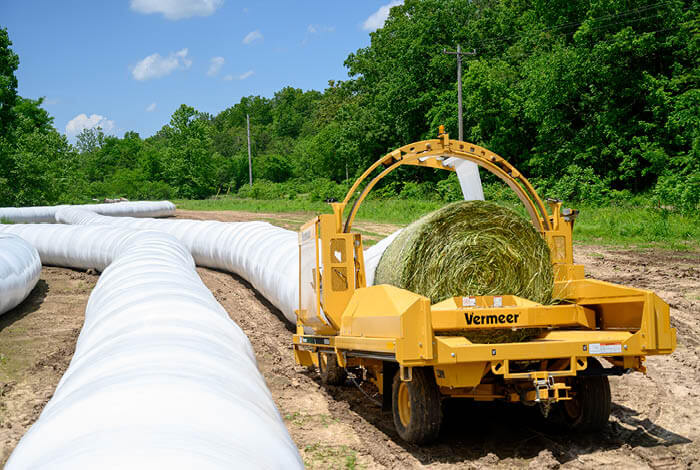

Inline vs. individual wrappers

Inline vs. individual wrappers

Considering bale wrapping? There are a lot of factors to consider before investing in bale wrapping for the first time.

Read more

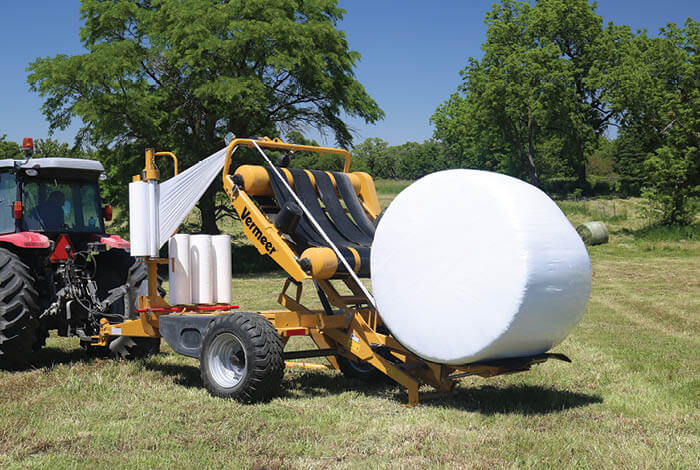

Baleage Q&A: Will it work for me?
