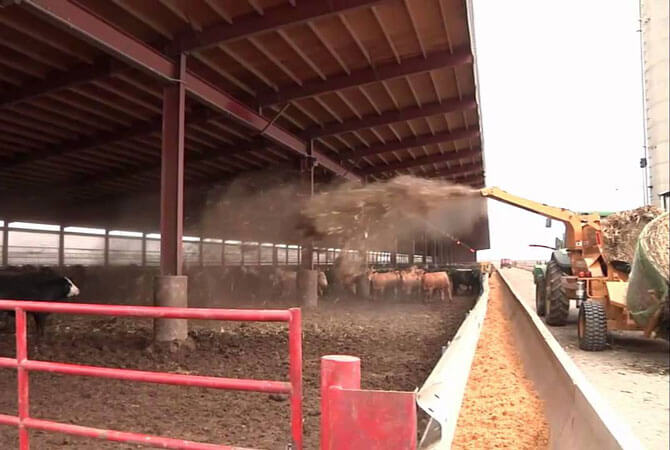

The Catapult® CPX9000 bale processor is a machine that offers power, versatility and easy operation. The Catapult processor allows material to be thrown 60 ft - 100 ft (18.3 m - 30.5 m), whether that be up and over feed bunks in a cattle operation or for land reclamation and erosion control purposes. Hydraulic controls make this machine easy to use, giving operators the ability to choose how the spout is angled and how the crop is distributed. The Catapult processor is available only at participating dealers.

Go the distance.

The Catapult® CPX9000 bale processor is a machine that offers power, versatility and easy operation. The Catapult processor allows material to be thrown 60 ft - 100 ft (18.3 m - 30.5 m), whether that be up and over feed bunks in a cattle operation or for land reclamation and erosion control purposes. Hydraulic controls make this machine easy to use, giving operators the ability to choose how the spout is angled and how the crop is distributed. The Catapult processor is available only at participating dealers.

Find A Dealer Request More Info

Features & Benefits

Smooth material feeding

Optimizing productivity, the Catapult processor provides smooth material feeding by adjusting the feed rate of the bale chain bed to maintain a proper load and PTO RPM on the tractor.

Consistent material flow

Direct feed from a dual fan air circulation system provides consistent material flow from the tub to the spout, reducing inconsistent material flow common with non-direct feed systems.

Replaceable, abrasive-resistant steel liners

Replaceable, abrasive-resistant steel liners provide durability, especially needed when processing contamination-filled material like cornstalks.

Optional hydraulic cut control bar kit

Adjust cut control bar position from the tractor cab with the optional hydraulic cut control bar kit. Use the hydraulically controlled adjustment alone, or in conjunction with the reversible slat and chain bed bale rotation to help mitigate tough processing conditions.

Specifications

Compare Models
Show Metric
  • Dimensions and Weights

    • Length 15.6 ft 4.8 m
    • Height 10 ft 3 m
    • Transport Width 8.4 ft 2.6 m
    • Working Width 19.8 ft 6 m
    • Weight 7460 lbs 3383.8 kg
    • Drawbar Weight 2500 lbs 1134 kg
    • Axle adjustment 12 in (30.5 cm) each axle
    • Tires 16L-16.1SL 6 SofTrac II
  • Tractor Requirements

    • PTO horsepower minimum 110 hp (82 kW) with automatic bale feed; Without automatic bale feed, use recommended PTO horsepower
    • PTO horsepower recommended 150 hp 111.9 kw
    • PTO horsepower maximum 210 hp 156.6 kw
    • PTO speed 1000 rpm
    • Hydraulic Type 2 double-acting
    • Hydraulics Pressure 2000 psi 137.9 bar
    • Hydraulic flow rate 8 gpm 30.3 L/min
  • Tub

    • Bale rotation 3 roller chains with bolt-on cross slat
    • Bale size capacity (2) bales, 6 ft x 5 ft (1.8 m x 1.5 m)
    • Bale weight capacity 2500 lbs 1134 kg
  • Processing System

    • Cut Control Bar Adjustment Hand lever with 5 settings
    • Cut Control Bar Quantity 7
    • Flail description 7/16 in x 5-9/16 in (1.1 cm x 14.1 cm) in tempered spring
    • Flail Drum Diameter 26.8 in 68.1 cm
    • Flail Drum Length 78 in 198.1 cm
    • Flail Drum Speed 1000 rpm
    • Flail Drum Quantity 30
  • Discharge System

    • Discharge Direction Right and left hand, a 260-deg rotation
    • Blower (2) 38.6 in (98 cm) blower fans (1500 rpm front and 1000 rpm rear)
    • Fan speed - front 1500 rpm
    • Fan speed - rear 1000 rpm
    • Horizontal spread distance Up to 100 ft (30.5 m)
  • Features

    • Safety Chain Optional
    • Torque Protection - Driveline 2 shear hubs
    • Material containment kit Optional
    • Powered sidewall Standard
    • Automatic bale feed system Standard
    • Camera kit Optional
    • High-wear resistance liner Optional

See it in action

Image 1
Video 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
