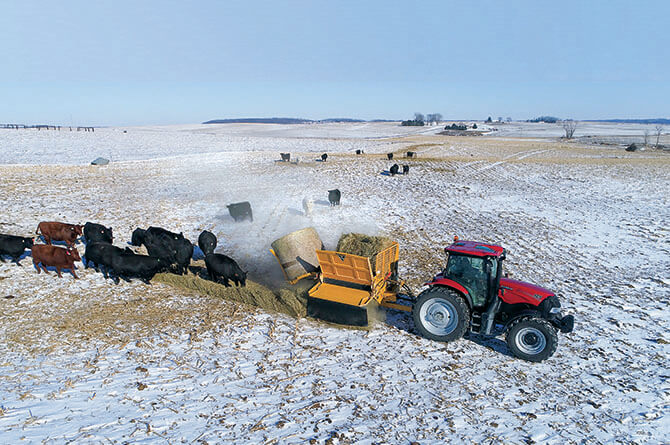

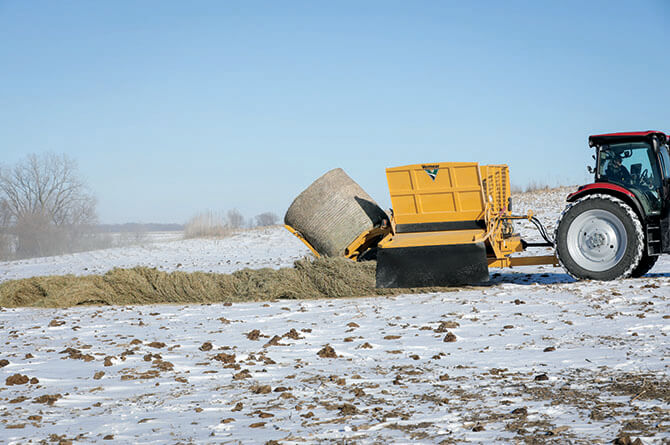

Meet the BPX9010 bale processor. Distribute a consistent, uniform windrow of crop along the bunk line or out in the pasture. Or spread bedding with consistency and accuracy at ranges up to 50 ft (15.2 m). This workhorse combines simplicity, durability and versatility — an all-around processor ready to perform a variety of applications.

Simple process, tough processor.

Meet the BPX9010 bale processor. Distribute a consistent, uniform windrow of crop along the bunk line or out in the pasture. Or spread bedding with consistency and accuracy at ranges up to 50 ft (15.2 m). This workhorse combines simplicity, durability and versatility — an all-around processor ready to perform a variety of applications.

Find A Dealer Request More Info

Features & Benefits

Versatile bale processing

The BPX9010 bale processor has the versatility to process square bales with the optional powered sidewall kit and optional straight fork kit.

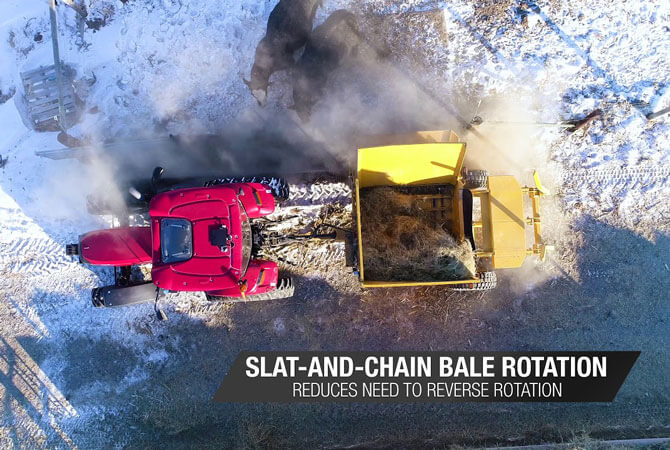

Slat and chain bale rotation design

The slat and chain bale rotation design feeds the bale consistently into the rotor – reducing the need for reverse rotation.

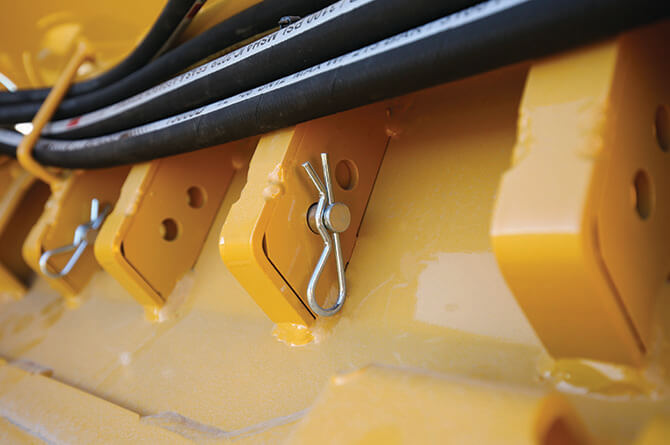

Toolless cut control bar design

The new toolless cut control bar design allows dual adjustments for increased aggression easily accessible from outside the machine. Ten different settings allow producers to be in control of processing speed and material size.

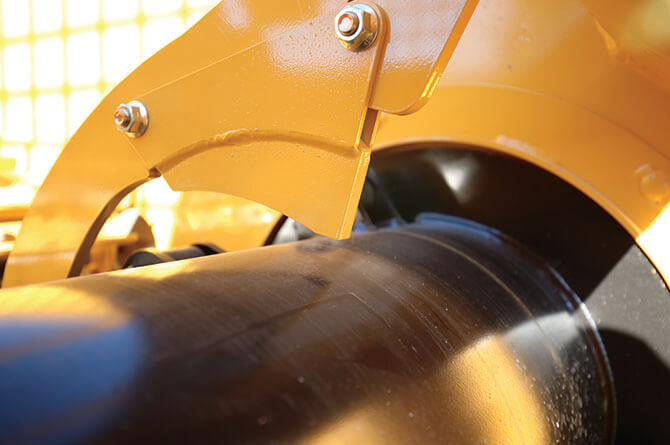

Rotor cleaner attachment

The rotor cleaner attachment on the cut control bar can be set to the self-cleaning position to help reduce excessive net and twine on the rotor, or set to the manual clean position to help minimize the amount of net or twine mixed in the feed.

Vertical bale lift system

A vertical bale lift system makes it more efficient to load bales and reduce stress on the machine. Plus, the robust T-style tongue frame has no welds or gussets at high stress points and is bolted high on the tub.

Offset rotor

An offset rotor pulls material through for more consistent feeding and helps prevent uncontrolled fall-through from slowing down the machine. Process whole bales of varying shapes (with a powered sidewall kit) and qualities to produce uniform windrows, hit tight spots along the bunk line or spread evenly up to 50 ft (15.2 m) for bedding.

Specifications

Compare Models
  • Dimensions and Weights

    • Length 15.8 ft 4.8 m
    • Height 8.5 ft 2.6 m
    • Transport Width 8.2 ft 2.5 m
    • Working Width 11.2 ft 3.4 m
    • Weight 5240 lbs 2376.8 kg
    • Drawbar Weight 1480 lbs 671.3 kg
    • Axle adjustment 12 in (30.5 cm) each axle
    • Tires Standard: 14L x 16.1FL; Optional: 16.5L -16.1SL 6 SofTrac II flotation tire
  • Tractor Requirements

    • PTO horsepower minimum 85 hp (63 kW)
    • PTO horsepower recommended 100 hp 74.6 kw
    • PTO horsepower maximum 210 hp 156.6 kw
    • PTO speed 1000 rpm
    • Hydraulic Type 3 double-acting (2 double-acting with optional kit)
    • Hydraulics Pressure 2000 psi 137.9 bar
    • Hydraulic flow rate 8 gpm 30.3 L/min
  • Tub

    • Bale rotation 3 roller chains with bolt-on cross slat
    • Bale size capacity (2) bales, 6 ft x 5 ft (1.8 m x 1.5 m)
    • Bale weight capacity 2500 lbs 1134 kg
  • Processing System

    • Cut Control Bar Adjustment Hand lever with 5 settings, plus an additional high/low setting
    • Cut Control Bar Quantity 7
    • Flail description 7/16 in x 5-9/16 in (1.1 cm x 14.1 cm) in tempered spring
    • Flail Drum Diameter 26.8 in 68.1 cm
    • Flail Drum Length 78 in 198.1 cm
    • Flail Drum Speed 1000 rpm
    • Flail Drum Quantity 30
  • Discharge System

    • Discharge Direction Right hand
    • Horizontal spread distance Up to 50 ft (15.2 m)
  • Features

    • Safety Chain Optional
    • Torque Protection - Driveline Shear bolt
    • Scale kit Optional
    • Material containment kit Optional
    • Powered sidewall Optional
    • Square bale kit Optional
    • Front discharge curtain Optional

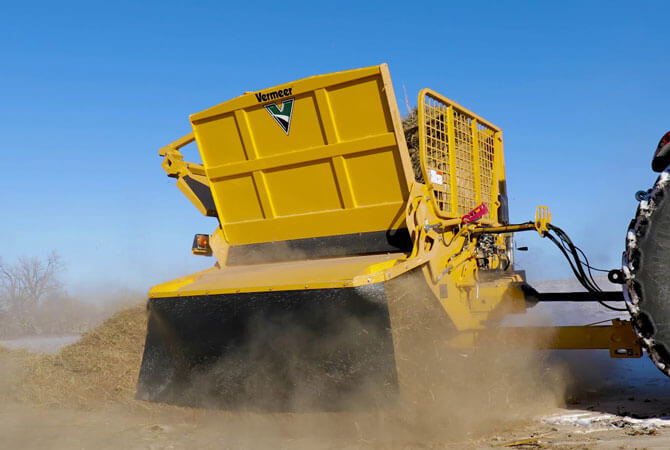

See it in action

Talk to a Vermeer Dealer Today

From helping you select the right equipment, to training operators, to providing the parts and service you need on a jobsite or in the field, Vermeer dealers will give you the localized support you're looking for.

* Required field
*
*
*
*
*
*
*
*
*
I have read and agree to this notice of personal information processing. *
I am 18 years or older. *
I confirm I have read and agree to the Vermeer Privacy Policy, terms and conditions. *
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Current Special Offers

$0 down, 0% interest* and 0 payments until August 1, 2021

$0 down, 0% interest* and 0 payments until August 1, 2021

For a limited time only, customers can take advantage of $0 down, 0% interest * and 0 payments due until August 1, 2021.
See the offer
0% financing for up to 60 months or cash back on select models

0% financing for up to 60 months or cash back on select models

Now, through April 30, 2021, qualified buyers can receive 0% interest for up to 60 months, 1.9% for up to 72 months or cash back on the purchase of select new Vermeer forage equipment.
See the offer

More about the BPX9010 bale processor

Does a bale processor make sense for your operation?

Does a bale processor make sense for your operation?

For many years, livestock producers have embraced the use of bale processors for a lot of different reasons. However, there are very few studies that have evaluated them with a cost analysis in order to track the value they provide to owners.

Read more

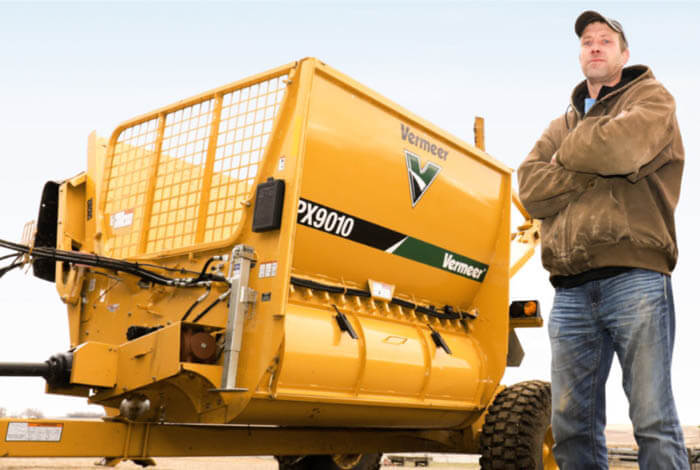

Why Brad Pollema switched to the Vermeer BPX9010 bale processor

Why Brad Pollema switched to the Vermeer BPX9010 bale processor

Brad Pollema dreamt of spending his life feeding cattle since he was a young boy. To get the job done, the Pollemas regularly use a bale processor, but they needed an upgrade.

Read more

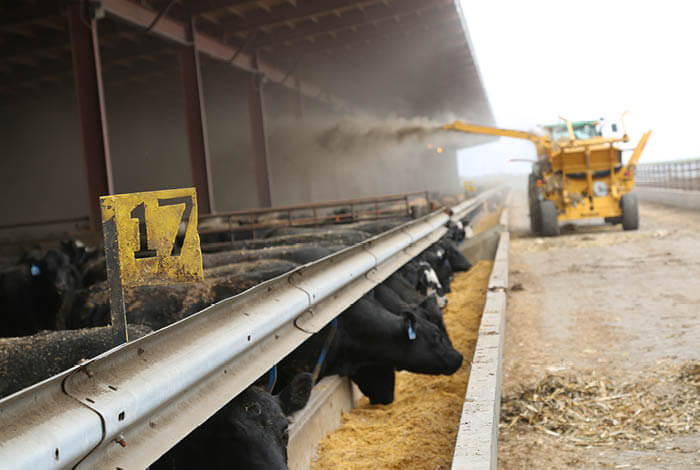

Best bedding practices
