Available only through select Vermeer dealers for sale into less-emission regulated countries.

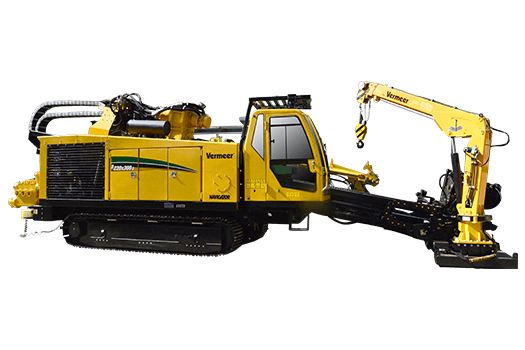

Whether you’re working in tough rural terrain or in a congested urban setting, help conquer your jobsite with the D220x300S Navigator® horizontal directional drill. With its maximum thrust/pullback speed of 100,000 kg (220,000 lb), the drill offers contractors the power they need to help maximize their productivity in a variety of ground conditions.

Conqure your jobsite

Available only through select Vermeer dealers for sale into less-emission regulated countries.

Whether you’re working in tough rural terrain or in a congested urban setting, help conquer your jobsite with the D220x300S Navigator® horizontal directional drill. With its maximum thrust/pullback speed of 100,000 kg (220,000 lb), the drill offers contractors the power they need to help maximize their productivity in a variety of ground conditions.

Find A Dealer Request More Info

Features & Benefits

Climate-controlled cab

The climate-controlled cab enhances operator comfort and provides protection from the weather, reducing operator fatigue.

Open-top vise

Open-top vise design allows for removing and adding tooling.

Dual-pivot rack

The dual-pivot rack allows for rack entry angles from 10 degrees to 24 degrees, to help maximize the versatility of the rig for various product pipes and jobsite terrains.

Optional single-row, sliding-arm rod loader

Choose the optional single-row, sliding-arm rod loader which allows for the staging of five rods, helping increase boring efficiency by minimizing rod-loading time.

Optional crane

Choose the optional telescoping crane to help reduce the amount of support equipment needed onsite.

Optional onboard drilling fluid pump

The optional onboard drilling 1136 L/min (300 gpm) fluid pump provides a self-contained drilling system. For larger projects, the onboard pump can be used in combination with a stand-alone pump if additional fluid flow is required.

Specifications

Compare Models
  • General Dimensions and Weights

    • Length (Minimum Transport) 462 in 1173.5 cm
    • Width (Minimum Transport) 90 in 228.6 cm
    • Height (Minimum Transport) 116.4 in 295.7 cm
    • Weight 63900 lbs 28984.6 kg
  • Engine

    • Make and Model Xi'an Cummins QSM11-400
    • Maximum Engine RPM 2100 rpm
    • Gross Horsepower 400 hp 298.3 kw
    • Emissions rating Tier 2
  • Operational

    • Thrust 220000 lbs 978.6 kN
    • Pullback 220000 lbs 978.6 kN
    • Maximum Spindle Torque (Low at Maximum Engine RPM) 30000 ft-lb 40674.6 Nm
    • Maximum Spindle Torque (Medium at Maximum Engine RPM) 22788 ft-lb 30896.4 Nm
    • Maximum Spindle Torque (High at Maximum Engine RPM) 14000 ft-lb 18981.5 Nm
    • Maximum Spindle Speed at Max Engine RPM 140 rpm
    • Maximum Ground Drive Speed at Maximum Engine RPM 1.6 mph 2.6 km/h
    • Automated Rod Loader Optional
  • Fluid Capacities

    • Fuel Tank 156 gal 590.5 L
    • Hydraulic Tank 211 gal 798.7 L
  • Drilling Fluid System Option One

    • Maximum Flow 300 gpm 1135.6 L/min
    • Maximum Pressure 1650 psi 113.8 bar
  • Crane

    • Maximum Lifting Capacity 4410 lbs 2000.3 kg
    • Rotation 270 deg
    • Optional Crane Yes
  • Features

    • Breakout System Standard
    • Drilling Lights Standard
    • Flow Indicator Standard
    • Stakedown System Optional
    • Cab Standard

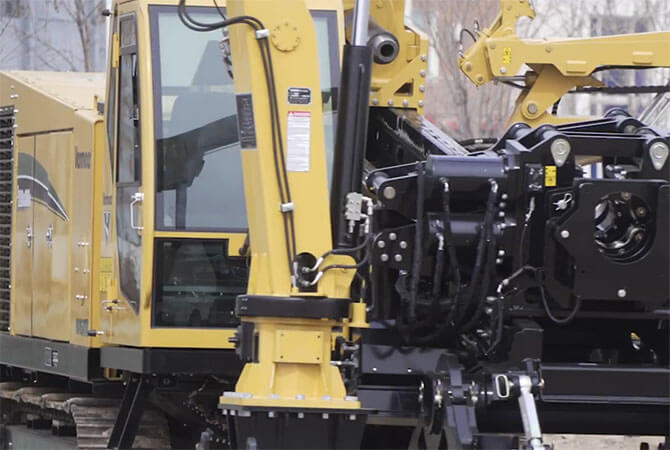

See it in action
