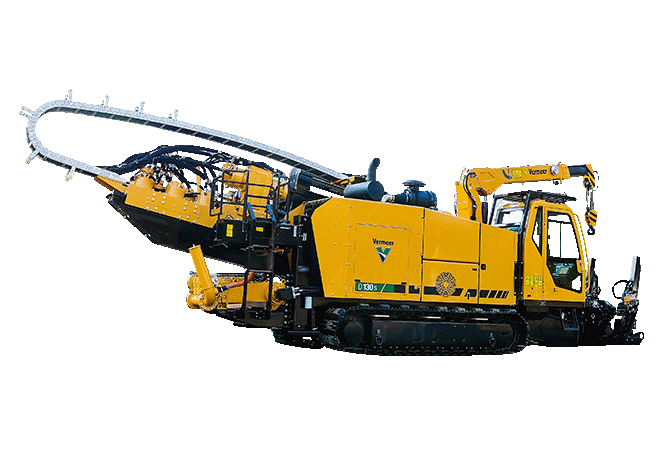

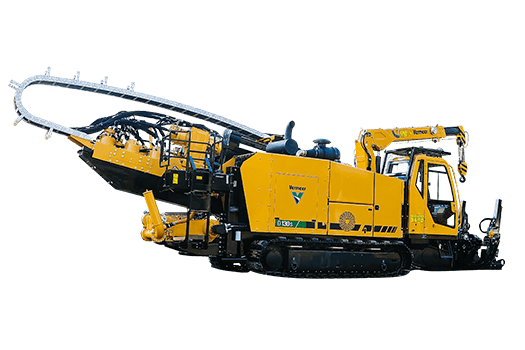

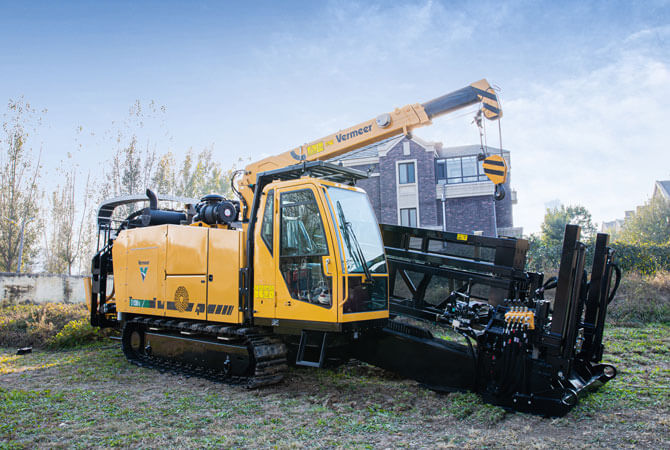

Manufactured in Tianjin, China, with the high-quality parts and components that Vermeer is known for, this new generation of the D130S horizontal directional drill has several enhanced features that allow for high functionality, productivity and ease of use.

This drill allows you to take on challenging, large-diameter drilling projects without worrying about space restrictions. It also keeps surface disruption to a minimum, making it ideal for projects in densely populated residential areas.

A powerful drilling solution for tight, narrow jobsites

Manufactured in Tianjin, China, with the high-quality parts and components that Vermeer is known for, this new generation of the D130S horizontal directional drill has several enhanced features that allow for high functionality, productivity and ease of use.

This drill allows you to take on challenging, large-diameter drilling projects without worrying about space restrictions. It also keeps surface disruption to a minimum, making it ideal for projects in densely populated residential areas. Find A Dealer Request More Info

Features & Benefits

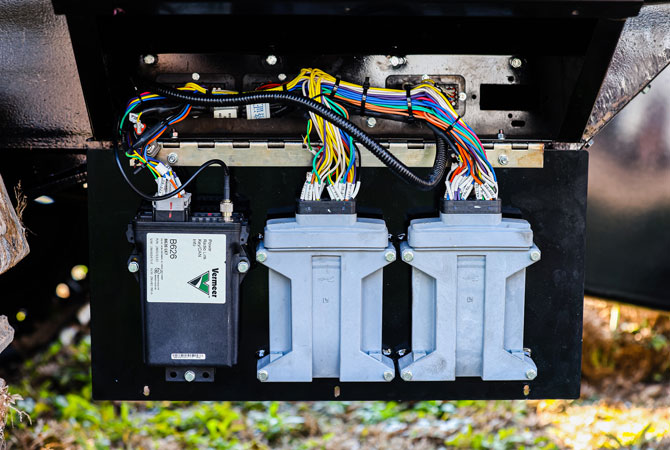

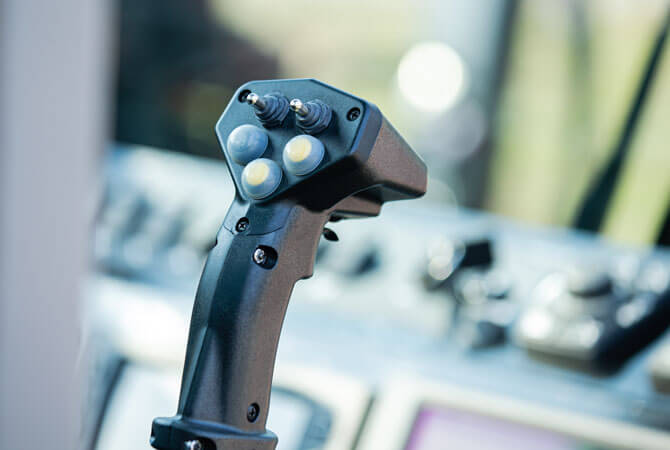

Upgraded Plus+1 control system

For precision and reliability, the control system in the D130S has been upgraded to Plus+1 software. This drill also includes the AutoSteer system, which automates certain drill head motions, helping you to set and adjust rotation duration and direction while maintaining a preset thrust pressure to get through hard ground conditions, which enables drilling consistency. To top it off, the updated console design helps provide a seamless, user-friendly bore path adjustment experience for the operator.

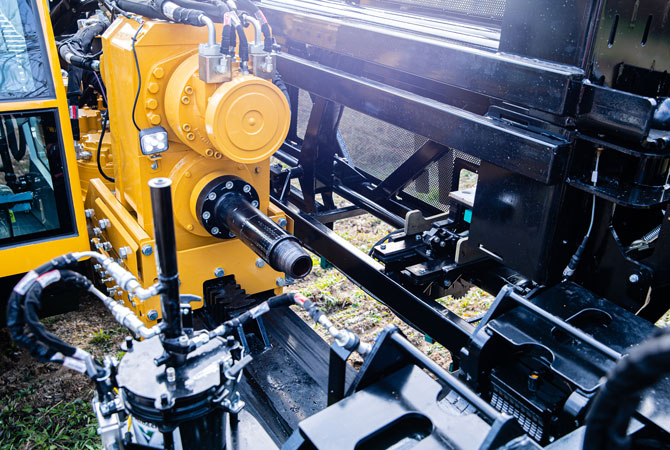

Operator-controlled rod loader

The operator-controlled rod loader helps reduce the labor involved with manually loading and unloading drill rod and increases overall drilling efficiency. The stackable rod box (holding nine rods per rod box) also facilitates high productivity by enabling a full set of rods to be loaded into the machine with the push of a button.

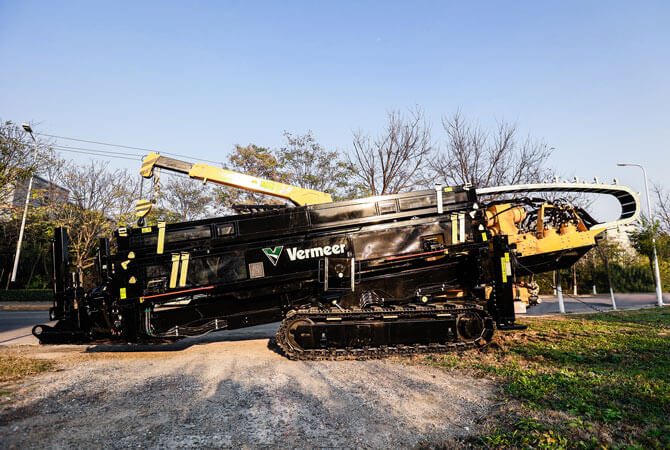

Compact footprint and ease of transport

Machine maneuverability is key to navigating tight, narrow jobsites. With a length of 33.5 ft (10.2 m) and width of 8.2 ft (2.5 m), the self-contained, compact design of the D130S allows for convenient transportation, navigability and minimized set-up time.

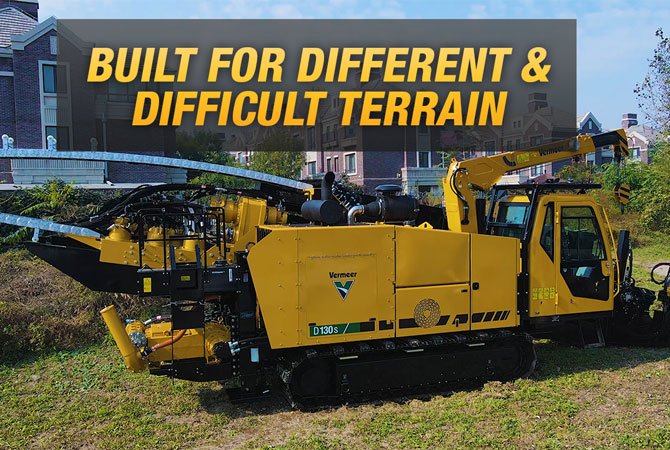

High-powered rotational torque and thrust

Consisting of 130,000 lb (578,200 kN) of thrust and pullback and 15,000 ft-lb (20,337 Nm) of rotational torque, the D130S is able to penetrate through different and difficult terrains efficiently and effectively.

Climate-controlled cab and hassle-free machine upkeep

Maximize operational comfort with the climate-controlled cab. It provides the operator protection from various weather conditions, thus maximizing overall productivity. The updated engine hood industrial design of the D130S facilitates hassle-free machine maintenance, so the operator can quickly access various machine components to conduct maintenance checks.

Optional crane

Lesser support equipment is required onsite with the choice of a telescoping crane, thus freeing up more working space. This option can help improve jobsite productivity by aiding rod box load/unload and maneuvering large tooling on the rig side.

Optional front-mounted stakedown system

Cut down on setup time and the number of materials needed with our optional rotary auger-style stakedown.

Specifications

Compare Models
Show Metric
  • General Dimensions and Weights

    • Length (Minimum Transport) 411.6 in 1045.5 cm
    • Width (Minimum Transport) 98.4 in 249.9 cm
    • Height (Minimum Transport) 129.6 in 329.2 cm
    • Height (With Cab) 130.8 in 332.2 cm
    • Weight 46600 lbs 21137.4 kg
    • Angle of Approach 16 deg
  • Engine

    • Make and Model Dong Feng Cummins (QSB6.7-C260)
    • Maximum Engine RPM 2200 rpm
    • Idle Speed 900 rpm
    • Rated RPM 2200 rpm
    • Gross Horsepower 260 hp 193.9 kw
  • Operational

    • Thrust 130100 lbs 578.7 kN
    • Pullback 130100 lbs 578.7 kN
    • Maximum Carriage Speed at Maximum Engine RPM 82 ft/min 25 m/min
    • Maximum Carriage Speed in Low at Maximum Engine RPM 33 ft/min 10.1 m/min
    • Maximum Spindle Torque (Low at Maximum Engine RPM) 15000 ft-lb 20337.3 Nm
    • Maximum Spindle Torque (Medium at Maximum Engine RPM) 10000 ft-lb 13558.2 Nm
    • Maximum Spindle Torque (High at Maximum Engine RPM) 7500 ft-lb 10168.7 Nm
    • Maximum Spindle Speed (Low at Maximum Engine RPM) 45 rpm
    • Maximum Spindle Speed (Medium at Maximum Engine RPM) 65 rpm
    • Maximum Spindle Speed at Max Engine RPM 95 rpm
    • Maximum Ground Drive Speed at Maximum Engine RPM 2.5 mph 4 km/h
    • Noise Level at Operator's Ear 84.9 dB(A)
    • Guaranteed sound power (CE-rating) 73.7 dB(A)
    • Drill Rack Angle 20 deg
  • Fluid Capacities

    • Fuel Tank 82 gal 310.4 L
    • Hydraulic Tank 108 gal 408.8 L
    • Hydraulic System 108 gal 408.8 L

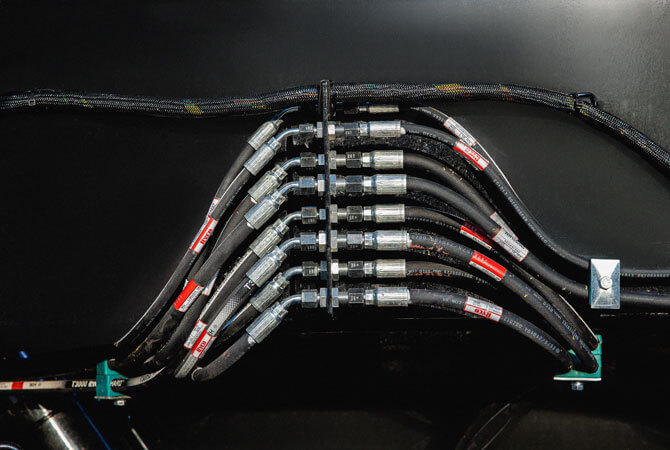

  • Hydraulic System

    • Auxiliary Pump Flow at Maximum Engine RPM 21.6 gpm
    • Auxiliary Pump Relief Pressure 3000 psi 206.8 bar
    • Thrust/Pullback Pump Flow at Max Engine RPM 57 gpm 215.8 L/min
    • Thrust/Pullback Pump Relief Pressure 5000 psi 344.7 bar
    • Rotation Pump Flow at Maximum Engine RPM 57 gpm 215.8 L/min
    • Rotation Pump Relief Pressure 4700 psi 324.1 bar
    • Hydraulic Supply Filter Rating 200 mesh
    • Hydraulic Return Filter Rating 10 mesh

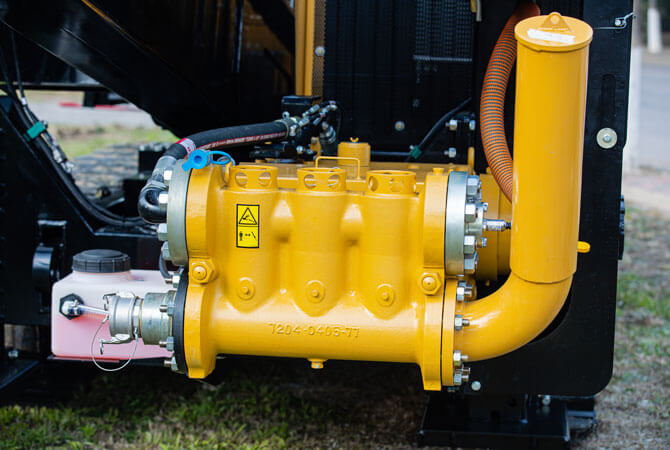

  • Drilling Fluid System Option One

    • Maximum Flow 200 gpm 757.1 L/min
    • Maximum Pressure 1204 psi 83 bar
    • Brand Aplex
  • Crane

    • Maximum Lifting Capacity 7050 lbs 3197.8 kg
    • Maximum Lifting Capacity - Boom Extended/Max Reach 7050 lbs 3197.8 kg
    • Rotation 360 deg
    • Optional Crane Yes
  • Features

    • Breakout System Standard
    • Drilling Lights Standard
    • Flow Indicator Standard
    • Stakedown System Optional
    • Cab Standard
    • Strike Alert Standard
    • Remote Lockout Standard
  • Drill Pipe

    • Drill Rod Thread V-rod
    • Thread Type 3-1/2FSTI
    • Length 20 ft 6.1 m
    • Rod Diameter 3.5 in (8.8 cm)
    • Weight 342 lbs 155.1 kg
